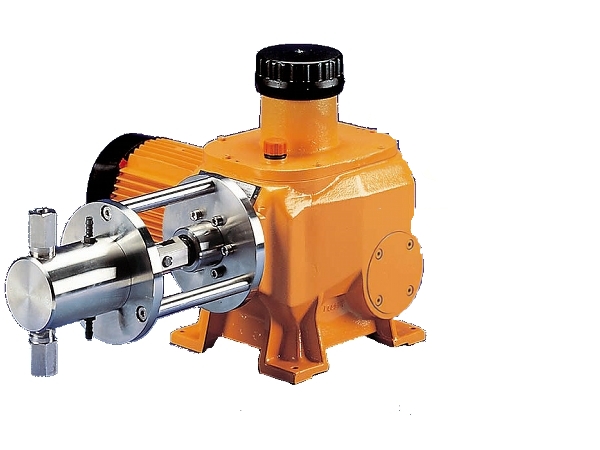

Macro TZ (plunger type)
✔ Medium-capacity plunger-type metering pump suitable for injecting chemicals up to 32.0 MPa
✔ Supports up to 4 series operation with one motor
Features
Compatible with two types of linear diaphragm / plunger
Compatible with PTFE diaphragm type and plunger type for high pressure discharge
We provide the optimum application according to the intended use.
Medium-capacity plunger-type metering pump suitable for injecting chemicals up to 32.0 MPa
Ideal for boiler chemical injection and chemical injection into high pressure processes
Can be replaced with an inverter motor
Supports series operation of up to 4 units with one motor
By connecting the drive cranks, up to 4 units can be operated in series.
Supports pulsation-free operation when triplex is used
Specification
Discharge rate: 0.03 to 15.9 L / min
Discharge pressure: – 32.0 MPa
Discharge reproduction accuracy: ± 0.5% less (based on manufacturer’s recommended conditions)
Standard motor: 3-phase 200V 50 / 60Hz 0.75Kw 4P (Available for cheap increase, pressure resistance explosion proof, inverter motor)
Protection class: IP55 indoor specification
pump size |
Maximum Discharge pressure |
Maximum discharge rate [50Hz] |
Number of strokes [50Hz] |
Maximum discharge rate [60Hz] |
Number of strokes [60Hz] |
Inhalation Lift |
Connection diameter |
Mass | ||
---|---|---|---|---|---|---|---|---|---|---|
[MPa] | [l/h] | [l/min] | [spm] | [l/h] | [l/min] | [spm] | [m] | [Rp] | [kg] | |
320009 | 32.0 | 8.7 | 0.15 | 72 | 10.4 | 0.17 | 86 | 4.0 | Rp 1/4 (8A) | 50 |
320012 | 32.0 | 11.6 | 0.19 | 96 | 13.9 | 0.23 | 115 | 4.0 | Rp 1/4 (8A) | 50 |
320014 | 32.0 | 14.5 | 0.24 | 120 | 17.4 | 0.29 | 144 | 4.0 | Rp 1/4 (8A) | 50 |
320017 | 32.0 | 17.4 | 0.29 | 144 | 20.8 | 0.35 | 173 | 4.0 | Rp 1/4 (8A) | 50 |
320018 | 32.0 | 17.7 | 0.30 | 72 | 21.2 | 0.35 | 86 | 4.0 | Rp 1/4 (8A) | 50 |
320024 | 32.0 | 23.6 | 0.39 | 96 | 28.3 | 0.47 | 115 | 4.0 | Rp 1/4 (8A) | 54 |
320030 | 32.0 | 29.5 | 0.49 | 120 | 35.4 | 0.59 | 144 | 4.0 | Rp 1/4 (8A) | 54 |
313035 | 31.3 | 35.4 | 0.59 | 144 | 42.4 | 0.71 | 173 | 4.0 | Rp 1/4 (8A) | 54 |
192033 | 19.2 | 32.9 | 0.55 | 72 | 39.4 | 0.66 | 86 | 4.0 | Rp 3/8 (10A) | 55 |
192044 | 19.2 | 43.9 | 0.73 | 96 | 52.6 | 0.88 | 115 | 4.0 | Rp 3/8 (10A) | 55 |
192055 | 19.2 | 54.8 | 0.91 | 120 | 65.7 | 1.10 | 144 | 4.0 | Rp 3/8 (10A) | 55 |
168066 | 16.8 | 65.8 | 1.10 | 144 | 78.9 | 1.32 | 173 | 4.0 | Rp 3/8 (10A) | 55 |
113057 | 11.3 | 57.5 | 0.96 | 72 | 69.0 | 1.15 | 86 | 4.0 | Rp 3/8 (10A) | 56 |
113077 | 11.3 | 76.6 | 1.28 | 96 | 91.9 | 1.53 | 115 | 4.0 | Rp 3/8 (10A) | 56 |
113096 | 11.3 | 95.8 | 1.60 | 120 | 114.9 | 1.92 | 144 | 4.0 | Rp 3/8 (10A) | 56 |
096115 | 9.6 | 114.9 | 1.92 | 144 | 137.8 | 2.30 | 173 | 4 | Rp 3/8 (10A) | 56 |
063104 | 6.3 | 104.3 | 1.74 | 72 | 125.1 | 2.09 | 86 | 4 | G 1 1/4 (20A) | 58 |
063139 | 6.3 | 139.0 | 2.32 | 96 | 166.8 | 2.78 | 115 | 4 | G 1 1/4 (20A) | 58 |
063174 | 6.3 | 173.8 | 2.90 | 120 | 208.5 | 3.48 | 144 | 4 | G 1 1/4 (20A) | 58 |
052208 | 5.2 | 208.5 | 3.48 | 144 | 250.2 | 4.17 | 173 | 4 | G 1 1/4 (20A) | 58 |
040163 | 4.0 | 162.9 | 2.72 | 72 | 195.4 | 3.26 | 86 | 4 | G 1 1/4 (20A) | 58 |
040217 | 4.0 | 217.2 | 3.62 | 96 | 260.6 | 4.34 | 115 | 4 | G 1 1/4 (20A) | 58 |
040271 | 4.0 | 271.5 | 4.53 | 120 | 325.8 | 5.43 | 144 | 4 | G 1 1/4 (20A) | 58 |
033326 | 3.3 | 325.8 | 5.43 | 144 | 390.9 | 6.52 | 173 | 4 | G 1 1/4 (20A) | 58 |
028237 | 2.8 | 237.0 | 3.95 | 72 | 284.4 | 4.74 | 86 | 4 | G 1 1/2 (25A) | 62 |
028316 | 2.8 | 315.9 | 5.27 | 96 | 379.0 | 6.32 | 115 | 4 | G 1 1/2 (25A) | 62 |
027395 | 2.7 | 394.9 | 6.58 | 120 | 473.8 | 7.90 | 144 | 4 | G 1 1/2 (25A) | 62 |
022474 | 2.2 | 473.9 | 7.90 | 144 | 568.6 | 9.48 | 173 | 4 | G 1 1/2 (25A) | 62 |
020322 | 2.0 | 322.5 | 5.38 | 72 | 387.0 | 6.45 | 86 | 4 | G 1 1/2 (25A) | 62 |
020430 | 2.0 | 430.0 | 7.17 | 96 | 516.0 | 8.60 | 115 | 4 | G 1 1/2 (25A) | 62 |
020538 | 2.0 | 537.6 | 8.96 | 120 | 645.1 | 10.75 | 144 | 4 | G 1 1/2 (25A) | 62 |
016645 | 1.6 | 645.1 | 10.75 | 144 | 774.1 | 12.90 | 173 | 4 | G 1 1/2 (25A) | 62 |
014475 | 1.4 | 475.1 | 7.92 | 72 | 570.1 | 9.50 | 86 | 4 | G 2 1/4 (40A) | 68 |
014634 | 1.4 | 634.1 | 10.57 | 96 | 760.9 | 12.68 | 115 | 4 | G 2 1/4 (40A) | 68 |
013793 | 1.3 | 792.6 | 13.21 | 120 | 951.1 | 15.85 | 144 | 4 | G 2 1/4 (40A) | 68 |
011951 | 1.1 | 951.1 | 15.85 | 144 | 1,141.3 | 19.02 | 173 | 4 | G 2 1/4 (40A) | 68 |
Wet contact material
Name | Wetting part | Suction / discharge valve | Ball sheet | Valve ball | Plunger |
---|---|---|---|---|---|
SST | Equivalent to SUS316 | Equivalent to SUS316/SCS22※ | Stainless/PTFE※ | Ceramic/SUS316/Hast. C※ | Ceramic |
* Depends on pump size
