Chemical Pump
CM-Y series (Motor driven medium-capacity linearity dosing pump)
Features
Best suited for proportional dosing control by use of control motor
* This pump is designed to keep the discharge linearity at the lowest limit by adopting special type of gear reduction and double-check system at the discharge side. It must be the most suitable for chemical dosing if the input, such as flow rate and water quality, would fluctuate much. In such case, select the proportional dosing control of stroke adjustment by use of control motor.
Refer to Control motor CMK.
Various power source specification
* Various power source motors lined up as standard and semi-standard.
?200V 220V 380V 400V 415V 420V 440V
* Totally-enclosed fan-cooled (TEFC) outdoor flange type motor.
Possible to be equipped with a safety-increase explosion-proof motor, a pressure and explosion-proof motor (coupling connection)
* The pump can be equipped with a safety-increase explosion-proof, a pressure and explosion proof motor, to be used in dangerous condition without anxiety, and with an invertor motor, VS motor, etc. by coupling connection on a common base.
| Discharge pressure | Discharge rate |
|---|---|
| 1.0MPaG (2Y,6Y,10Y,25Y) | 5 to 1,200mL/min (60Hz)?4 to 1,000mL/min (50Hz) |
| 0.7MPaG (45Y,85Y) | |
| 0.5MPaG (120Y) |
Model and specifications
| Model | Discharge rate (mL/min) |
Max. discharge pressure (MPaG) |
Head dia. / Diaphragm dia. (mm) |
Stroke frequency (spm) (Reduction ratio) |
Max. stroke length (mm) |
Motor (W) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| 60Hz | 50Hz | 60Hz | 50Hz | ||||||
| CM-2Y | 5 to 25 | 4 to 20 | 1.0 | φ70 | 18 (1/90) | 15 (1/90) | 3.5 | 0.1 | Approx. 13 (PVC) Approx. 16 (SUS) |
| CM-6Y | 12 to 60 | 10 to 50 | 34 (1/50) | 28 (1/50) | 4.5 | ||||
| CM-10Y | 20 to 100 | 16 to 80 | φ100 | 18 (1/90) | 15 (1/90) | 3.5 | |||
| CM-25Y | 50 to 250 | 42 to 210 | 34 (1/50) | 28 (1/50) | 4.5 | ||||
| CM-45Y | 90 to 450 | 74 to 370 | 0.7 | 61 (1/30) | 51 (1/30) | ||||
| CM-85Y | 170 to 850 | 140 to 700 | 102 (1/16) | 85 (1/16) | |||||
| CM-120Y | 240 to 1200 | 200 to 1000 | 0.5 | 6.0 | |||||
The discharge rate was calculated at discharge pressure of 0.1MPaG, suction head of -0.01MPaAq equivalent to the same pipe diameter as in the pump; and normal temperature using clear water.
Common specifications
| Connection | Hose |
Dia. 6 x 11mm braided soft PVC hose or Dia. 6 x 9mm polyethylene |
|---|---|---|
| Union | R3/8 male screw | |
| Flange | JIS 10K flange, 15A | |
| Motor | Standard | 3-phase, 4P, class E, 60Hz (200, 220V), 50Hz (200V), TEFC outdoor flange type |
| Semi-standard | 7-rated 3-phase, 4P, class E, 60Hz (380, 400, 440V), 50Hz (380, 400, 415, 420V), TEFC outdoor flange type |
|
| Reducer | Planet-gear two-stage combination, lubricated with molybdenum grease | |
| Standard accessories | Hose | Hose x 4m, Foot valve, Check valve, Simple tools, Mounting bolts and nuts (M8 x 30L) x 4 sets, Operating instructions |
| Union | Special water socket (R3/8 x 13A) x 3 pcs, Simple tools, Mounting bolts and nuts (M8 x 30L) x 4 sets, Operating instructions |
|
| Flange | Simple tools, Mounting bolts and nuts (M8 x 30L) x 4 sets, Operating instructions | |
| Color | Munsell 2.5PB 2.5/7 for reducer, Munsell N7 for motor | |
The contents of standard accessories are different for TTT (all Teflon) and 4446 (SUS) of liquid-end.
Standard liquid-end materials
| Part name | VVF | AVF | AV46 | XXU | 4446 | TTT | |
|---|---|---|---|---|---|---|---|
| Applicable chemicals | PAC | Hydrochloric acid, Sulfuric acid, Nitric acid |
Sodium hydroxide, Aluminum sulfate, Ferric chloride |
Polymer flocculants, Sodium hydroxide, Ammonia water |
Slaked lime, Sludge, Powdered activated carbon (solution) |
Organic solvent, Methanol |
Strong acid |
| Pump head | PVC | Acryl | Acryl (SUS RF) |
SUS304 | PTFE | ||
| Diaphragm | PTFE | ||||||
| Connector | PVC | PVC (SUS RF) |
SUS304 | PTFE | |||
| Check ball | FKM | SUS304 | Urethane | SUS304 | PTFE | ||
| Spring | - | SUS316 | - | SUS316 | - | ||
| OO-ring | PTFE | ||||||
| Hose connection | Dia. 6 x 11mm braided soft PVC | Dia. 6 x 9mm PE | Dia. 6 x 11mm braided soft PVC | Dia. 6 x 9mm PE | |||
* Since chemical resistance of material varies according to temperature and concentration of fluid, the above applicable chemicals are basic examples.
* Since there are two kinds of connection hose for VVF combination, for selection, specify a chemical name or hose size to be used.
Viscosity of fluid
Refer to the chart below for transfer high-viscous fluid such as Polymer flocculants.
| Connection | Dia. 6 x 11mm hose | 15A flange | Liquid-end combination |
|---|---|---|---|
| CM-2Y to 10Y | 200mPa.s (cP) max. | 700mPa.s (cP) max. | AV46 |
| CM-25Y | 100mPa.s (cP) max. | ||
| CM-45Y | Not used | ||
| CM-85Y?20Y | 500mPa.s (cP) max. |

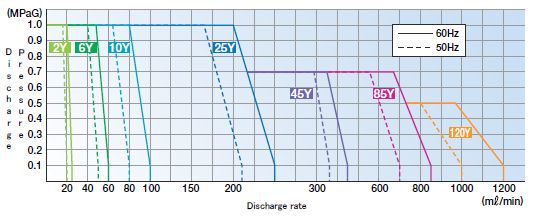

Expected discharge rate chart
The chart below is to indicate expected discharge rates of CM-Y series using clear water. (The expected discharge rates are subject to change according to the chemical solution to be used, solution temperature, pump installing condition, etc.)
* Inform us of the following items when you place an order for CM-G series.
| Model | Chemical to be used | Power source | Connection | Others |
|---|---|---|---|---|
| CM-__Y | Name, concentration, temperature | __V, __-phase, __Hz | Hose diameter or flange | Remark |
