CeramicsM / CeramicsG

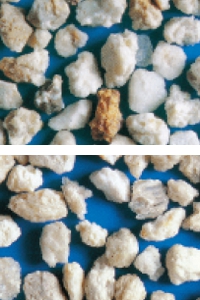

CeramicsM / CeramicsGCeramicsM
?Ceramics M is manufactured by crushing and sieving porous material which is formed by difference of expansion ratio of clay ingredients in mixing clay produced in Aichi and Gifu Prefectures and sintering the mixed clay five to seven times. The specific gravity is 2.5 to 2.7 and the apparent specific gravity is 1.0 to 1.2. Due to the crushed form and high void percent, it is a kind of filter media that can catch much SS and perform in rapid filtration.

CeramicsG

?Ceramics G is manufactured by sieving porous glass-rock pieces which is formed by explosive spouts of containing gas in sudden refrigeration and solidification of the third period volcanic rock. The specific gravity is high such as 2.4 to 2.6, but the apparent specific gravity is rather small such as 0.65 to 0.75. It is a kind of porous and light-weight filter media having high void percent.

Uses

* Circulating filtration for swimming pools and public baths.
* Filtration for fish-bleeding ponds and aquariums.
* Filtration for waste water including oil and sewage.
* Others such as various SS removal.

Standard products of our Ceramics M/G
Product M1 M2 M3 G1 G2
Size 1.2 to 2.0mm 0.6 to 1.2mm 0.3 to 0.65mm 1.4 to 2.3mm 0.6 to 1.4mm
Content in size 75% minimum 75% minimum
App. specific gravity 1.0 to 1.2g/cm3 0.65 to 0.75g/cm3
Appearance Granular

Packing for M: 20L in a PE bag, 0.8m3 in a flexible container bag
Packing for G: 30L in a PE bag, 0.8m3 in a flexible container bag (Palletizing available)

Chemical composition example
Ingredients SiO2 Al2O3 Fe2O3 CaO MgO K2O Na2O Ig. loss
M 71.3% 19.0% 1.4% 1.3% 0.37% 3.7% 2.7% 0.23%
G 73.9% 19.3% 2.1% 0.3% 0.18% 2.2% 1.9% 0.12%

Note: Since Ceramics is a natural mineral, the chemical composition fluctuates.
