POLYMER AUTO DISSOLVER
PAD
STRONG POINT
* Dry air type having high reliability
* Simple operation.
* Easy maintenance.
* Flexible arrangement for orientation and others according to customers' needs.
* Automatic operation just after installation.
* Compact design with only one tank to save space.
* Selectable tank material from PVC, SUS304 and FRP.
* Aimple design and reasonable price.
* Much delivery record.
* New arrival of reasonable FN type with FRP tank including 100L tank.
Equipped with a Pulse-generation flowmeter and Powder sensor as standard to feed powder correctly against change of flowrate and to detect powder error in advance of trouble.

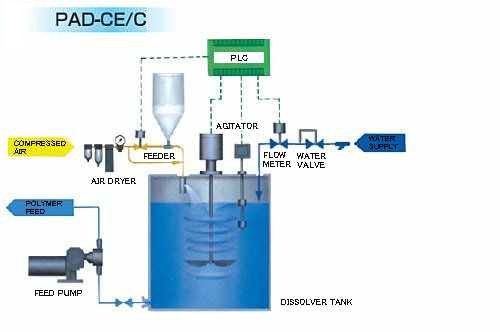

PAD-C, PAD-C_FN TYPEReasonable model to feed powder correctly to stable flowrate by using a constant flow value.

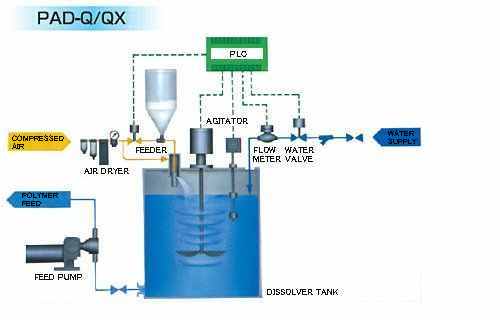

Flow
Standard specifications
| Standard Model Specifications |
PAD-Q4FN PAD-C4FN |
PAD-Q8 PAD-C8 PAD-18FN PAD-C8FN |
PAD-Q20 PAD-C20 PAD-20FN PAD-C20FN |
PAD-Q40 PAD-C40 |
PAD-Q40 PAD-C40 |
|---|---|---|---|---|---|
| Dissolving Capacity (L/H) | 50 to 100 | 80 to 160 | 200 to 400 | 400 to 800 | 800 to 1600 |
| Tank Capacity (L): Nominal Effective |
120 80 to 100 |
200 160 to 180 |
500 400 to 450 |
1000 800 to 900 |
2000 1600 to 1800 |
| Dissolving Time (Hr) | 1.0 to 2.0 |
||||
| Hopper Capacity (L) | 8 or 15 | 8 or 15 | 15 or 30 | 30 or 60 | 30 or 60 |
| Mixer (kW) | 0.07 | 0.2 | 0.4 | 0.75 | 1.5 |
| Feeder Model | TAF2 | ||||
| Feeder Capacity | Variable from 0.5 to 3g (1.0 to 6g) of polymer per 1L(2L) of feed water. | ||||
| Power Source | AC200/220V, 50/60Hz, 3-phase (Other voltages acalable.) | ||||
| Power Consumption (VA) | 150 | 300 | 600 | 1100 | 2200 |
* The dissolving time will be the maximm if the dissolving time is set at 1.0Hr and will be the minimum if the dissolving time is set at 2.0Hr.
* Other condition for standard model: (1) Applicable chemical shall be powswe polymer only. (2) Thiw dissolver shall be innstallde indoors. (3) For the different voltege of power source, it shall be ewspectively designed. (4) The viscosity of solution shall be 500mP.s max.
