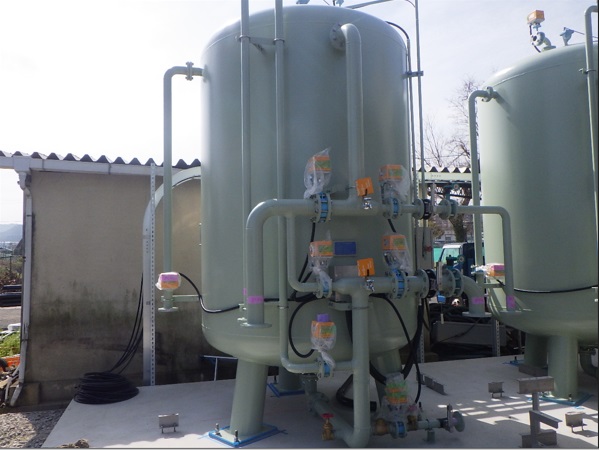

Activated Carbon Adsorption Towers

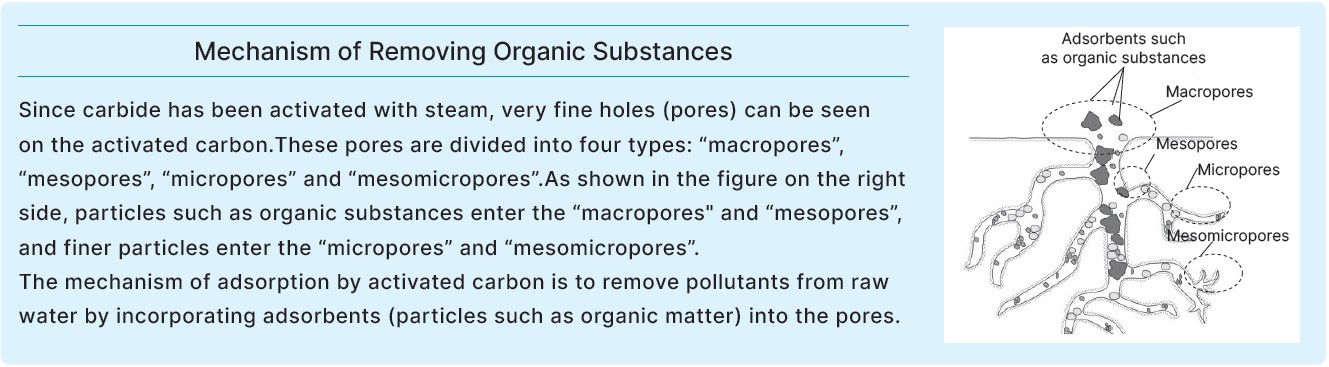

Activated carbon, characterized by its porous structure, possesses the proper ty of adsorbing numerous substances within its pores. Furthermore, since the surface of activated carbon is nonpolar, polar molecules like water are less readily adsorbed, and it exhibits a characteristic preference for adsorbing low-polarity organic compounds.
This proper ty is utilized to remove organic color components, odor components, COD components, and trihalomethanes. It is also effective for removing residual chlorine through surface oxidation.
Filter Media

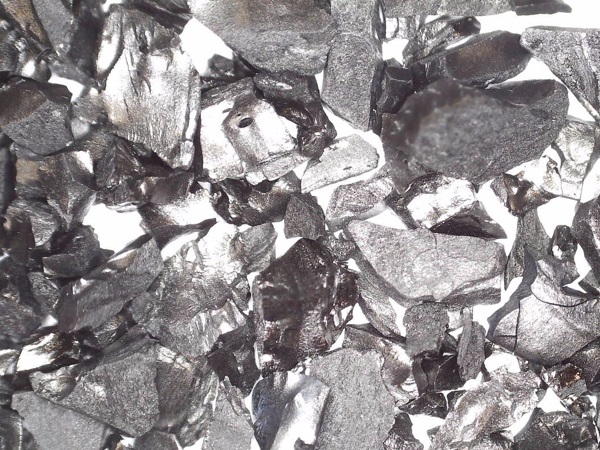

●Activated carbon products are broadly classified into plant-based and coal-based types depending on the manufacturing raw materials.
●Activated carbon for water treatment KEMY CARBON TA-30 series is inspected in accordance with JWWA A 114:2006 or JIS K1474:2014.
●We can manufacture the activated carbon according to customer specifications. Please contact us.
Product Specifications
| Organic substances removal |
Free residual chlorine removal |
||
| Operating Environment |
Place _of installation | Indoor _or outdoor | |
| Temperature | 0～40℃ | ||
| Raw Water | Water temperature | 0～40℃（No freezing） | |
| Water quality | Water contained organic substances |
Free residual chlorine removal : not more than 1.0mg/L |
|
| General Conditions _of Use |
Filter material type | Coal-based activated carbon TA-30C |
Coconut-based activated carbon TA-30N |
| Filteration velocity | LV5h-1 | LV15h-1 | |
| Max. operating press. | 0.3MPa | ||
| Treated Water | Water quality | According to result _of water test |
not more than 0.1mg/L |
| Backwash Water | Backwash velocity | SV 15～25h-1 | |
