Handles High Turbidity

Can reduce raw water turbidity from a maximum of 100 NTU to below 5 NTU (using coagulant).

Reduced Installation Space

Filtration speed is approximately 5 times faster than granular media (around LV20 to 80 m/h), allowing for smaller filter tower sizes and reduced installation space.

Reduced Backwash Water Volume

Utilizes powerful simultaneous air-water backwashing, achieving exceptional cleaning results with minimal backwash water.

High Turbidity Capture Capacity

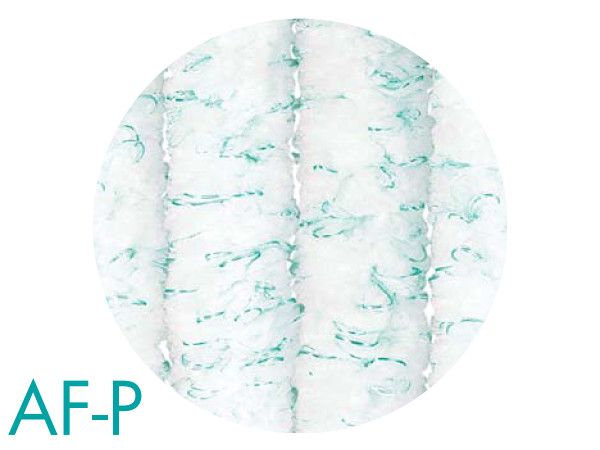

Employs large quantities of fibers measuring tens of micrometers, achieving a void ratio exceeding 90% (compared to approximately 50% for sand or anthracite). This enables significantly higher turbidity capture capacity than granular filter media.

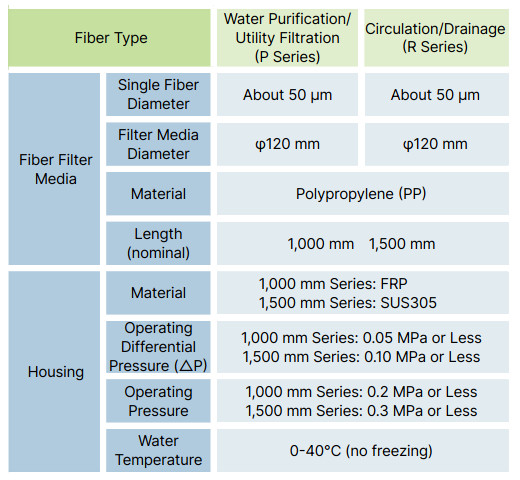

Water Purification and Irrigation Filtration (P Series)

● Countermeasures for high turbidity and fluctuating water quality in rivers
● Pretreatment for membrane filtration (e.g., SMF)
● Industrial water treatment
● Production of reclaimed water from rainwater
● Removal of high iron concentrations from groundwater
● Pool circulation filtration
● Aquaculture pond filtration

Circulation and Drainage Use (R Series)

● Tertiary treatment of wastewater from septic tanks, etc.
● Filtration for ornamental ponds and aquaculture ponds
● Side filter for cooling water
● Circulation filtration (bathhouses, ornamental ponds, etc.)

Please note: The examples provided here are for illustrative purposes only. Results may vary depending on water quality even for the same application. We recommend conducting a flow test when selecting filter media. For selection guidance or other inquiries, please contact your sales representative.

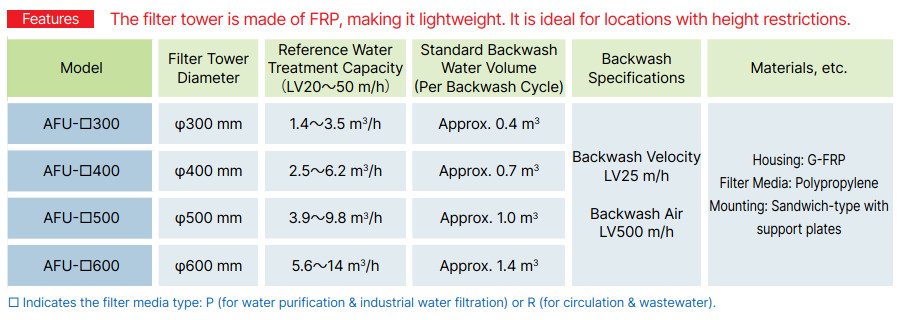

1,000 mm Series (Compact, Light weight Type)

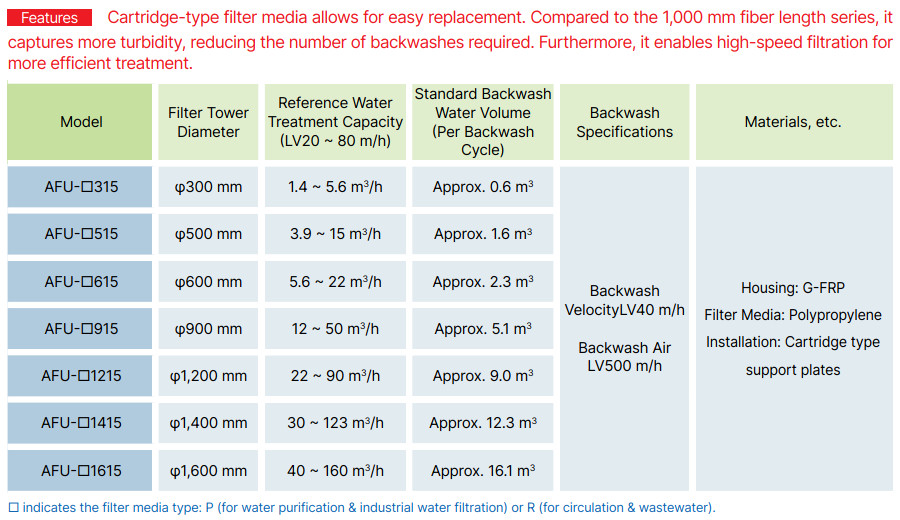

1,500 mm Series (Enhanced Turbidity Capture Capacity, High-Efficiency Type)

Please note: For use in high-temperature, acid-resistant, or alkali-resistant applications, please consult your sales representative.
