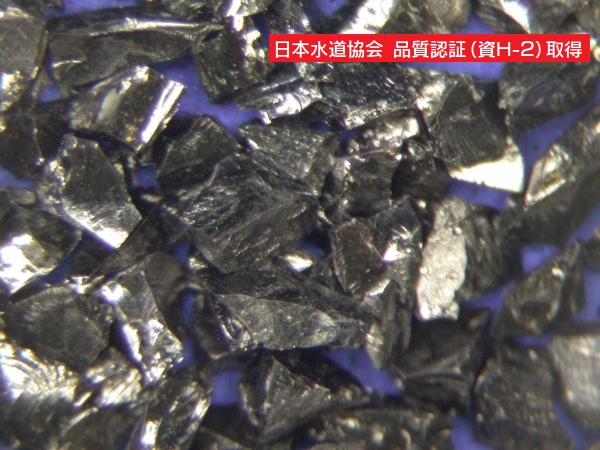

Anthracite Filter Media

Anthracite Filter Media (anthracite filter media) is a filter material for removing turbidity and SS. Since it has a lower density than filtered sand and is stratified on the upper layer of filtered sand after backwashing to form a reverse particle size structure, it is often used as multi-layer filtration in combination with filtered sand. In addition, since the product contains a large amount of carbon, it is resistant to various chemicals and has high physical strength, so it is widely used for water purification and water treatment.

Features

Large voids and large turbidity capture

In [single-layer filtration], which filters only with filtered sand, fine sand particles are stratified in the upper layer, so turbidity is mainly captured in [surface filtration] near the surface layer, and a large amount of turbidity capture cannot be obtained. Hmm. Anthracite has a lower density than filtered sand and is stratified on the upper layer of filtered sand even with a large particle size. Therefore, by combining it with filtered sand, the amount of turbidity captured is increased as an ideal [multi-layer filtration]. It can be used and is widely used in water purification plants nationwide.

In addition, since the shape of anthracite is rich in ridge angle, the voids are large and the specific surface area is large, so that the entire filter layer can be effectively used [deep filtration], and the thickness of the filter layer is increased with a single layer [anthrasite]. It is also used as [site deep filtration]. From these features, the following effects can be obtained by using Anthracite.

From these features, the following effects can be obtained by using Anthracite.

– Reduction of waste water amount by extending filtration duration [improvement of water recovery rate]
– Filtration speed can be increased, saving equipment space.
– Prevention of filtration blockage due to diatoms
[cinedra], cyanobacteria [microkisstin], etc.
– Prevention of madballs on the surface of filtered sand

Micro flocs are easy to grow

Since anthracite particles are complex _and have many ridge angles, various voids are created between the particles. After injecting the coagulant, even the water to be treated, which is sent to the filtration layer without being sufficiently agitated, undergoes the agitation effect while passing through the various voids of the anthracite, and good microfloc can be generated. This leads to improvement of treated water quality.
* Improvement of treated water quality

Easy to change from a single-layer filtration pond

The method of cleaning anthracite is the same as that of filtered sand. In other words, there is no need to add a new cleaning device when changing from an existing filtration pond with a single layer of filtered sand to a multi-layer that uses anthracite. It is possible to improve the filtration performance by simply removing a part of the filtered sand from the filtration pond and replenishing the anthracite.
* Improved filtration performance with an inexpensive budget

Excellent chemical resistance

Since high-quality anthracite has few impurities and a large amount of carbon, it does not dissolve in acidic or alkaline water and is effectively used in chemical factories such as soda makers.
* Can be used for all chemicals

Can be used as a biological carrier

Anthracite has a high porosity and a large surface area, so it has the characteristic that a biofilm is easily formed. In other words, it is ideal not only for physical filtration but also as a carrier for biological treatment.
* Biological carrier with good processing efficiency

Product Specifications

Anthracite quality standards

Our products(1) Our products(2) Quality regulation (physical properties)
(JWWA A 103-2:2006-2)
density 1.42g/cm3 1.46g/cm3 1.40~1.69g/cm3
Abrasion rate 0.85% 1.22% 3.0% less
Hydrochloric acid solubility 0.65% 0.78% 6.0% less

Anthracite standard product

Effective Size 0.7mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Uniformity Coefficient 1.5 max. / 1.4 max.
Appearance Granular
Origin Vietnam

Anthracite for water supply (JWWA A 103-2: 2006-2) We have a lineup of products that meet the selection criteria.
We also manufacture products with the specified effective diameter and uniformity coefficient upon request.
Please note that the effective diameter includes an error value.

Packing

Packaging unit: PE bag (30L), flexible container bag( 1m3)
* Pallets can be stacked upon request.

When ordering, specify the specifications, quantity, packing style, _and presence / absence of pallets.
If you would like a JWWA certified product, please let us know.

JWWA certified product

For the first time in Japan, it has been certified as a certified factory for all filter media (filter sand, anthracite, manganese sand, filter gravel) in “JWWA A103: 2006-2 Water Filter”.
We will contribute to the safe, tough and sustainable water supply business.

* Quality certified products are guaranteed to comply with the Ministry of Health and Welfare Ordinance and JWWA standards.
* Reduce the time and effort of individual quality confirmation by business entities!
* If the pipeline is a certified product, the heart of water purification treatment and the filter medium are also certified products!

Tips

About the world brand Hong Gay Charcoal Vietnam Hong Gay Charcoal

Anthracite is the most carbonized coal in the coal classification. Globally, the distribution of anthracite coal fields is in the United States, China, Vietnam, Russia, South Africa, etc. In Japan, it was once collected in the Amakusa region, but now it all depends on imports from foreign countries. .. Among the anthracite charcoal, Vietnam’s Hongei charcoal has high carbonization and is considered to be of high quality worldwide. We have a Hongay factory in Vietnam, and we also manufacture high quality anthracite from Hongei charcoal in Vietnam so that we can use it safely for water supply.

Main properties of Hongei Anthracite

moisture(%) ash(%) Volatile content
(%)
Sulfur content
(%)
Fixed carbon(%) calorie(J/kg)
Hongei charcoal 5 4 – 5 5 – 7 0.45 88 1,880 – 1,980
