Verozon CDV series (ClO2 generation amount: 1-2,000g / h)

* Continuous chlorine dioxide generator
* Equipped with various safety functions
* Generated amount 1-2,000 g / h
* For sterilization / oxidation / deodorization

Features

Simple and safe continuous chlorine dioxide generator for medium weight applications

* “Two-component method” using 7.5% sodium chlorite and 9% hydrochloric acid
* Many valuations of the amount generated, suitable for various applications
* Can be used by generating chlorine dioxide by various internal / external controls
* Calibration kit (option) enables confirmation and calibration of drug injection amount during operation.

specification

model ClO2Amount generated (maximum)
(g/h)
ClO2Water concentration
(mg/L)
Maximum chemical consumption Reference amount of treated water
(m3/h) *1
size
(mm)
mass
(kg)
power consumption
(w)
NaClO2 (L/h) HCl (L/h)
CDVc 20 1~20 20,000 0.5 0.5 2~40 1344 x 1002 x 200 26 84
CDVc 45 2~45 20,000 1.125 1.125 40~90 1344 x 1002 x 200 27 84
CDVc 120 6~120 20,000 3 3 12~240 1344 x 1002 x 200 28 84
CDVc 240 12~240 20,000 6 6 24~480 1342 x 1000 x 248 45 94
CDVc 600 30~600 20,000 15 15 60~1,200 1711 x 1200 x 273 75 196
CDVc 2000 100~2,000 20,000 50 50 200~4,000 1900 x 1400 x 370 120 310

* 1: Reference value when the injection concentration is 0.5 mg / L
The generated 20,000 mg / L chlorine dioxide water is first diluted with bypass water (200 mg / L or less recommended).
Power supply voltage AC100-240V 50 / 60Hz

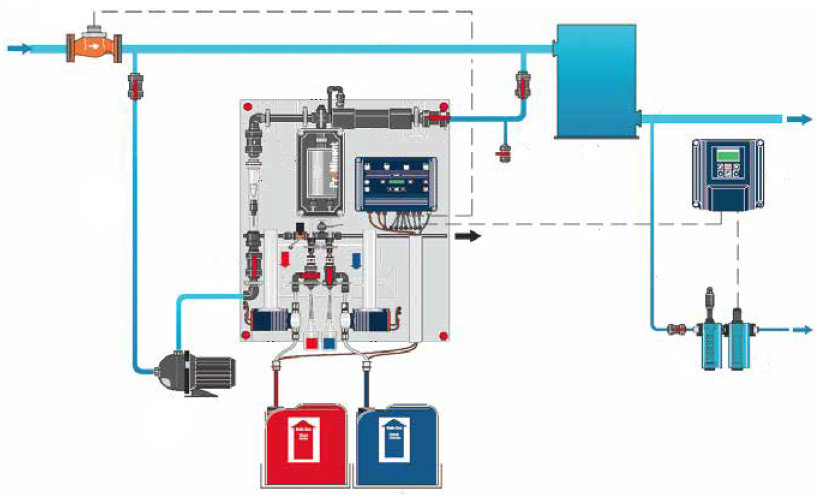

Flow sheet

Technical information
