A new-generation diaphragm pump

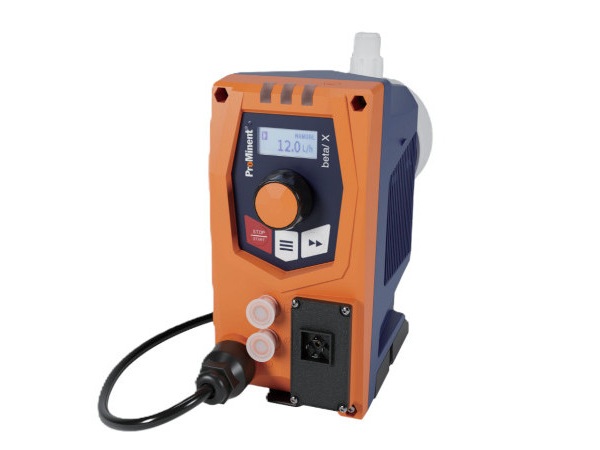

The Beta X is a quiet diaphragm pump driven by a stepping motor.
It allows for highly precise flow rate adjustments and offers intuitive operation.
It can be easily adjusted with the click wheel, and the backflow prevention mechanism transfers liquid in a consistent direction.
It is a simple structure that allows even first-time users to set up and operate it smoothly.

Uses a stepping motor

Reduced pulsation and high control performance

Simple and intuitive to use

Flow rate (L/h) can be intuitively set using the click wheel and LCD display.
Just enter the required discharge amount—no need to adjust.
stroke length or stroke count.

Excellent installability and visibility

With a click-in system, it can be quickly installed either on the floor or mounted on the wall.
The status LED allows operation, warnings, and errors to be checked from a distance.

Improving accuracy and reliability

Adjustment range 1: 600–5040, dosing accuracy ±1% (under our conditions).
The liquid-end parts are made of PVDF or SUS.

■ Power supply voltage: Single-phase 100V–240V 50/60Hz
■ Average power consumption: 15W
■ Standard accessories: 3m hose, foot valve, injection valve
■ Protection rating: Equivalent to IP66
■ Compatible viscosity: 0–1000 mPas

Discharge type
Beta X BTXB	Lower limit setting	Maximum discharge amount		Maximum discharge pressure [MPa]	Stroke count [spm]	Recommended hose inner diameter (resin)	Tube outer diameter (SST)	Reference weight
	[ml/min]	[ml/min]	[L/h]					PV	SST
16006	0.17	100	6.0	1.6	0～200	4mm	6mm	2.4kg	2.9kg
07018	0.30	300	18	0.7	0～200	5～6mm	8mm	2.6kg	3.9kg
04028	0.47	460	27.6	0.4	0～200	5～6mm	8mm	2.6kg	4.0kg
02050	0.84	840	50.4	0.2	0～200	5～6mm	8mm	2.7kg	4.5kg

Head material / Valve material	PV: PVDF/PVDF　SS: Stainless steel
Seal / Diaphragm Material	T: Standard Diaphragm + PTFE Seal M: vPTFE Diaphragm + _Valve PTFE  (for PV & SS)
Discharge Head Version	2: With air release _valve・without _valve spring (for PV)
Power specifications	U: [Standard] AC 100–240V 50/60Hz K: DC Power (12–24VDC) 20W
Cable / plug	1: 2m open end 2: 5m open end 3: 10m open end
Module	0: No relay 1: Relay 3-pin, 240V 1x Changeover contact 240V-8A (Normally closed relay) 4: Relay 4-pin, 24V 100mA 2x N/O 24V-100mA (1 + Pacing relay normally open) A: 0-24mA Output + Relay 2-pin, 240V0, 1ADC (Used as 1+4-20mA output)
Operation	0: Manual + Contact 3: Manual + Contact + Analog Input 0/4-20mA

Response to digitization and remote monitoring

Programming and data reading are possible via a smartphone through Bluetooth®/NFC integration.

External signal operation

Pulse signal operation: Operates according to a voltage-free pulse signal from an external source.
Remote ON/OFF operation: Operates/stops according to a voltage-free contact signal from an external source.
Analog signal operation: Operates in conjunction with an external 4–20 mA (0–20 mA) signal.

Two-stage level switch input

Monitors the liquid level of the chemical tank, and issues a warning and stops operation when the liquid level decreases.

Alarm and pacing relays

Alarm relay: Outputs alarms for things like pump failures or low liquid levels.
Pacing relay: Outputs a volt-free contact signal with each pump stroke.
