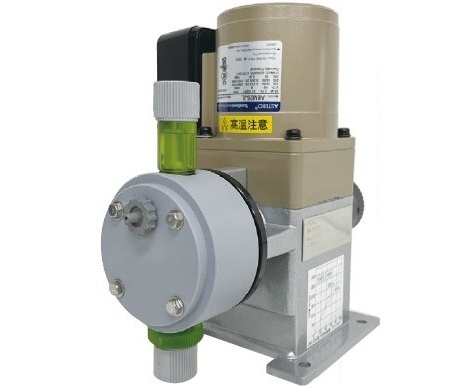

CM-V

✔ Accurate discharge rate and easy flow rate adjustment.
✔ Ideal for precise injection of various chemical reagents.
✔ Strong body of high durability.
✔ Easy maintenance
✔ Reasonable prices and immediate delivery.

Features

<Smallest pump among CM series>
CM-V behaves accurate discharge performance although it is small type using 25W _and 60W motors.

<Various power source specifications>
● Various power source motors lined up as standard _and semi-standard.
・100V　・110V　・200V　・220V　・230V
・380V　・400V　・415V　・440V
● Totally-enclosed self-cooled or totally-enclosed external fan indoor flange type motor.
Take measures such as using the motor cover of standard accessory for outdoor use.
* Please ensure that it is not exposed to direct sunlight.
* Explosion-proof specifications are not supported.
* It is not applicable to the specific color painting.

<Variety of standard accessories>
・Motor cover, simple tools: for all types
・Air extract pump: only hose specifications for CM-1V to 25V, VVFC and VVF4 combination※
・Check valve, foot valve: Only hose specifications excluding φ15 x φ22

※Incidentally, this applicable model is equipped with a flow indicator as standard.

Specifications

Model	Discharge rate (ml/min) at 0.1MPaG		Max. discharge rate at the max. discharge pressure (ml/min)		Max. discharge pressure (MPaG)	Diameters of Pump head / Diaphragm (mm)	Stroke frequency (spm) / Reduction ratio		Max. stroke length (mm)	Motor (W)	Weight (kg)
Model	60(Hz)	50(Hz)	60(Hz)	50(Hz)	Max. discharge pressure (MPaG)	Diameters of Pump head / Diaphragm (mm)	60(Hz)	50(Hz)	Max. stroke length (mm)	Motor (W)	Hose	Flange
1V	2.4-12	2-10	10	8	1.0	φ70/ φ39	8/1:180	7/1:180	3	25	Approx. 4.0	Approx. 4.3
2V	4.8-24	4-20	19	16			16/1:90	14/1:90
6V	14.4-72	12-60	70	55			50/1:30	41/1:30
8V	20-100	16-80	75	58		φ70/ φ49	50/1:30	41/1:30
25V	60-300	50-250	260	210		φ70/ φ49	120/ 1:12.5	100/ 1:12.5
50V	120-600	100-500	300	250	0.5	φ110/ φ90	51/1:30	43/1:30	4	60	Approx. 7.8	Approx. 8.1
80V	200-1000	160-800	650	500			86/1:18	72/1:18	4
130V	320-1600	260-1300	1250	1010			86/1:18	72/1:18	6

*The discharge rate was calculated at discharge pressure of 0.1MPaG, suction head of -0.01MPaAq equivalent to the same pipe diameter as in the pump; and normal temperature using clear water.
Under standard specifications, please operate with an ambient temperature of 0 to 40°C, handling liquid temperature of 0 to 50°C,and an NPSH requirement of approximately 0.06 MPa Abs.

Common specifications

Connection

Hose

CM-1V～25V: φ4 x φ9 _or φ4 x φ6, CM-50V/80V: φ6 x φ11, φ6 x φ9 _or φ15 x φ22, CM-130V: φ15 xφ22, CM-1V～25V-XV46: φ6 x φ11　CM-50V/80V-VV46: φ15 x φ22

Flange

15A JIS10KF 13A union joint

Motor

Standard

Three-phase, 4P, Insulation class B, 60Hz (200/220/230V), 50Hz (200/220V), 25W: Totally-enclosed self-cooled indoor flange type　60W: Totally-enclosed external fan indoor flange type

Semi-standard

Three-phase, 4P, Insulation class B, 60Hz (380/400/415/440V), 50Hz (380/400/415/440V), 25W: Totally-enclosed self-cooled indoor flange type, 60W: Totally-enclosed external fan indoor flange type

Single-phase, 4P, Insulation class B, 60Hz (100/110V), 50Hz (100V), or 60Hz (200/220V), 50Hz (200V) 25W: Totally-enclosed self-cooled indoor flange type, 60W: Totally-enclosed external fan indoor flange type

Reducer

Spur-gear multistage combination mechanism

Standard
accessories

● Motor cover set (w/ mounting stay, set screws) 1 set
● Simple tools (Hexagonal wrench)
● Hose 4m (for CM-1V～80V hose spec. ・ Excluding φ15 × φ22)
● Air extract hose (PE hose 1m) (for CM-1V-25V-VVFC/VVE4)
● Pump mounting bolts _and nuts M6 × 35L 4 sets
● Instruction manual
● Foot valve (Hose spec. only ・ Excluding φ15 × φ22)
● Check valve (Hose spec. only ・ Excluding φ15 × φ22)
● Air extract pump

Color

For motor _and reduction gear parts: Astero silver, similarly Munsell 2.5Y6.5/1.5, For driving parts: Silver

Liquid-end parts specifications

part name/Combination		VVFC		VVE4		XV46（1V-25V） VV46（50V-130V）
Applicable chemicals		Sodium hypochlorite Ferric chloride, PAC Sulfate band, ferrous sulfate Ferric sulfate	Hydrochloric acid / dilute sulfuric acid Other strong acids	Sodium hydroxide	Ammonia water	Polymer flocculants
Pump head		PVC		PVC		PVC
Diaphragm		PTFE		PTFE		PTFE
Connector		PVC		PVC		PVC
Valve seat		FKM		EPDM		–
Check ball		Ceramics		SUS304		SUS304
Spring		–		–		SUS316
O-ring, Gasket		Aflas®		Aflas®		φ70 / PTFE φ110 / Aflas®
Connection	Hose	φ4×φ9mm、φ6×φ11mm、 φ15×φ22mm Braded soft PVC hose	φ4×φ6mm、φ6×φ9mm PE hose	φ4×φ6mm、φ6×φ9mm PE hose	φ4×φ9mm、φ6×φ11mm、 φ15×φ22mm Braded soft PVC hose	φ6×φ11mm、φ15×φ22mm Braded soft PVC hose
Connection	Flange	15A JIS 10K Flange

● The corrosion resistance of the material varies depending on the temperature and concentration of the liquid, so the above examples are for reference only.

● Aflas® is a registered trademark of AGC Inc.

● There are two types of connection hoses, so please specify the name of the liquid used or the hose size when making your selection.

Viscosity of fluid

Refer to the chart below for transferring high-viscous fluid such as Polymer flocculants.

Model	Connection
Model	φ6×φ11mm hose	φ15×φ22mm hose	15A Flange
CM-1V	50mPa・s max.	—	50mPa・s max.
CM-2V〜8V	200mPa・s max.	—	300mPa・s max.
CM-25V	80mPa・s max.	—	300mPa・s max.
CM-50V/80V	Not used	500mPa・s max.	500mPa・s max.
CM-130V	Not used	500mPa・s max.	500mPa・s max.

※ The pump discharge rate varies depending on the liquid viscosity and slurry. Please note that the pump performance values are based on data with clean water. When using a viscous liquid, please use a press-in piping.

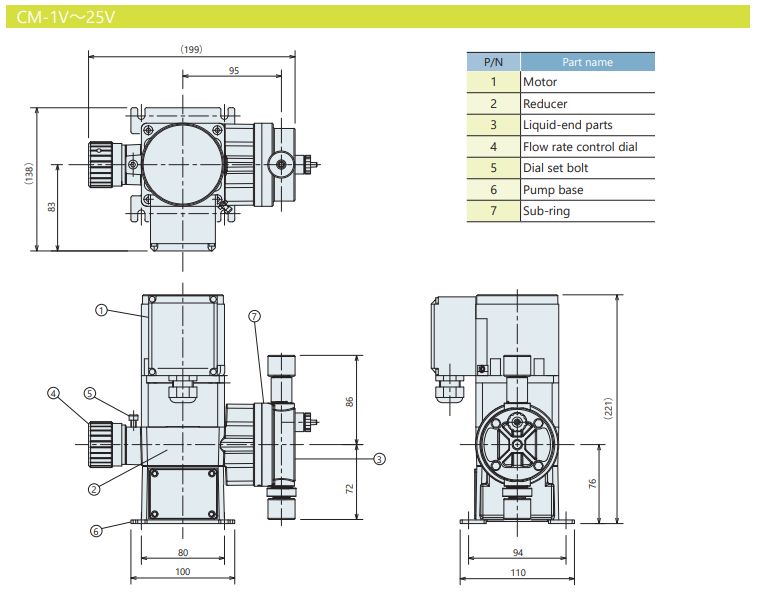

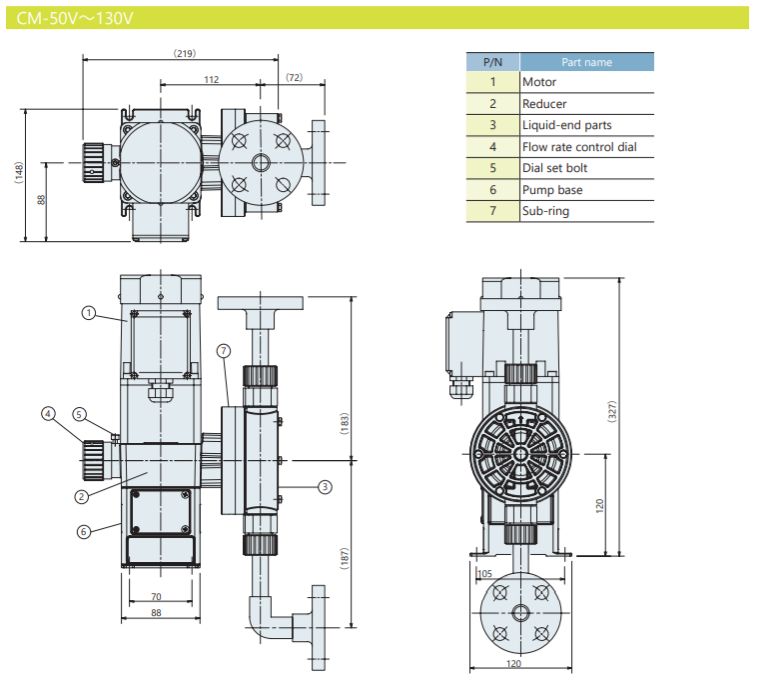

Pump Dimensions

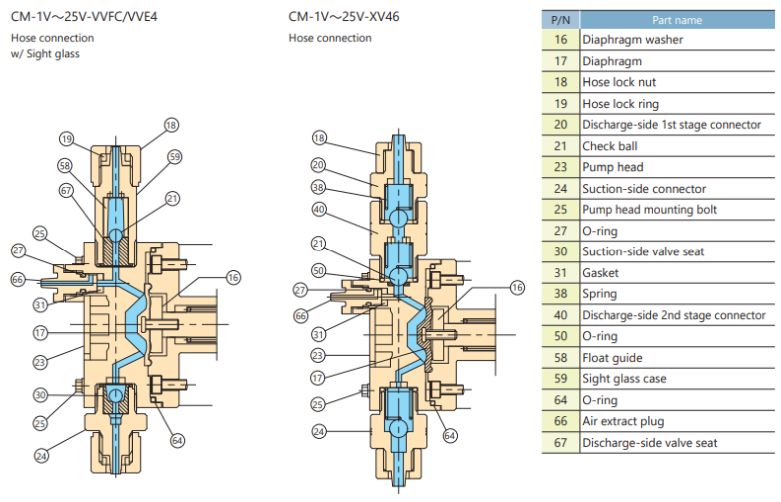

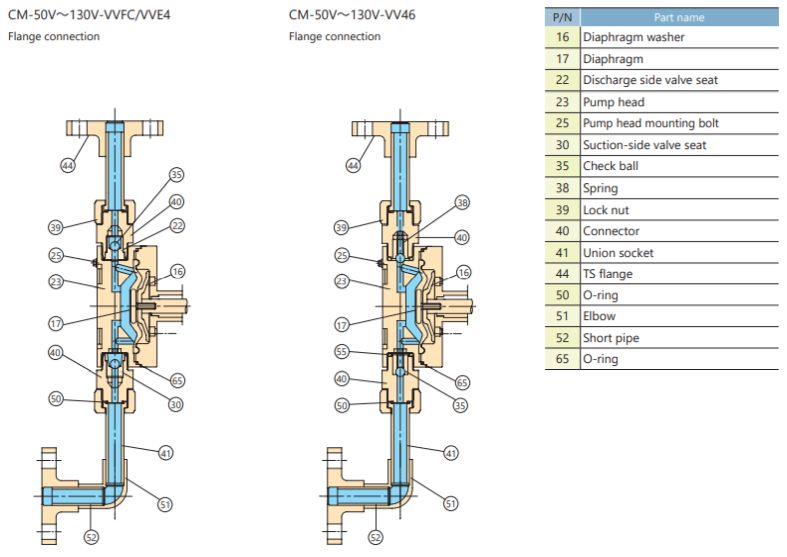

Liquid-end parts construction
