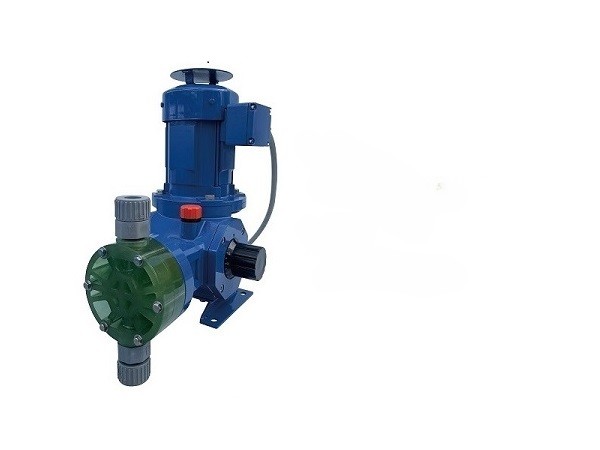

General-Purpose Motors

This pump is available with a 0.2 kW or 0.4 kW general-purpose motors.
The motor can be selected to meet the required electrical and design specifications.

Power Supply Specifications

● Motors for various power supplies are available as standard or semi-standard options.
・200V　・220V　・380V　・400V　・440V
● Outdoor Totally Enclosed Fan-Cooled (TEFC) Flange-Mounted Motor
・200V　 ・220V　 ・380V　 ・400V　 ・440V

Compatible with Increased-Safety and Pressure-Resistant Explosion-Proof Motors

The pump can be fitted with an increased-safety or pressure-resistant explosion-proof motor from the specified manufacturer for safe use in hazardous areas. A dedicated inverter-duty motor also enables reliable flow-rate control with an inverter.

Air chamber as a standard accessory (CM-1000/1500W)

Model and specifications (0.2kW motor)

Model	Flow rate (mL/min) at 0.1MPaG		Max. flow rate at the max. discharge pressure (mL/min)		Max. discharge pressure (MPaG)	Diameters of Pump head / Diaphragm (mm)	Stroke frequency (spm) / Reduction ratio		Max. stroke length (mm)	Motor (kW)	Weight About(kg)
	60Hz	50Hz	60Hz	50Hz			60Hz	50Hz			PVC/PP	SUS
CM-3W	6～30	5～25	25	21	1.0	φ70 / φ39	35 / 1:50	29 / 1:50	2	Three-phase 0.2	16	18
CM-7W	14～70	12～58	65	54					4
CM-12W	24～120	20～100	113	94			58 / 1:30	48 / 1:30
CM-30W	60～300	50～250	132	110		φ110 / φ90	35 / 1:50	29 / 1:50			17	20
CM-60W	120～600	100～500	418	348					7
CM-100W	200～1000	160～800	667	556			58 / 1:30	48 / 1:30
CM-200W	400～2000	320～1600	1748	1456	0.5	φ150 / φ120					19	24
CM-350W	700～3500	600～2900	3451	2876	0.3				12
CM-500W	1000～5000	800～4000	4769	3974			112 / 1:16	87 / 1:16	8
CM-700W	1400～7000	1200～5800	6720	5600					12
CM-1000W	2520～12600	2100～10500	12000	10000	0.2	φ195 / φ150	154 / 1:11	127 / 1:11	7.2		27	—

Model and specifications(0.4kW motor)

Model	Flow rate (mL/min) at 0.1MPaG		Max. flow rate at the max. discharge pressure (mL/min)		Max. discharge pressure (MPaG)	Diameters of Pump head / Diaphragm (mm)	Stroke frequency (spm) / Reduction ratio		Max. stroke length (mm)	Motor (kW)	Weight About(kg)
	60Hz	50Hz	60Hz	50Hz			60Hz	50Hz			PVC/PP	SUS
CM-3W	6～30	5～25	25	21	1.0	φ70 / φ39	35 / 1:50	29 / 1:50	2	Three-phase 0.4	17	20
CM-7W	14～70	12～58	65	54					4
CM-12W	24～120	20～100	113	94			58 / 1:30	48 / 1:30
CM-30W	60～300	50～250	132	110		φ110 / φ90	35 / 1:50	29 / 1:50			18	22
CM-60W	120～600	100～500	418	348					7
CM-100W	200～1000	160～800	667	556			58 / 1:30	48 / 1:30
CM-200W	400～2000	320～1600	1748	1456	0.5	φ150 / φ120					20	26
CM-350W	700～3500	600～2900	3254	2711					12
CM-500W	1000～5000	800～4000	4259	3549			112 / 1:16	87 / 1:16	8
CM-700W	1400～7000	1200～5800	6067	5056					12
CM-1000W	2520～12600	2100～10500	12000	10000	0.3	φ195 / φ150	154 / 1:11	127 / 1:11	7.2		21	—
CM-1500W	3960～19800	3300～16500	15000	18000					10.5

●The flow rate was calculated at discharge pressure of 0.1MPaG, suction head of -0.01MPaAq equivalent to the same pipe diameter as in the pump; and normal temperature using clear water.
●For use with flange connection, the discharge pressure of 3W to 12W should be 1.0MPaG maximum.
When your pump is of the standard specification, use it in the ambient temperature range of 0-40℃, the liquid temperature range of 0-50℃ and about 0.06MPa Abs. of NPSH req.
●There is no hose connection and single-phase motor type for 200W to 700W.
When your pump is of the standard specification, use it in the ambient temperature range of 0-40℃, the liquid temperature range of 0-50℃ and about 0.06MPa Abs. of NPSH req.
●The maximum discharge rate of CM-3W to 12W at the maximum discharge pressure should be at 1.0MPaG of the pressure.

Common specifications

Connection	Hose	(3W to 12W) φ4 x φ6mm polyethylene _or φ4 x φ9mm braided soft PVC (φ6 x φ11mm braided soft PVC hose for XV46, XXU, 444, 4446 type)
		(30W to 100W) φ6 x φ9mm polyethylene _or φ6 x φ11mm braided soft PVC
	Flange	(3W to 100W) 15A JIS 10K flange, 13A union
		(200W, 350W) 20A JIS 10K flange, 20A union
		(500W, 700W) 25A JIS 10K flange, 20A union
		(1000W, 1500W) 40A JIS 10K flange
Motor	Standard	Three-phase, 4P, class E, 60Hz (200/220V), 50Hz (200V), Totally-enclosed external fan flange type
	Semi-standard	Three-phase, 4P, class E, 60Hz (400/440V), 50Hz (400V), Totally-enclosed external fan flange type
		Increased-safety explosion-proof type, pressure-resistant explosion-proof type, inverter-compatible motor, etc.
Reducer		Worm gear reduction type, lubricated with viscosity 320mm2/s (cSt) worm gear oil. The 1000W _and 1500W models correspond to 320 mm²/s (cSt)
Standard accessories	Hose	● Foot valve (except for XXU, XXU6, 444, 4446 combination) ● Ball-type(90゜) anti-siphonage _valve (except for XXU, XXU6, 444, 4446 combination) ● Hose x 4m ● Simple tools ● Pump mounting bolts _and nuts (w/ washers, M8 x 30L) x 4 sets ● Instruction manual ● Air extract pump _and air extract hose (PE 0.85m) (for 3W to 12W, VVFC _and VVE4 combination) ● Flow indicator (equipped as standard for 3W to 12W, VVFC _and VVE4 combination）
	Flange	● Simple tools ● Pump mounting bolts _and nuts (w/ washers, M8 x 30L) x 4 sets ● Instruction manual ● Air extract pump _and air extract hose (PE 0.85m) (for 3W to 12W, VVFC _and VVE4 combination) ● Air chamber (only for 1000W _and 1500W)
Color		Munsell 6.5PB 3.6/8.2 for motor & reducer

Liquid-end parts specifications(CM-3W to 700W)

Combination Part name
		VVFC		VVE4		XV46(3W～12W) VV46(30W～700W)	XXU(3W～350W) XXU6(500W､700W)	444(3W～12W) 4446(30W～700W)
Applicable chemicals		Sodium hypochlorite, Ferric chloride, PAC, Aluminum sulfate, Ferrous sulfate	Hydrochloric acid, Dilute sulfuric acid, Other strong acids	Sodium hydroxide	Ammonia water	Polymer flocculants, Ammonia water	Slaked lime, Sludge, Powdered activated carbon (solution)	Methanol
Pump head		PVC		PVC		PVC＋SUS RF(XV46) PVC(VV46)	PVC＋SUS RF	SUS304
Diaphragm		PTFE		30G～100G：EPDM､Others：PTFE			PTFE	PTFE
Connector		PVC		PVC		PVC	PVC＋SUS RF	SUS304
Valve seat		FKM		EPDM		–	–	–
Check ball		Ceramics		SUS304		SUS304	Urethane	SUS304
Spring		–		–		SUS316	SUS316/-	SUS316/-
O-ring, Packing		Aflas®		Aflas®		XV46：PTFE VV46：Aflas®	Aflas® 3W～12W：PTFE	PTFE
Connection	Hose connection	φ4 x φ9mm _or φ6 x φ11mm braided soft PVC	φ4×φ6 _or φ6×φ9mm PE		φ4×φ9 _or φ6×φ11mm braided soft PVC	φ6×φ11mm braided soft PVC	φ6×φ11mm braided soft PVC	φ6×φ9mm PE
	Flange connection	(3W to 100W) 15A, (200W, 350W) 20A, (500W, 700W) 25A, JIS 10K flange

Liquid-end parts specifications(CM-1000W・1500W)

Combination Part name	PPFC	PPEC	PP46	VVFC
Applicable chemicals	Hydrochloric acid, sulfuric acid, PAC Hydrogen peroxide 35% _or less Ferric chloride, etc.	Sodium hydroxide, Ammonia water	Polymer flocculants, Other viscous liquids	Sodium hypochlorite Other strong acids
Pump head	PP			PVC
Diaphragm	PTFE
Connector	PP			PVC
Valve seat	FKM	EPDM		FKM
Check ball	Ceramics		SUS304	Ceramics
Spring	－		SUS316	－
O-ring, Packing	Aflas®

● The corrosion resistance of the material varies depending on the temperature and concentration of the liquid, so the above examples are for reference only. Other material combinations are also possible.
● Since there are two kinds of connection hose for VVFC combination, for selection, specify a chemical name or hose size to be used.
● Do not use CM-W series for organic solvent.
● VVFC/VVE4 will be VVYY at CM-500W and CM-700W. (“Y” for Hasteloy C)
● Please use VV46 instead VVE4 when you use the CM-350W.
● Aflas® is a registered trademark of AGC Inc.

Viscosity of fluid

Refer to the chart below for transfer high-viscous fluid such as Polymer flocculants.

Model Connection	φ6×φ11mm hose	Flange		Liquid-end parts combination
CM-3W～12W	200mPa･s max.	15A	800mPa･s max.	XV46
CM-30W	80mPa･s max.			VV46
CM-60W・100W	Not used
CM-200W・350W	－	20A
CM-500W・700W	－	25A
CM-1000W・1500W	－	40A	1000mPa･s _or less	PP46

※ The pump flow rate may vary due to the viscosity of the liquid and the effects of the slurry. Please note that the pump performance values are based on data for clean water. When using a viscous liquid, please use it with a press-in piping.

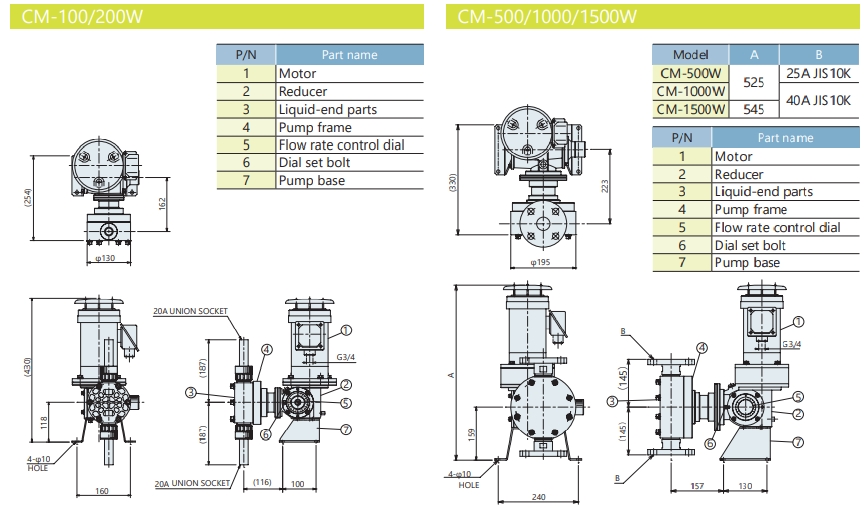

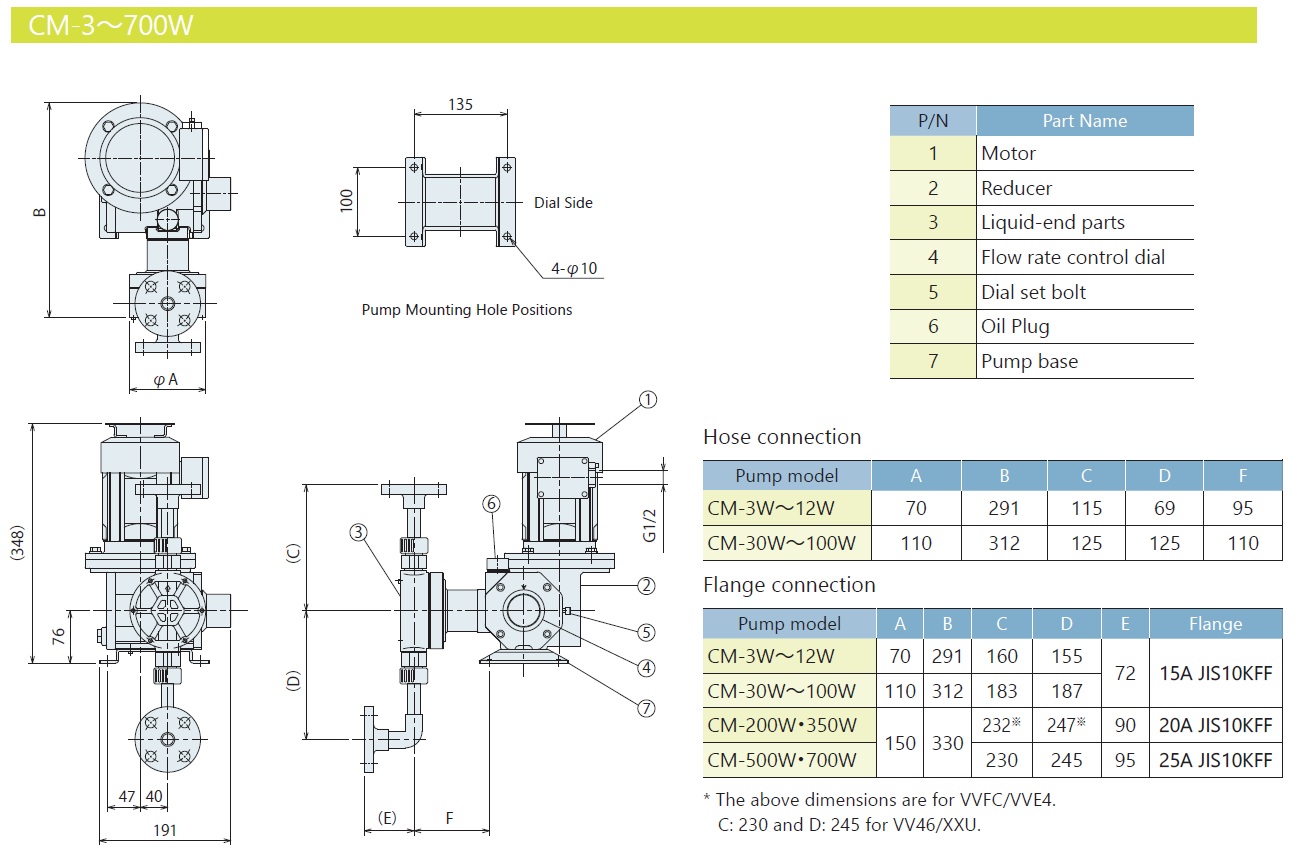

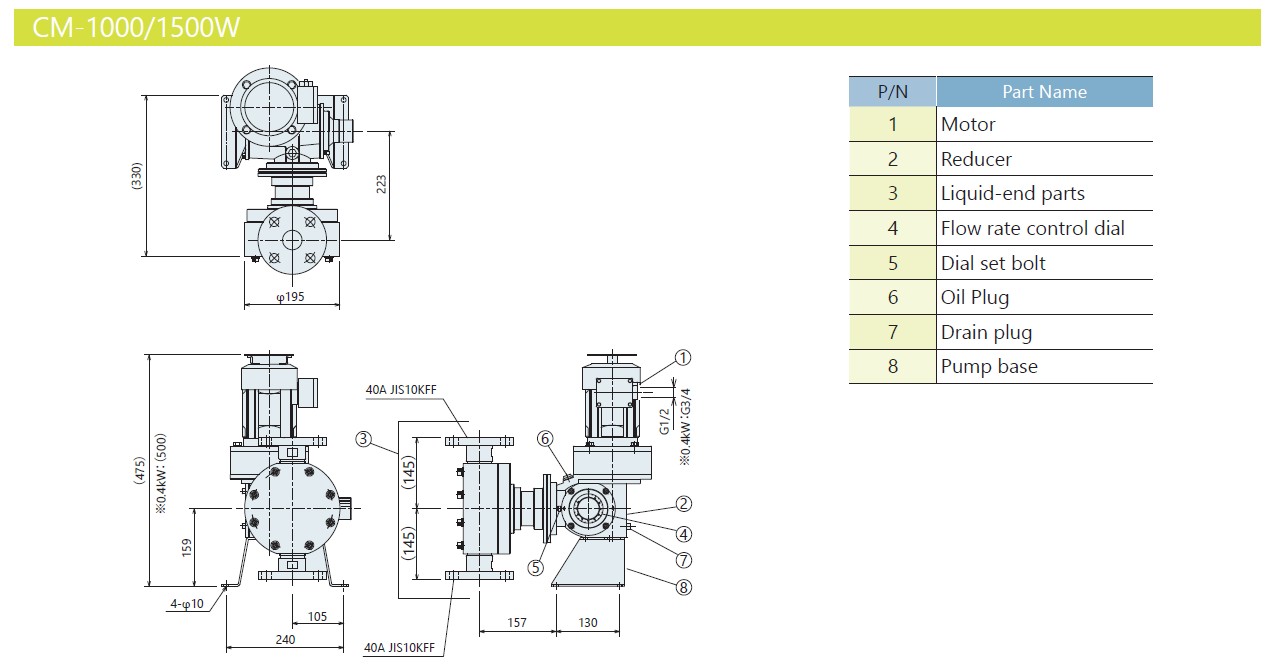

Pump Dimensions

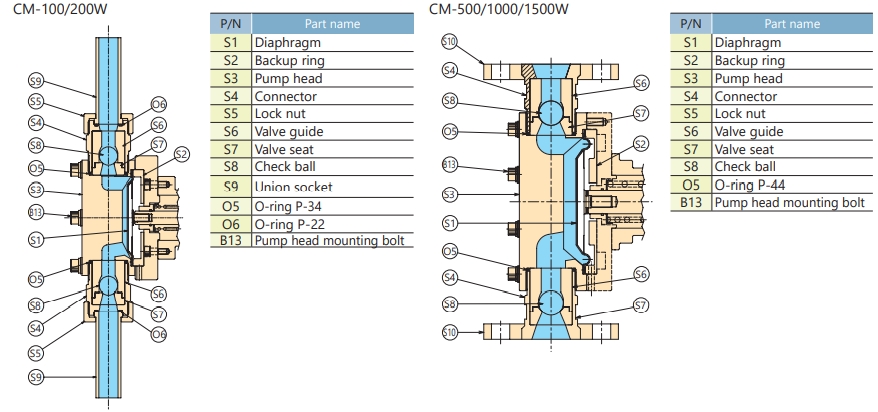

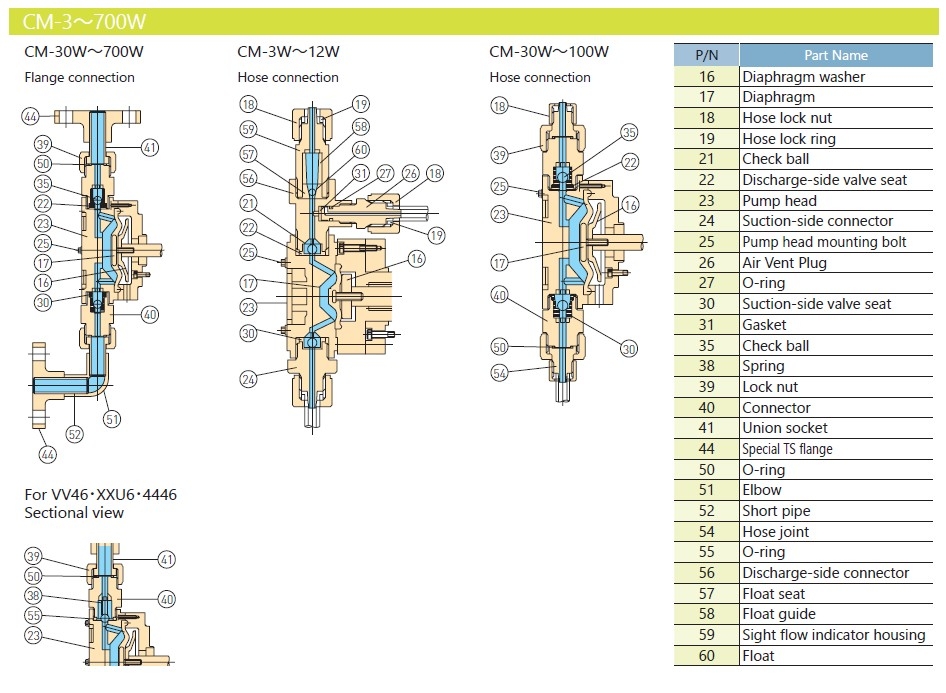

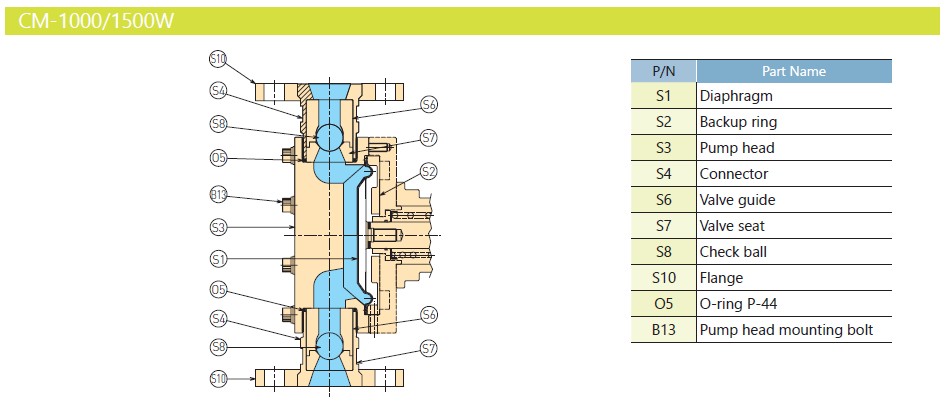

Liquid-end parts construction

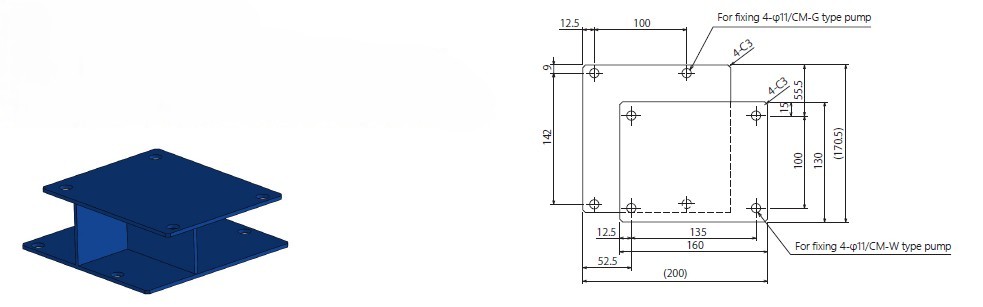

PS-GW　Conversion base

Please use this for replacing the CM-G series with the CM-W series.
Pump upgrades are possible without modifying the piping.

※Inform us of the following items when you place an order for CM-W series.

Model	Chemical to be used	Power source	Others
CM – ○○W	Name, concentration, temperature, specific gravity, viscosity	○○○V､○φ､○○Hz	Remark
