Features

CMD series works two diaphragms operated by one motor.
The comparison features between CM series and CMD series as follows.

● The discharge rate of CMD series is twice of model CM series.

● Lessen pulsation by dosing from two pump head to one line.

●Two flow-rate adjustment dials for two pump heads to control each discharge rate independently.

● This pump can be equipped with two different combination of liquid-end material to dose two different fluids by one pump.

It is possible to keep initial and running costs lower to improve cost merit.

Remark for use
◯ Both pump heads (diaphragms) shall be the same diameter. It means that both discharge rates shall not be so different.
Since the driving motor is one, each of the dosing cannot be stopped during operation.
Be careful about operation with automatic control such as ON-OFF control by output signal from controllers.



Connection	Hose	(3G to 12G) φ4 x φ6mm polyethylene or_ φ4 x φ9mm braided soft PVC (φ6 x φ11mm braided soft PVC hose for XV46, XXU, 444, 4446 type)
		(30G to 100G) φ6 x φ9mm polyethylene or_ φ6 x φ11mm braided soft PVC
	Flange	(3G to 100G) 15A JIS 10K flange, 13A union
		(200G, 350G) 20A JIS 10K flange, 20A union
		(500G, 700G) 25A JIS 10K flange, 20A union
Motor	Standard	0.2kW, Three-phase, 4P, class E, 60Hz (200/220V), 50Hz (200V), TEFC outdoor flange type
	Semi-standard	0.2kW, Single-phase, 4P, class E, 60Hz (200/220V), 50Hz (100V), TEFC outdoor flange type
		0.2kW, Single-phase, 4P, class E, 60Hz (200/220V), 50Hz (200V), TEFC outdoor flange type
		0.2kW, 7-rated Three-phase, 4P, class E, 60Hz (380/400/440V), 50Hz (380/400/415/420V), TEFC outdoor flange type
		0.2kW or_ 0.4kW, Three-phase, 4P, class E, 60Hz (200/220V), 50Hz (200V), safety-increase explosion-proof outdoor flange type
		0.4kW, Three-phase, 4P, class E, 60Hz (200/220V), 50Hz (200V), pressure and_ explosion-proof outdoor flange type
Reducer		Worm gear reduction type, lubricated with viscosity 320mm2/s (cSt) worm gear oil
Standard accessories	Hose	Foot valve (except for XXU, XXU6, 444, 4446 combination), Ball-type anti-siphonage_ valve (except for XXU, XXU6, 444, 4446 combination), Hose x 4m, Simple tools, Pump mounting bolts and_ nuts (w/washers, M8 x 30L) x 4 sets, Instruction manual, Air extract pump, Air extract hose (PE 0.85m) ( for 3G to 12G, VVFC and_ VVE4 combination)）
	Flange	Simple tools, Pump mounting bolts and_ nuts (w/ washers, M8 x 30L) x 4 sets, Instruction manual, Air extract pump, Air extract hose (PE 0.85m) (for 3G to 12G, VVFC and_ VVE4 combination)
Color		Munsell 2.5PB 5/2 for motor and_ reducer





0.2kW motor

Model	Discharge rate (mL/min)				Max. discharge pressure (MPaG)	Diameters of Pump head / Diaphragm (mm)	Stroke frequency (spm) / Reduction ratio		Maximum Stroke length(mm)	Motor (kW)	Weight (kg)
	60Hz	50Hz	60Hz	50Hz			60Hz	50Hz
CMD-3G	12-60	10-50	50	42	1.0(Single-phase) 1.5(Three-phase)	φ70/φ39	35(1/50)	29(1/50)	2	Single-phase/ Three-phase 0.2	About 21
CMD-7G	28-140	24-116	130	108					4
CMD-12G	48-240	40-200	226	188			58(1/30)	48(1/30)
CMD-30G	120-600	100-500	264	220	0.5(Single-phase) 1.0(Three-phase)	φ110/φ90	35(1/50)	29(1/50)			About 22
CMD-60G	240-1200	200-1000	836	696					7
CMD-100G	400-2000	320-1600	1334	1112			58(1/30)	48(1/30)
CMD-200G	800-4000	640-3200	3496	2912	0.5	φ150/φ120				Three-phase 0.2	About 25

0.4kW motor

Model	Discharge rate (ml/min) at 0.1MPaG				Max. discharge pressure (MPaG)	Diameters of Pump head / Diaphragm (mm)	Stroke frequency (spm) / Reduction ratio		Maximum Stroke length(mm)	Motor (kW)	Weight (kg)
	60Hz	50Hz	60Hz	50Hz			60Hz	50Hz
CMD-3G	12-60	10-50	50	42	1.5	φ70/φ39	35(1/50)	29(1/50)	2	Three-phase 0.4	About 22
CMD-7G	28-140	24-116	130	108					4
CMD-12G	48-240	40-200	226	188			58(1/30)	48(1/30)
CMD-30G	120-600	100-500	264	220	1.0	φ110/φ90	35(1/50)	29(1/50)			About 23
CMD-60G	240-1200	200-1000	836	696					7
CMD-100G	400-2000	320-1600	1334	1112			58(1/30)	48(1/30)
CMD-200G	800-4000	640-3200	3496	2912	0.5	φ150/φ120					About 26
CMD-350G	1400-7000	1200-5800	6508	5422					12
CMD-500G	2000-10000	1600-8000	8518	7098			112(1/16)	87(1/16)	8
CMD-700G	2800-14000	2400-11600	12134	10112					12

◯The discharge rate was calculated at discharge pressure of 0.1MPaG, suction head of -0.01MPaAq equivalent to the same pipe diameter as in the pump; and_ normal temperature using clear water.
◯For use with flange connection, the discharge pressure of CMD-3G to 12G should be 1.0MPaG maximum.
◯Discharge rates of CMD series are twice of CM series. There is no hose connection and_ single-phase motor type for CMD-200G to 700G.
When your pump is of the standard specification, use it in the ambient temperature range of 0-40℃, the liquid temperature range of 0-50℃ and_ about 0.06MPaA (0.6kgf/cm2A) of NPSH req.
◯The maximum discharge rate of CMD-3G to 12G at the maximum discharge pressure should be at 1.0MPaG of the pressure.

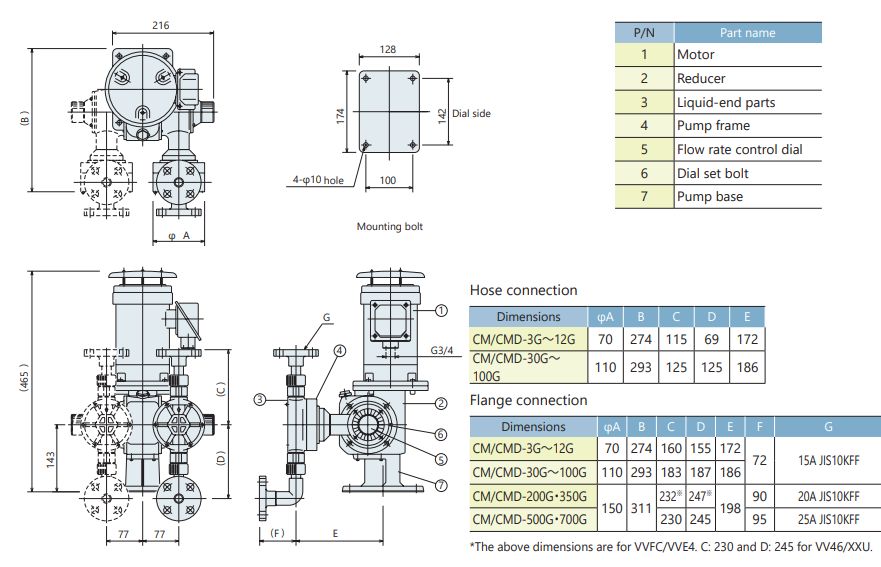

External dimensions

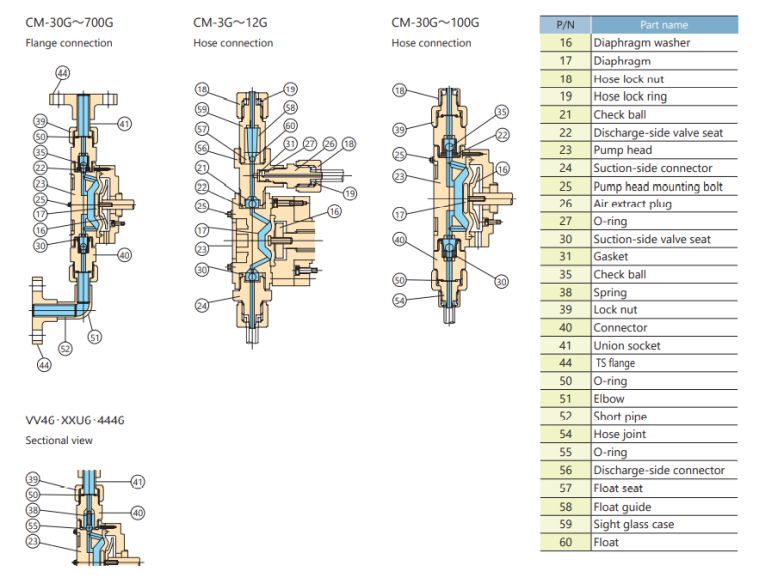

Wet contact structure

Liquid-end parts specifications

		VVFC		VVE4		XV46(3G-12G) VV46(30G-700G)	XXU(3G-350G) XXU6(500G,700G)	444(3G-12G) 4446(30G-700G)
Applicable chemicals		Sodium hypochlorite, Ferric chloride, PAC, sulfate band, Ferric sulfate, ferric sulfate	hydrochloric acid Dilute sulfuric acid Other Strong acid	Sodium hydroxide	Ammonia water	Polymer flocculants, Sodium hydroxide, Ammonia water	Slaked lime, Sludge, Powdered activated carbon (solution)	methanol
Pump head		PVC		PVC		PVC + SUS RF(XV46) PVC(VV46)	PVC + SUS RF	SUS304
Diaphragm		PTFE		30G-100G: EPDM, others: PTFE			PTFE	PTFE
Connector		PVC		PVC		PVC	PVC + SUS RF	SUS304
Valve seat		FKM		EPDM		–	–	–
Check ball		Ceramics		SUS304		SUS304	Urethane	SUS304
Spring		–		–		SUS316	-/SUS316	-/SUS316
O-ring Packing		Aflas®		Aflas®		XV46：PTFE VV46：Aflas®	Aflas® 3G-12G：PTFE	PTFE
Connection	Hose connection	φ4 x φ9mm or_ φ6 x φ11mm braided soft PVC	φ4 x φ6mm or_ φ6 x φ9mm PE		φ4 x φ9mm or_ φ6 x φ9mm braided soft PVC	φ6 x φ11mm braided soft PVC	φ6 x φ11mm braided soft PVC	φ6 x φ9mm PE
	Flange connection	(3G to 100G) 15A, (200G, 350G) 20A, (500G, 700G) 25A, JIS 10K flange
