The CMK series is additionally equipped with a control motor for the manual flow rate adjustment mechanism for automatic stroke length adjustment. It is used in combination with proportional control system equipment for feed forward control to turbidity, flow rate and feedback control to residual chlorine, pH, etc.
Traditionally, in the control of the injection of various liquids, manual setting injection using various types of metering pumps, such as diaphragm-type and plunger-type pumps, has been employed.
In recent years, due to the need for highly accurate injection control, the demand for chemical injection using proportional control has increased. Proportional control, such as feedforward control for turbidity and flow rate and feedback control for residual chlorine and pH, is becoming more widespread.
At our company as well, we have developed and advanced the CMK-type proportional control dosing pumps using the stroke adjustment method. (Collectively the diaphragm metering pump by our spring-back method is called the CM type. Install the control motor to the manual flow rate adjustment mechanism of CM pump and possible to control auto stroke adjustment called CMK type.)

●Pump model to be equipped
CM-2Y～120Y, CM-4R～6R, CM-1L～3L
● Possible to use in dual control system with speed control
In combination with speed control by use of VS motor and invertor, it is possible to use in dual control system of flow rate and concentration, and possible to have wide dosing range.

Nominal model of control motor	K-4
Model of control motor	MCH-1C
Manual setting devices	Equipped
Type of servo motor	Reversible condenser motor with brake
Voltage / Frequency	AC 100V 50/60Hz
Output	8W
Rated revolution	60 Hz：1,450 rpm / 50 Hz：1,200 rpm
Feed-back resistance	200Ω 1.5W
Operating time	49/58 SEC（60/50Hz）
Operating angle	0-300°
Ambient temperature	-20 – +60℃
Protections	Outdoor drip-proof
Color	Munsell　2.5PB 2.5/7
Weight	5kg

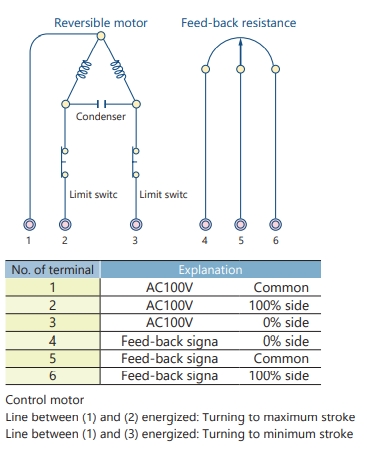

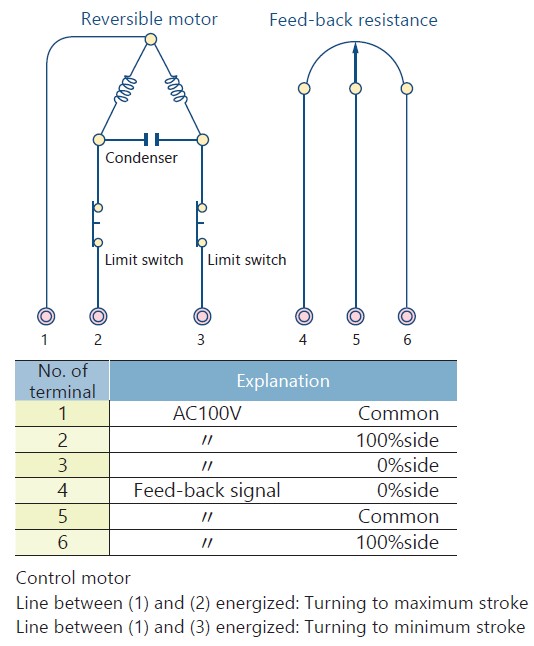

Control motor circuit

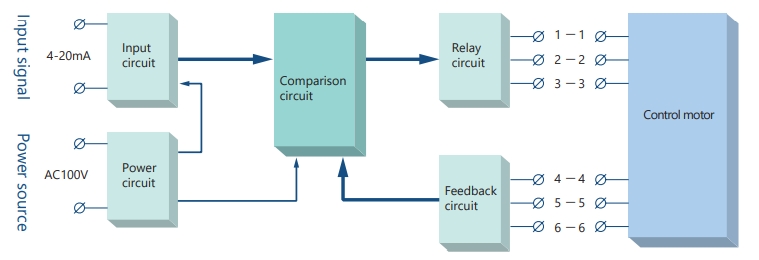

Proportional controller and positioner block diagram
