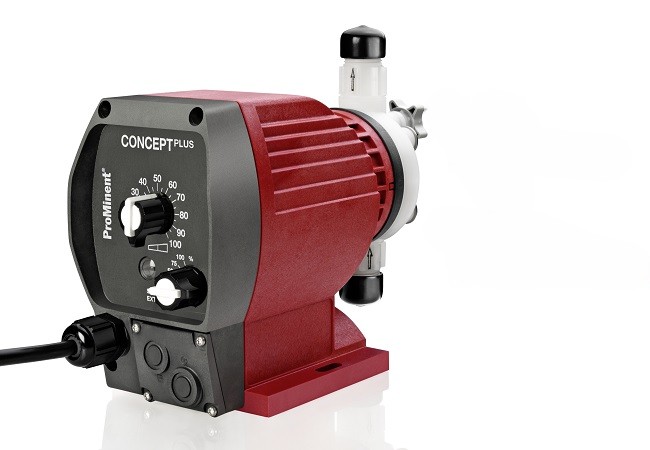

Concept Plus b
✔Chemical injection pump with PVDF head, offering excellent cost performance
✔ Stroke length 0–100% dial adjustment (recommended 30% or more)
✔ Select from 4 levels of stroke: 25%, 50%, 75%, 100%
✔ Free power supply AC100–230V 50/60 Hz
✔Adopts PVDF head to support a variety of chemicals
Features
●By manually varying the stroke length (0–100% stepless adjustment (30% or more recommended)) and the number of strokes (4 levels: 25%, 50%, 75%, 100%), it is possible to adjust the discharge amount.
● Equipped with a built-in manual air extract valve that removes air from the internal liquid-end parts by turning the air extract valve.
Applications
●Quantitative transfer of liquid
※It is not possible to quantitatively transfer gas or liquids containing suspended solids.
Specifications
| Items | Specifications |
|---|---|
| Power source | Single-phase 100-230V 50/60Hz |
| Average power consumption | 11W |
| Valve structure | With manual air extract valve |
| Pump head structure | PVDF |
| Diaphragm material | PTFE |
| Weight | 1.8kg |
| Included accessories | Foot valve, injection valve, hose attached |
| Model | Discharge rate (mL/min) |
Max. discharge pressure (Mpa) |
Connection hose diameter |
|---|---|---|---|
| CNPb 1601 | 18.0 | 1.6 | φ 4x6mm φ 4x9mm φ 6x9mm etc. |
| CNPb 1002 | 35.0 | 1.0 | |
| CNPb 0704 | 65.0 | 0.7 | |
| CNPb 0309 | 150.0 | 0.3 | φ 6x9mm φ 6x11mm etc. |
| CNPb 0215 | 279.0 | 0.15 |
