- Continuous-type Automatic pH Neutralizer Model: TPC

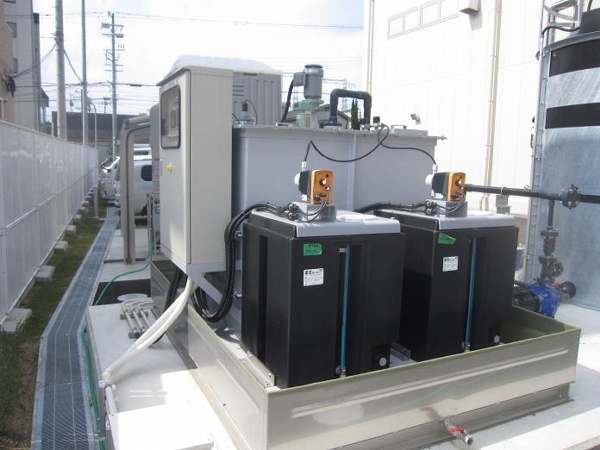

Continuous-type Automatic pH Neutralizer Model: TPC
✔Reliable design with a residence time of 15 minutes in the tank.
✔Optimal neutralization by time division proportional control.
✔Tank material: SS400 + modified epoxy resin coating, SUS, FRP, and PVC are also available.
Features
●Reliable design with a residence time of 15 minutes in the tank.
●Optimal neutralization by time division proportional control.
●Tank material: SS400 + modified epoxy resin coating, SUS, FRP, and PVC are also available.
Raw water flows into the neutralization tank, and chemicals are injected and agitated according to the pH value of the raw water, then naturally discharged while the raw water is continuously neutralized.It is suitable for the treatment of wastewater that flows into the system continuously.
The standard pH range that can be handled in a single-stage treatment is pH 4 to 11.If the pH range is greater than this, a 2- or 3-stage treatment with multiple tanks is expected, with coarse neutralization in the first stage and fine adjustment in the second and subsequent stages.
*Neutralization reactions may require more chemicals than the calculated value due to factors that inhibit the reaction of chemicals.
We also offer neutralization titration test using sample water. Please feel free to contact us.

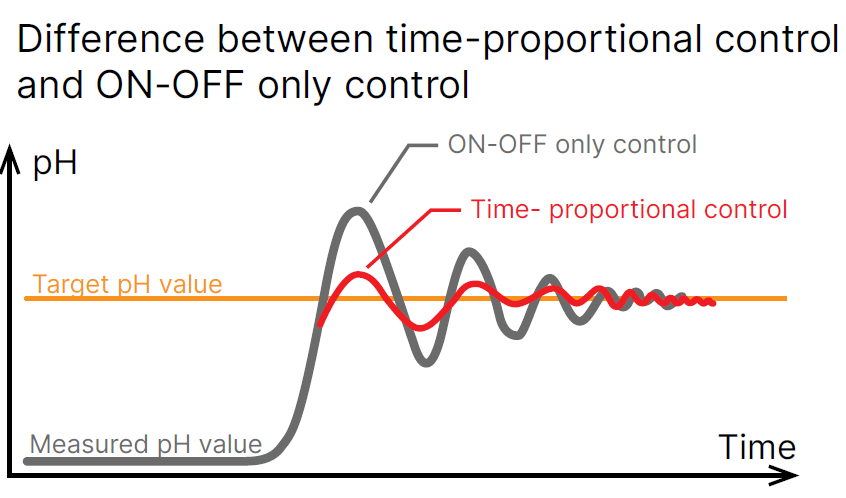

What is Time-Proportional Control
This is a control method to suppress hunting (excessive back-and-forth between the target value) caused by excessive chemical injection in pH neutralization.
The amount of chemical required for pH neutralization decreases as the target pH value is approached, but if the metering pump is operated at a constant rate, the target pH value will be greatly reduced due to over-injection of the chemical (e.g., ON-OFF only control). To prevent this, continuous operation is performed when the pH value is far from the target pH value, intermittent operation can be used to gradually bring the pH value closer to the target value. This control method is called time-proportional control. By varying the pump operation time proportionally to the target pH value, this prevents excessive injection of chemicals and ensures smooth adjustment to the target pH value.
Applications
General factory wastewater/ Hospital wastewater/ Laboratory wastewater/ Concrete plant wastewater/ Rainwater in factories /Cleaning wastewater/ Boiler wastewater/ Adjustment to a pH value suitable for treatment
Specifications
Unit Specifications
| Model | Amount of treated water |
Capacity of neutralization tank |
Agitator (medium speed type) |
Chemical pump discharge rate (ml/min) |
Chemical injection tank |
Approximate dimensions (m) |
Equipment mass (Approx.) |
Operating mass (Approx.) |
|
|---|---|---|---|---|---|---|---|---|---|
| 60Hz | 50Hz | ||||||||
| TPC-01 | 1m3/hr | 0.25m3 | NKA4-002 0.2kW |
6～30 | 5～25 | 50L | 0.7W×1.4L×1.6H | 200kg | 500kg |
| TPC-03 | 3m3/hr | 0.75m3 | NTA4-002 0.2kW |
14～70 | 12～58 | 100L | 1W×1.73L×1.72H | 500kg | 1,400kg |
| TPC-06 | 6m3/hr | 1.5m3 | NTA4-004 0.4kW |
24～120 | 20～100 | 200L | 1.4W×2.08L×1.78H | 800kg | 2,500kg |
| TPC-10 | 10m3/hr | 2.5m3 | NTA4-007 0.75kW |
60～300 | 50～250 | 200L | 1.6W×2.25L×2.265H | 1,000kg | 3,700kg |
| TPC-20 | 20m3/hr | 5.0m3 | NTA4-015 1.5kW |
120～600 | 100～500 | 300L | 2W×2.77L×2.605H | 1,600kg | 6,900kg |
| TPC-30 | 30m3/hr | 7.5m3 | NTA4-022 2.2kW |
200～1000 | 160～800 | 500L | 2.5W×3.36L×2.815H | 2,000kg | 10,000kg |
Product Specifications
| Standard specification | Option | |
|---|---|---|
| Installation location | Indoor | Outdoor |
| Raw water temperature | Max 40℃ | － |
| Supported Chemicals | Sodium hydroxide, Sulfuric Acid, Hydrochloric Acid |
－ |
| Tank material | SS(TPC-01 PVC ONLY) | SUS304、FRP、PVC |
| Painting, internal surface treatment methods |
Modified epoxy resin | Rubber lining, FRP lining |
| External input-output | “External interlocking input Batch alarm output(No-voltage contact output)” |
No External interlocking input Individual alarm output (No-voltage contact output) |
| Power supply voltage | 3P200V | Operatable with a different voltage |
| Control Method | pH single control(Acidic _or Alkaline) | pH dual control |
| Equipment | Raw water pump inflow type(Circuit only) Neutralization tank Agitator for neutralization tank pH regulator pH electrode Common base Control panel Chemical tank Chemical injection pump |
Measuring tank Raw water flowmeter Raw water pump Raw water tank level switch pH recorder (with alarm circuit) 2- _or 3-stage treatment Treated water return valve Discharge pump Chemical tank level switch Liquid barrier for chemical tank Neutralization tank lid Neutralization tank drain valv |
*Please contact us for details on 2- _and 3-stage equipment _and other customizations

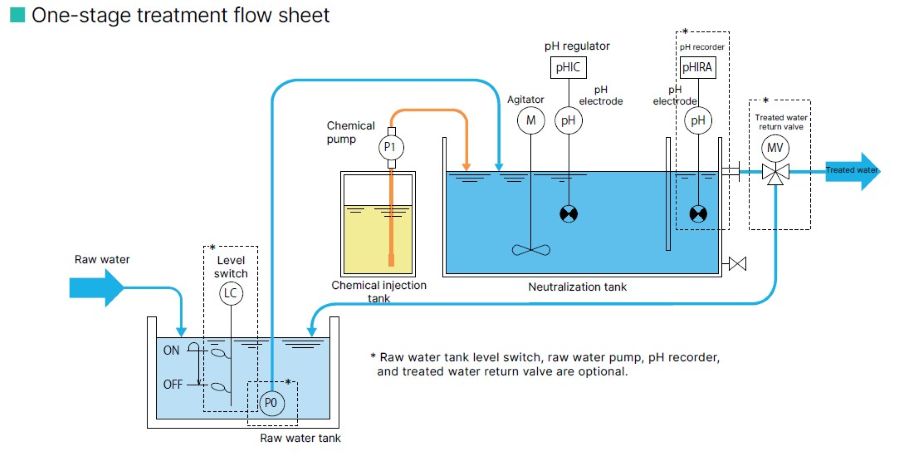

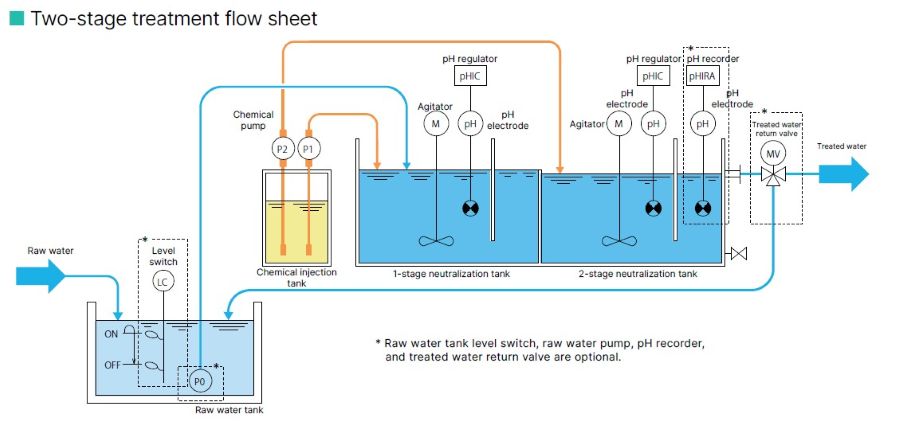

Flow Sheet
