The Dulcometer DMTa 2-wire transducer is a 4-20mA signal converter for pH / ORP / conductivity measurements.
Converts mV signals from pH sensors, etc. into mA signals, enabling long-distance transmission.

In addition, it also supports sensor calibration, and work efficiency can be improved by installing it at the site near the sensor.
In addition, since the signal line and power line are shared, power can be supplied from the connected dulcometer D1C, DAC, PLC, etc., and no on-site power supply is required.

● Water quality measurement in large factories
● mA analog signal output to the centralized control panel

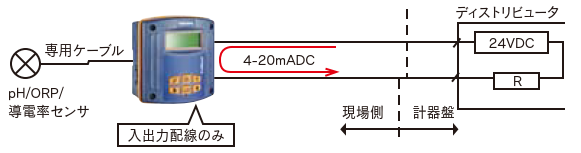

Example of installation

Model specifications

P type for pH / ORP		L type for conductivity
Measurement target	pH / ORP	Measurement target	Conductivity (2-pole type only)
Measurement range	pH: -1~15, ORP ±1200mV	Measurement range	1 ～ 200mS/cm
resolution	pH ： 0.01 / ORP ： 1mV	Cell constant	0.006 ～ 12.0 /cm
Correction item	Temperature compensation with Pt1000 / Pt100 (pH only)	resolution	1/1000 of the measuring range (Minimum 0.001 μ S / cm)
Temperature compensation range	0 ～ 150℃	Temperature compensation range	0 ～ 150℃

Common specifications

Power supply specifications	Two-wire transmission type 24VDC(16 ～ 40VDC)
Output specifications	Analog output: 4-20mA DC (load resistance 400 Ω, isolated output) x 1 PROFIBUS-DP specification 24VDC(16 ～ 30VDC)
Operating ambient temperature	-10 ～ 60℃
Protection class	IP65 equivalent Indoor specifications (IP54 equivalent when mounted on the panel surface)
Dimensions / mass	W 126 × H 136 × D 78mm / approx. 0.5kg
