DulcoMeter (D1C)

✔ Boasts sales record in more than 100 countries around the world. Standard model of water quality indicator
✔ P / PID control of chemical injection pump is possible
✔ Select from various control outputs (pulse signal, time division relay, analog signal, etc.)

Features

The dulcometer D1C indicates the concentration by combining with pH, ORP, residual chlorine, peracetic acid, hydrogen peroxide and all 12 types of Prominent sensors.(Tohkemy sensor is also supported)
Furthermore, by combining with a chemical injection pump, it is possible to adjust the water quality concentration by P / PID control.Control suitable for line control is also possible when combined with addition amount control.
In addition to the pulse output for the prominent pump, the control output can be selected from time division relay and analog signal output.

Use

● Neutralization equipment for factory wastewater, pH monitoring
● Circulation sterilization management of bathtubs and pools
● Sterilization management of drinking water and manufacturing water
● Water quality management of breeding aquarium
Such

specification

type Wall-mounted type(D1CbW) Control panel panel mounting type(D1CcD)
Measurement item pH, ORP, residual chlorine, total chlorine, chlorine dioxide, hypobromine, peracetic acid, hydrogen peroxide, dissolved oxygen, fluoride ions, ozone, (conductivity)
control method P or PID control Bidirectional control (measured value rise & fall)
Output specifications ・Pulse output: Pulse output for prominent pump x 2
・Analog output: (4-20mA DC-Load resistance 450 Ω-Insulated output) x 1 (select from measured value, correction value, control value)
・Relay output: (upper / lower limit alarm output or time-division relay) x 2 Instrument batch failure relay output x 1
Input specifications ・Sensor input terminal / temperature sensor connection terminal
・Control pose input x 1 point
Power supply / power consumption 100-230VAC ± 10% 50 / 60Hz / 25VA or less
Protection class IP65 IP54
Ambient temperature / humidity 0 to 50 ° C 95% or less No condensation
Mass / size 1.2kg / W200×H198×D76(mm) 1.2kg / W96×H96×D168(mm)
(Panel cut size □ 90mm)

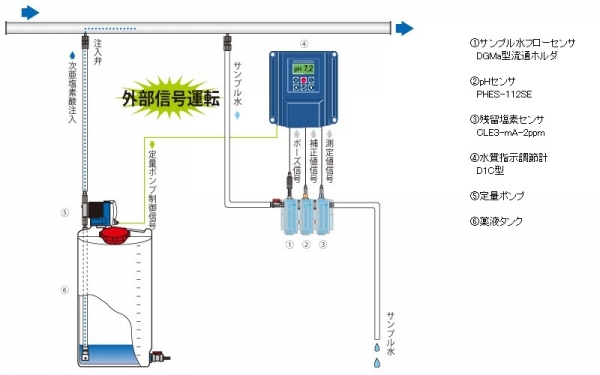

Flow diagram
