Water quality measurement sensor (DulcoTest)
Dulco Test is a high-performance water quality measurement sensor that condenses Prominent's abundant know-how and advanced technology.
✔ "Potential type" represented by pH
✔ "Septal polarograph type" represented by residual chlorine
✔ "2-electrode type / electromagnetic conduction type" for conductivity measurement
Lineup of 3 methods.
Potential sensor
Dulco test potential type sensors are available in various types that can handle various measurement conditions.
●pH
High alkali compatible type (~ pH14), hydrofluoric acid compatible type (made of epoxy), high temperature compatible type (~ 100 ° C), low conductivity compatible type (50 μS / cm ~), solid-containing contaminated water compatible type, etc.
●ORP
Low conductivity type (50 μS / cm ~), high temperature type (~ 100 ° C), solid-containing contaminated water compatible type, etc.
pH sensor
| Model | Measurement target / range | Heat resistance / pressure resistance | conductivity | Application examples / features |
|---|---|---|---|---|
| PHES 112 SE | Clear water / pH1～12 | ～ 60℃ /0.3MPa | ＞150μS/cm | Pool, drinking water |
| PHER 112 SE | SS Water content / pH1～12 | ～ 80℃ /0.6MPa | ＞ 50μS/cm | Cooling water, sewage, etc. |
| PHEP-H 314 SE | Clear water / pH3 ～14 | ～100℃ /0.3MPa ～ 25℃ /0.6MPa |
＞150μS/cm | Chemical factories, etc. |
| PHEX 112 SE | SS Containing (turbid water) / pH1～12 | ～100℃ /0.3MPa ～ 25℃ /1.6MPa |
＞ 500μS/cm | For water containing emulsion, sludge and suspension |
| PHEF 012 SE | Contains clear water and fluorine /pH0 ～12 |
～ 50℃ /0.7MPa | ＞150μS/cm | Electroplating, semiconductor factory wastewater (resin shaft) |
ORP sensor
| Model | Measurement target / range | Heat resistance / pressure resistance | conductivity | Application examples / features |
|---|---|---|---|---|
| RHES-Pt-SE | Clear water ±1000mV | ～60℃/0.3MPa | ＞150μ S/cm | Pool / drinking water |
| RHES-Au-SE | Clear water ±1000mV | ～60℃/0.3MPa | ＞150μ S/cm | For electrolytic hypochlorite |
| RHER-Pt-SE | SS Contains ±1000mV | ～80℃/0.6MPa | ＞50μ S/cm | Cooling water, sewage, etc. |
| PHEX-Pt-SE | SS Containing (turbid water) ±1000mV | ～100℃/0.6MPa | ＞500μ S/cm | Emulsion suspension sludge containing water |
| ～25℃/0.6MPa |
Septal polarographic sensor

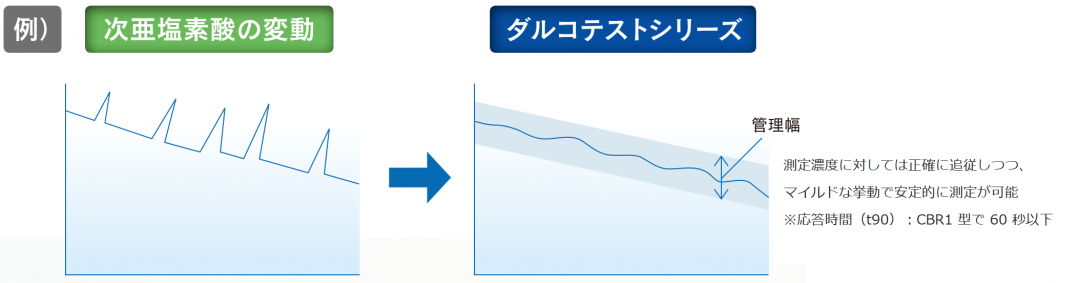

The Dulcotest diaphragm polarograph sensor selectively detects the substance to be measured using the proprietary diaphragm technology. Equipped with an accurate signal conversion function, it realizes speedy and stable measurement.
Features
● Since the measurement target is detected via the diaphragm and electrolyte, stable measurement is possible without being affected by conductivity.
● Economical consumables with only membrane cap and electrolyte
● Electrodes have a long life because there is no sliding of beads, etc.
● Built-in converter in the sensor・The sensor can be installed separately from the display meter
It is a global standard sensor that supports various applications with a wide lineup of measurement ranges and targets.
Free residual chlorine
| Model | Measurement range | Measurement target | Withstand voltage | Heat resistant | Correspondence pH |
|---|---|---|---|---|---|
| CLE3 Septal type | ～ 100.0mg/l | Hypochlorous acid (HClO) | ～ 0.1 MPa | 5 ~ 45 ℃ | pH 5.5 ~ 8.0 |
| CLR1 Septal type | ～ 1,000.0mg/l | Hypochlorous acid (HClO) | ～ 0.1 MPa | 5 ~ 45 ℃ | pH 5.5 ~ 8.0 |
| CGE3 Septal type | ～ 10.0mg/l | Free chlorine (HClO+OCl¯) | ～ 0.3 MPa | 5 ~ 45℃ | pH 5.5 ~ 9.5 |
| CBR1 Septal type | ～10.0mg/l | Free chlorine (HClO+OCl¯) | ～ 0.1 MPa | 5 ~ 45℃ | pH 5.0 ~ 9.5 |
| CTE1 Septal type | ～10.0mg/l | Total chlorine (Residual + Bond) |
～ 0.3 MPa | 5 ~ 45℃ | pH 5.5 ~ 9.5 |
The model exists within the above measurement range. Please contact us for details.
Main applications
● Water quality management of bathtubs and pools
● Sterilized water management in food factories
● Water quality management of drinking water and manufacturing water
● Water quality management of breeding water quality
Hydrogen peroxide sensor
| Model | Measurement range | Heat resistance / pressure resistance | pH | User |
|---|---|---|---|---|
| PER1 Septal type | ～ 2,000 mg/l | ～ 50℃ / 0.1MPa | pH2.5 ～ 11 | Wastewater monitoring of semiconductor factories, sterilization and wastewater monitoring of beverages, foods and general factories |
| PEROX Septal type With converter |
～ 20.0 mg/l | ～ 40℃ / 0.2MPa | pH2.5 ～ 10 | |
| ～ 200.0 mg/l | ||||
| ～ 2,000 mg/l |
Peracetic acid sensor
| Model | Measurement range | Heat resistance / pressure resistance | pH | Use |
|---|---|---|---|---|
| PAA1 Septal type | ～ 200 mg/l | ～ 45℃ / 0.3MPa | pH1.0 ～ 9 | PET bottle rinser water monitoring, vegetable / meat surface sterilized water concentration monitoring |
| ～ 2,000 mg/l | ||||
| ～ 5,000 mg/l | ||||
| ～ 10,000 mg/l |
Ozone sensor
| Model | Measurement range | Heat resistance / pressure resistance | pH | Use |
|---|---|---|---|---|
| OZE3 Septal type | ～ 2.0 mg/l | ～ 45℃ / 0.1MPa | pH4 ～ 11 | Ozone sterile water concentration monitoring |
| OZR1 Septal type (stain resistant) |
Fluorescent dissolved oxygen sensor
| Model | Measurement range | Heat resistance / pressure resistance | pH | Use |
|---|---|---|---|---|
| DO3 Fluorescent | ～ 20.0 mg/l | ～ 50℃ / 0.2MPa | pH6 ～ 9.5 | Monitoring of breeding aquariums, activated sludge, irrigation water |
There is a lineup other than the above measurement targets. Please contact us for details.
Conductivity sensor
The Dulcotest 2-electrode type / electromagnetic conduction type sensor has many specifications such as corrosion resistant material, high temperature compatible type, and various installation methods to meet all the measurement conditions required in various processes.
● 2-electrode type: Measurement target that is not corrosive to metal and has low contamination
● Electromagnetic conduction type: Confirmation of chemical concentration and measurement target with severe contamination
We have a wide range of measurement ranges from a maximum of 50 μS / cm to 2,000 mS / cm.
2-electrode conductivity sensor
| Model | Measurement range | Heat resistance / pressure resistance | Installation method | Main applications |
|---|---|---|---|---|
| LMP-001 | 0.01 ～ 50 μ S/cm | ～70℃/1.6MPa | Distribution holder[G3/4] | Pure water / RO system |
| LMP-01 | 0.1 ～ 500 μ S/cm | ～70℃/1.6MPa | Distribution holder[G3/4] | Ion-exchanged water / desalination system |
| LFTK-1 FE | 0.01 ～ 20 m S/cm | ～80℃/1.6MPa | Distribution holder[PG13.5] | Drinking water, industrial water, etc. |
There is a lineup other than the above. Please contact us for details.
Electromagnetic conductivity type conductivity sensor
| Model | Measurement range | Heat resistance / pressure resistance | Installation method | Main applications |
|---|---|---|---|---|
| ICT5 | 0.2 ～ 2,000 mS/cm | ～80℃/1.0MPa | Dedicated fitting | Various chemicals / process water, CIP management |
| ICT5-IMA | ～80℃/0.1MPa | Immersion type integrated type | ||
| ICT2 | 0.02 ～ 2,000 mS/cm | ～125℃/1.6MPa | G3/4 |
