● It protects dry-running by monitoring load current of all three-phase during operation of magnetic pumps.
● Automatically indicating the load current alternatively every 5 minutes during operation.
● Free power source from 100 to 250V for control.
● Applicable to inverter control from 20 to 400Hz.
● Simple installation with the built-in CT.

Common Specifications

Measuring current range		0.5～60Ａ
Starting delay time		1 to 200 seconds
Operating delay time		1 to 30 seconds
Reset		Manual / Control power source shut-off
Operating characteristic		Instant
Ambient temperature		-20～60℃
Installation		35mm DIN rail
Control power source		100～250V
Power consumption		3W max.

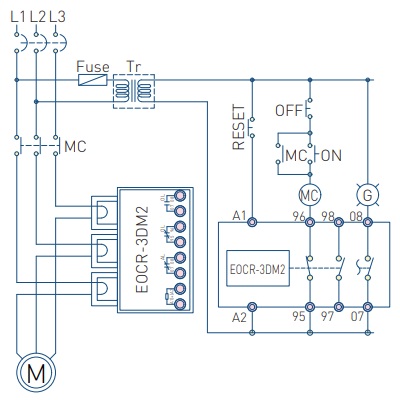

Example of Wiring Diagram

To shut at 95-96 and open at 97-98 when tripped.
Output terminals 97-98 are for alarm output and can be used for alarm lamps, etc.
The output terminals 07-08 are shut after starting operation and opened when tripped.
※This is the operation setting at the time of shipment from our factory.
