Fluoride Ion Removal (Acticite F)
The groundwater in some areas contains fluoride ions. In case the concentration is more than 0.8mg/L under the tap water standard, a removal is necessary.

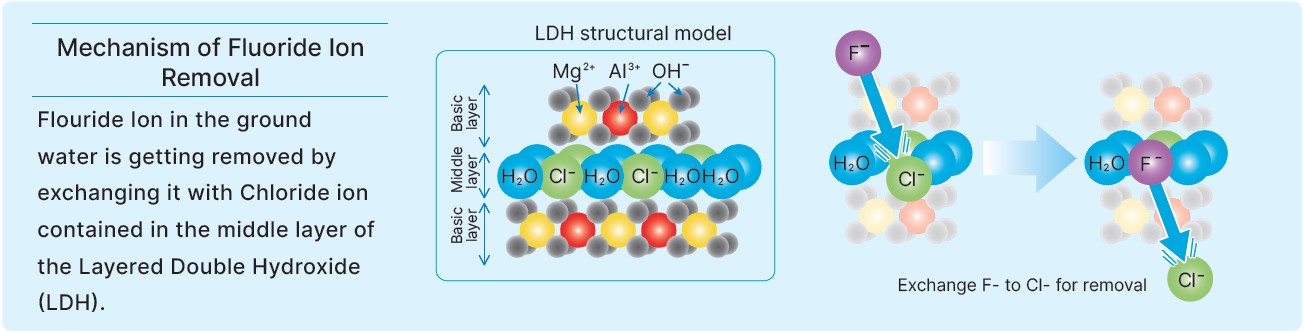

Acticite F is the granulated filter media to use the LDH: Layered Double Hydroxide, which has the special fluorine ion removal ability for water treatment. We offer the proper system for this media.
Filter Media

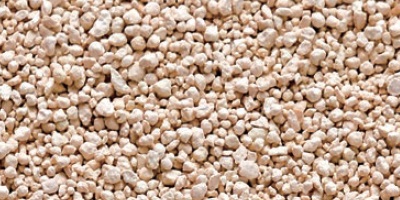

Acticite F
●Can treat fluoride ions to levels below the water quality standard (0.8 mg/L).
●Can be used as an alternative to bone charcoal, which was frequently used for fluoride ion removal.
●Has passed leaching tests for water supply equipment and materials.

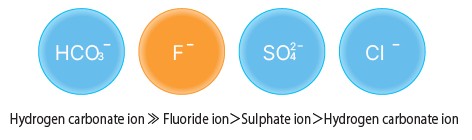

Acticite F has the ion selectivity. Hydrogen carbonate ion, which is more abundant in groundwater, has high selectivity compared to fluorine ion, and decreases Acticite F’s life notably. Therefore, hydrogen carbonate ion is necessary to be removed before removal of fluorine ion.
* For more information on fluorine ion removal, please contact our sales staff.
Product Specifications
| Operating Environment |
Place _of installation | Indoor _or outdoor |
|---|---|---|
| Temperature | 0～40℃ | |
| Raw Water | Water temperature | 0～40℃（No freezing） |
| Water quality | Fluorine ion: 0.8~20m/L | |
| General Conditions _of Use |
Filter material type | Acticite F |
| Filteration velocity | Not more than SV10h-1 | |
| Max. operating press. |
0.3MPa | |
| Treated Water |
Water quality | Fluorine ion: not more than 0.8m/L |
| Backwash Water |
Backwash velocity | LV20m/h |
