● Equipped with an automatic mode that allows easy adjustment of the discharge amount in “l/h”
● Supports low pulsation discharge _and high viscosity suction with advanced solenoid control
● Click wheel interface that allows intuitive operation

● Virtual discharge pressure can be monitored from solenoid load
● Control ratio 1: 2,000

Discharge rate ： 38.3 – 750.0 mL/min
Discharge pressure ： – 1.6 MPa
Discharge reproduction accuracy ： ±2% (Based on manufacturer’s recommended conditions)
Allowable ambient temperature / humidity ： -10～45℃ / 95% less (No condensation)
Power supply ： AC100 – 230V ±10% 50/60Hz
Protection class ： IP65 Indoor installation

Liquid-end parts

<Liquid-end parts material>
Choose from 5 types：PP(polypropylene) / NP(acrylic) / PV(PVDF) / SS(SUS316) / TT(PTFE/carbon)

<Connection diameter>
Compatible with many hose diameters (4 x 9, 6 x 11, etc.) and can be connected to pipes and flanges

<Compatible with high-viscosity chemicals>
Compatible with high-viscosity chemicals up to 3,000 mPa ・ s (cp) * Special valve (PVT4 type) only

Drive unit

With the original solenoid control, the stroke speed can be set individually on the suction side and discharge side.

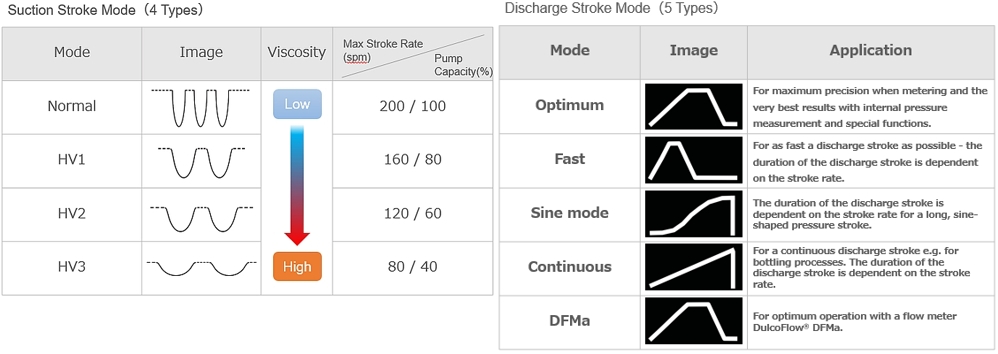

It is possible to select 4 patterns in the suction mode and 5 patterns in the discharge pattern, and it corresponds to the optimum operation according to the application and liquid property such as chemical injection of high viscosity liquid and volatile liquid, as well as low-pulsation chemical injection.

<External signal operation>
Supports pulse signal, analog signal, and remote ON / OFF operation

<Various abnormality detection>
Detects pressure abnormality, gas lock, analog signal input abnormality
Can be connected to a contact output type flow monitor and the flow meter “DULCOFLOW” dedicated to metering pumps

<Timer operation>
Automatic operation can be set by day of the week and time

Model specifications

Pump size		maximum Discharge pressure (MPa)	Maximum discharge rate		Number of strokes (spm)	Standard hose / SS (mm)		Suction lift (m)		Power consumption		mass(kg)
			(ml/min)	(L/h)								resin/SS
standard	1602	1.6	38.3	2.3	200	4×6 / φ6		6		25W		3.7 / 5.0
	1604	1.6	60.0	3.6	200	4×6 / φ6		6		25W		3.7 / 5.0
	0708	0.7	126.0	7.6	200	5×8 / φ8		6		25W		3.7 / 5.0
	1009	1.0	150.0	9.0	200	5×8 / φ8		6		30W		5.2 / 7.0
	0414	0.4	225.0	13.5	200	5×8 / φ8		3		25W		3.7 / 5.0
	0715	0.7	241.0	14.5	200	5×8 / φ8		4		30W		5.2 / 7.0
	0220	0.2	328.0	19.7	200	9×12 / φ12		2		25W		3.7 / 5.0
	0424	0.4	400.0	24.0	200	9×12 / φ12		3		30W		5.2 / 7.0
	0245	0.2	750.0	45.0	200	9×12 / φ12		2		30W		5.2 / 7.0
For high pressure	2002	2.0	34.0	2.05	200	– / φ6		6		25W		3.7 / 5.0
	2504	2.5	63.0	3.8	200	– / φ6		6		30W		5.2 / 7.0
