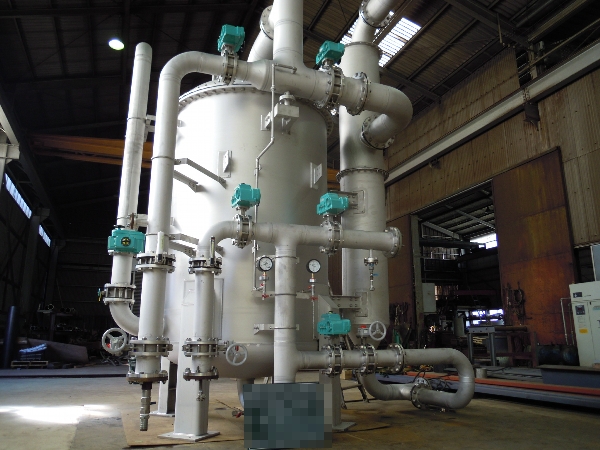

Ion Exchange Resin Towers

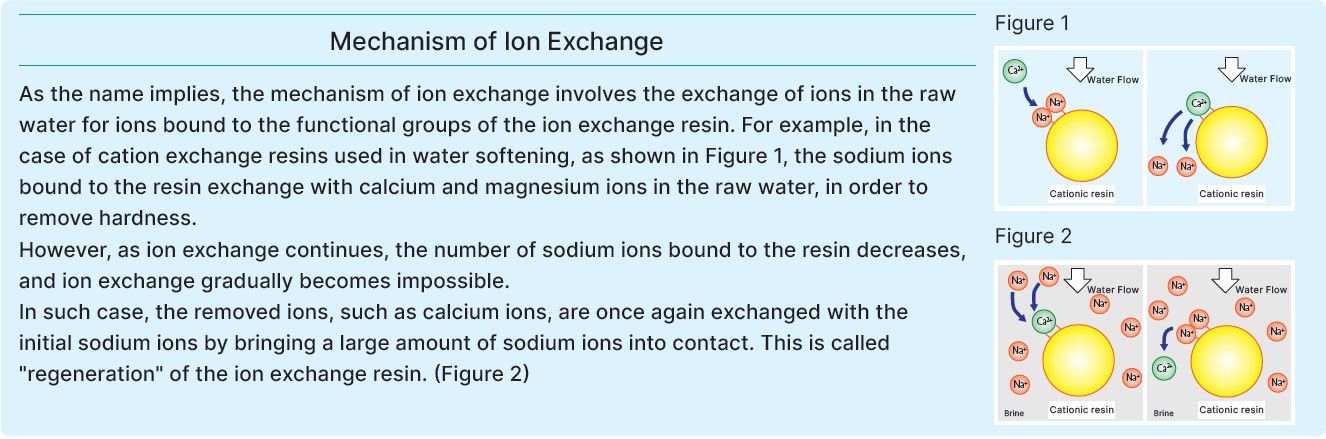

Japanese tap water is transparent and cleanly treated. However, this clear water contains ions such as sodium, calcium, and chlorine, as well as silica. Therefore, a removal may be necessary for an use as manufacturing water. These ions cannot be removed by physical filtration using filter sand or anthracite. An ion exchange resin tower is a device that removes unwanted ions from water by exchanging the ions held by the resin with the ions in the water that need to be removed.
Filter Media

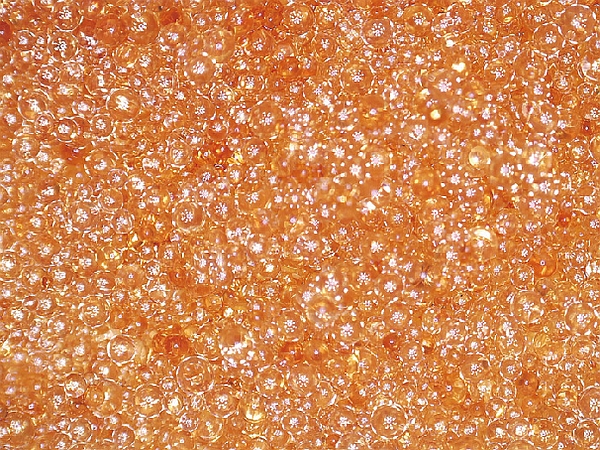

ActiResin
●The lineup includes both cation exchange resins and anion exchange resins.
●Select cationic resin for soft water production.
●For pure water production, both types of resins can be used in a mixed bed (one-tower type) or separately (two-tower type).

Product Specifications
| Water softening | Pure water treatment | ||
| Operating Environment |
Place of installation |
Indoor _or outdoor | |
| Temperature | 0~40℃ | ||
| Raw Water | Water temperature |
0~40℃(No freezing) | |
| Water quality | Hardness object contained | Ionized objectcontained | |
| General Conditions of Use |
Filter material type |
Cation resin | Cation resin+ anion resin |
| Filteration velocity |
SV8~20m/h | ||
| Max. operating press. |
0.3MPa | ||
| Treated Water |
Water quality | Hardness: not more than 10m/L |
Conductivity: not more than 2μS/cm |
