* Liquid polymer dissolver applying powder dissolving techniques
* Corresponding to unitization in any combinations of undiluted solution tank, undiluted solution transfer pump and polymer solution injection pump.
* Wide variety tank with PVC, SUS304, FRP
* Applicable to outdoor installation
* Automatic operation just after installation
* Conpact and easy operation

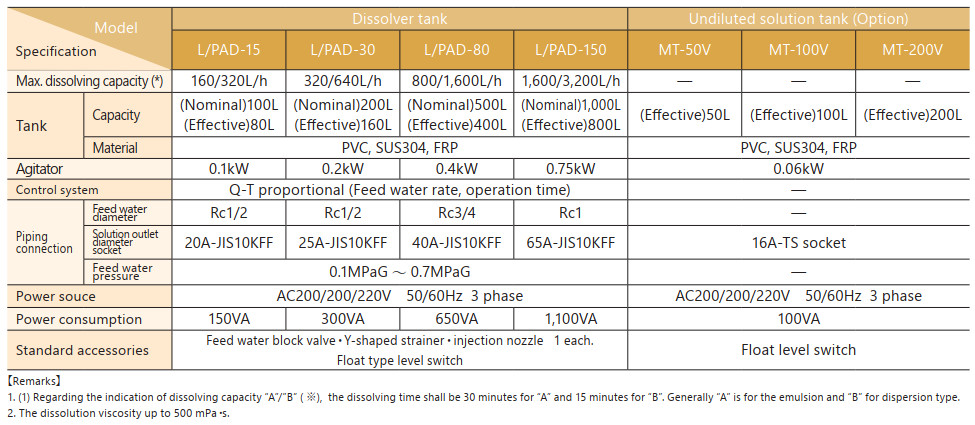

Model explanation

L/PAD	–	30	V	–	N	–	20	5
		[1]	[2]		[3]		[4]	[5]

Dissolving capacity	15:Emulsion 160L/h Dispersion 320L/h 30:Emulsion 320L/h Dispersion 640L/h 80:Emulsion 800L/h Dispersion 1,600L/h 150:Emulsion 1,600L/h Dispersion 3,200L/h
Dissolving tank material	V:PVC F:FRP S:SUS304
Option	N:Nozzle change T:Additional dosing pump P:Additional undiluted solution tank unit MT+ undiluted solution tank agitator Z:Others
Voltage	20:200V 22:220V 40:400V 44:440V
Frequency	5:50Hz 6:60Hz

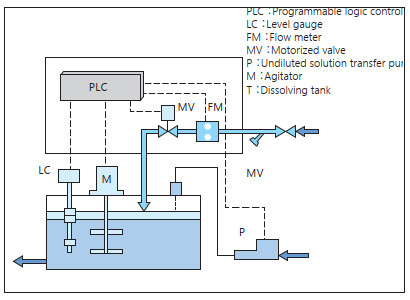

Flow sheet

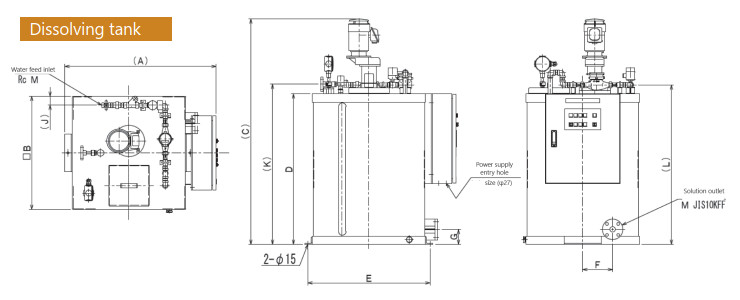

	A	B	C	D	E	F	G	H	J	K	L	M	Product weight(kg)
L/PAD-15V	570	450	1,025	610	500	115	80	20A	30	675	670	1/2	Approx.35
L/PAD-30V	755	499	1,390	950	560	150	80	25A	30	1,015	1,010	1/2	Approx.119
L/PAD-80V	1,015	760	1,515	1,010	820	200	100	40A	60	1,075	1,070	3/4	Approx.120
L/PAD-150V	1,205	1,000	1,740	1,150	1,060	300	150	65A	100	1,215	1,215	1	Approx.121

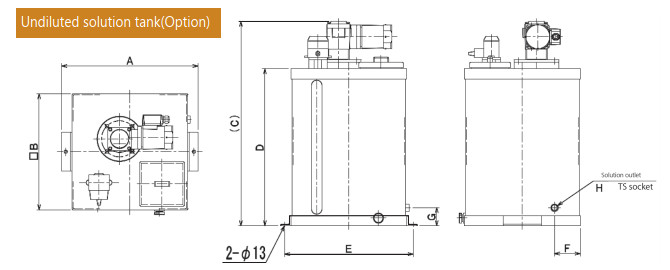

	A	B	C	D	E	F	G	H	Product weight(kg)
MT-50V	450	372	645	460	420	100	70	16A	Approx.35
MT-100V	530	450	795	610	500	100	70	16A	Approx.119
MT-200V	580	499	1,135	950	550	100	700	16A	Approx.120
