● Resin material for liquid-end parts, high resistance to chemicals.
● This pump can keep water for self-priming in the pump casing. It is no need to pour water for operation without initial operation.
● The sealing part is noncontact state and free from deterioration, wearing and heat generation. In addition, it is not affected by slurry and liquid to be used.
● The sealing impeller forms fluid seal to protect liquid leakage during operation. The CSS prevents liquid leakage under suspension.

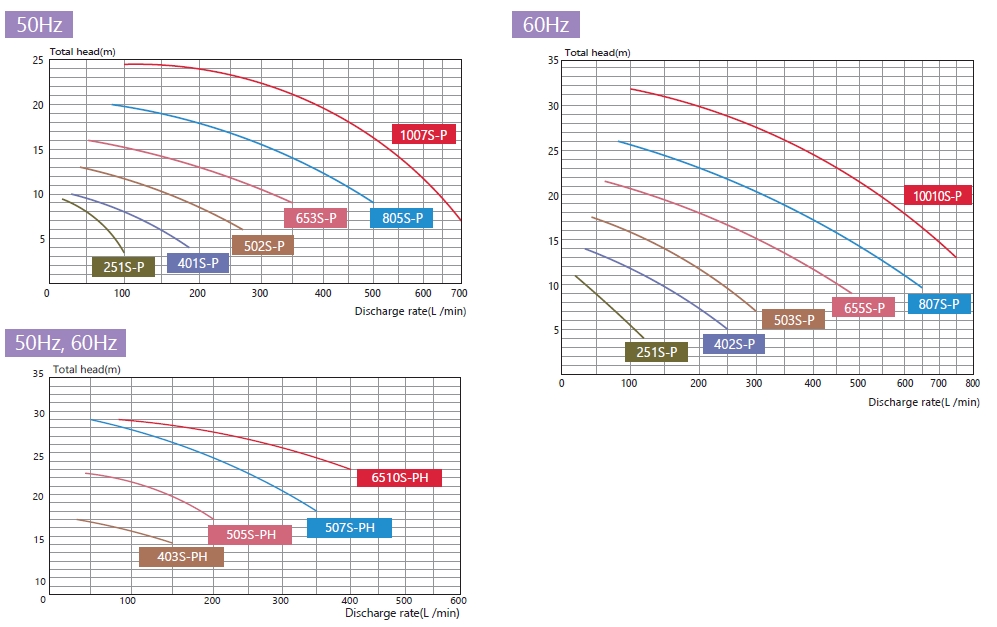

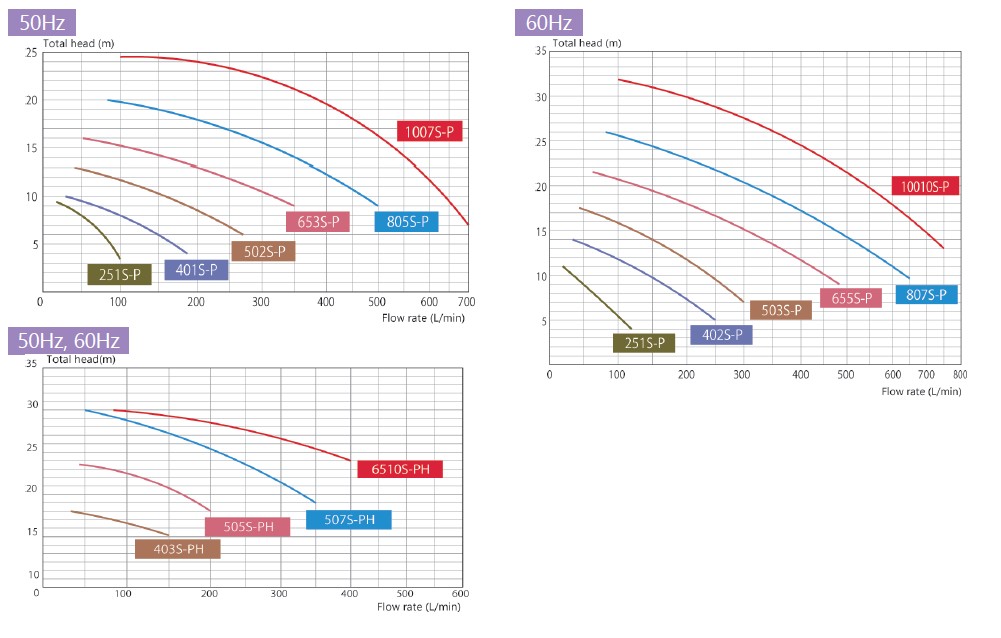

performance curve

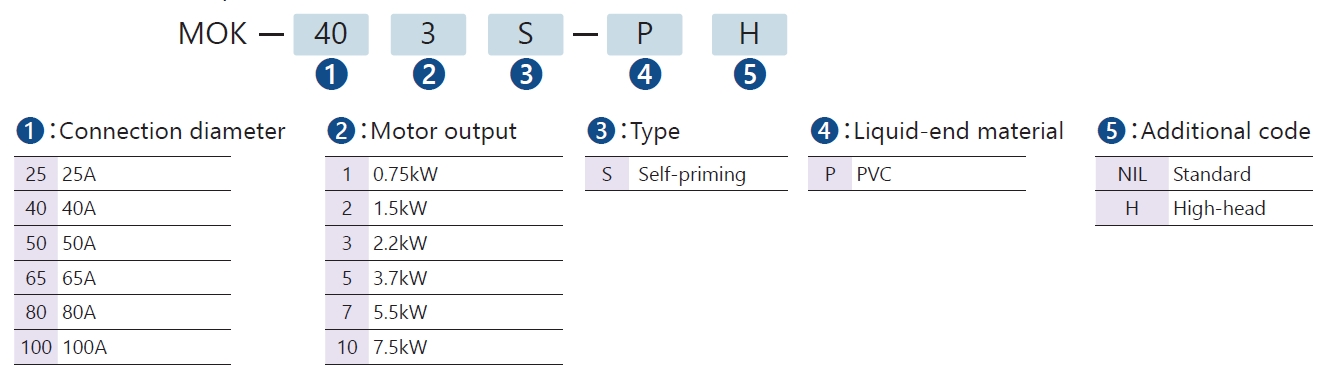

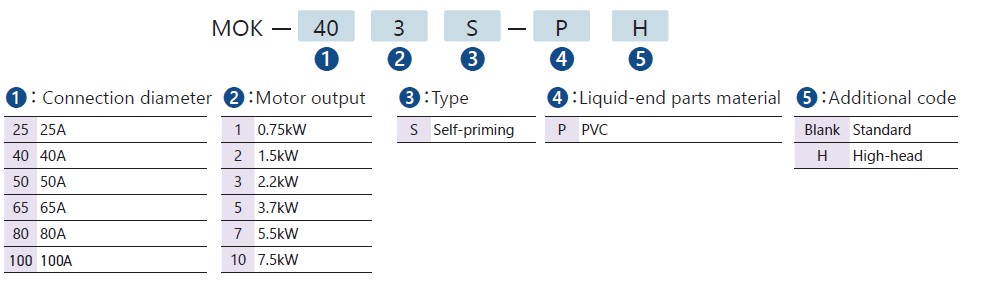

Model Code Explanation

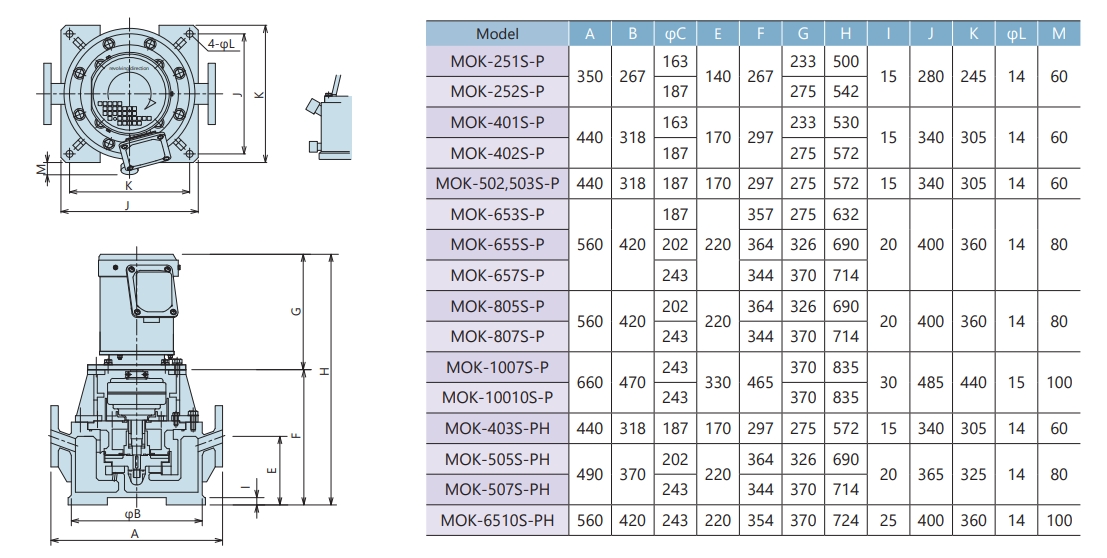

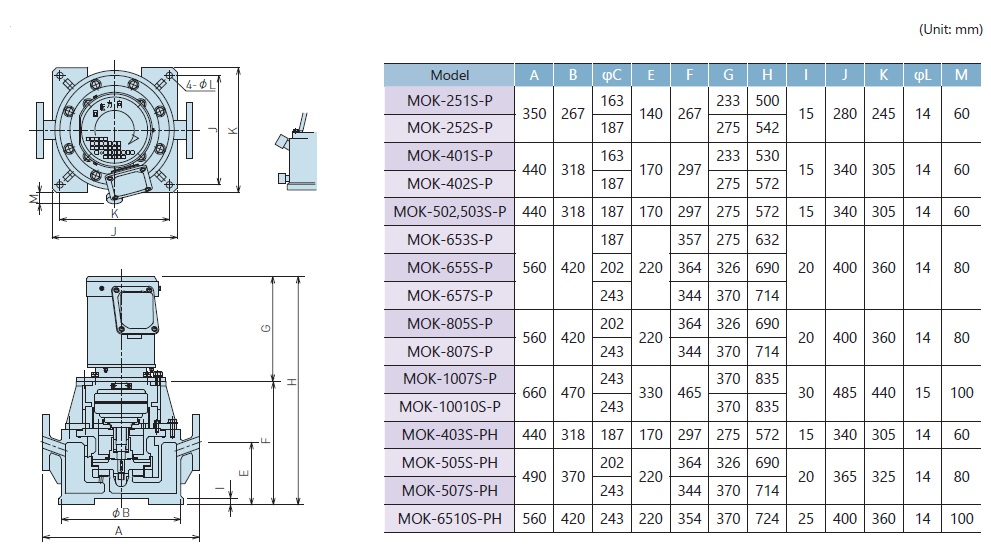

Dimensions

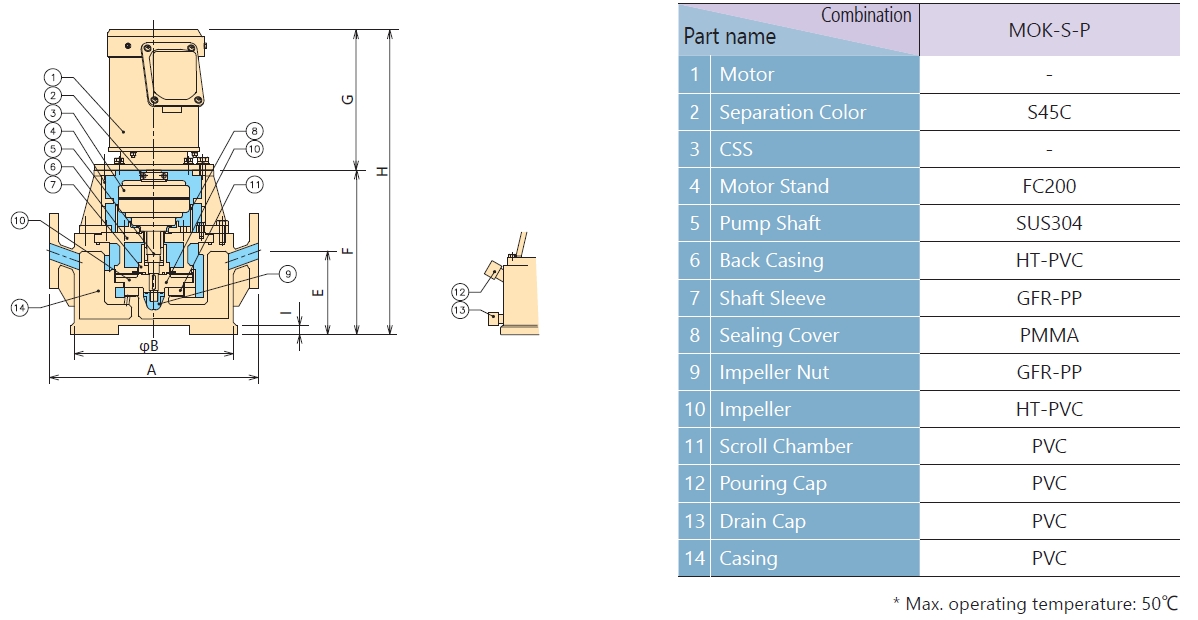

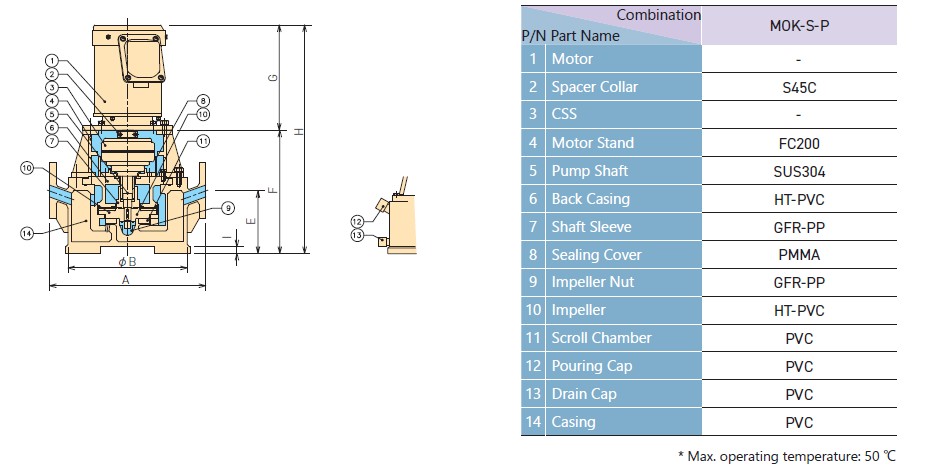

Liquid-end parts specifications
