● Resin material for liquid-end parts, high resistance to chemicals.
● Machining PP from thick plates.
● High resistance to heat and osmosis, and good peelability.
●Most suitable for electroless copper plating and electroless gold plating.
●Special CSS (Centrifugal Seal System)
* Since the seal section operates in a non-contact and no-liquid state, there is no degradation, wear, or heat generation. Furthermore, it is not affected by slurry or the liquid used.
* The sealing impeller forms fluid seal to protect liquid leakage during operation. The CSS prevents liquid leakage under suspension.
●This pump can be used for both self-priming and non-self-priming installation.
The special CSS seal prevents liquid leakage.

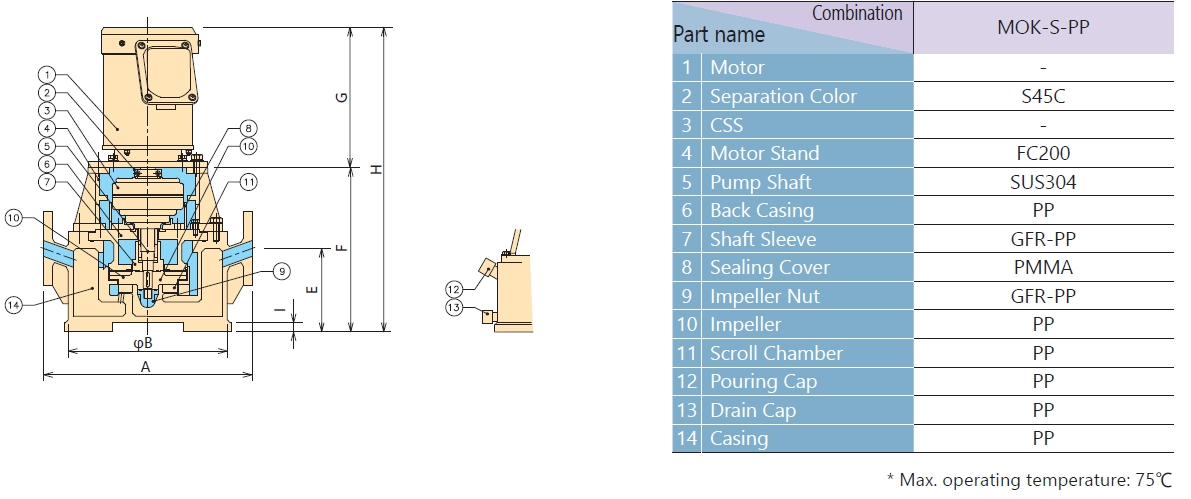

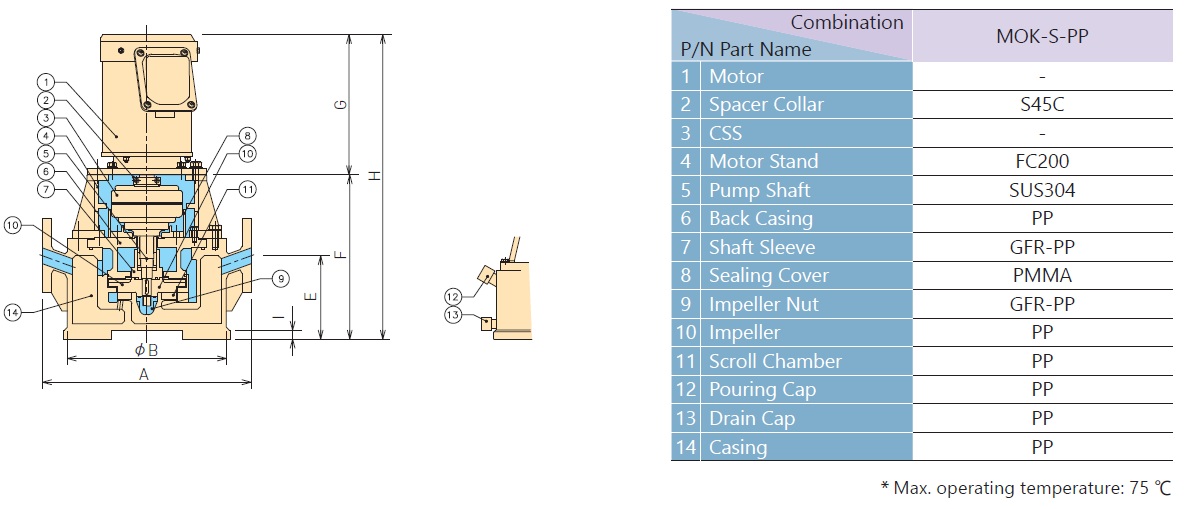

Liquid-end parts specifications

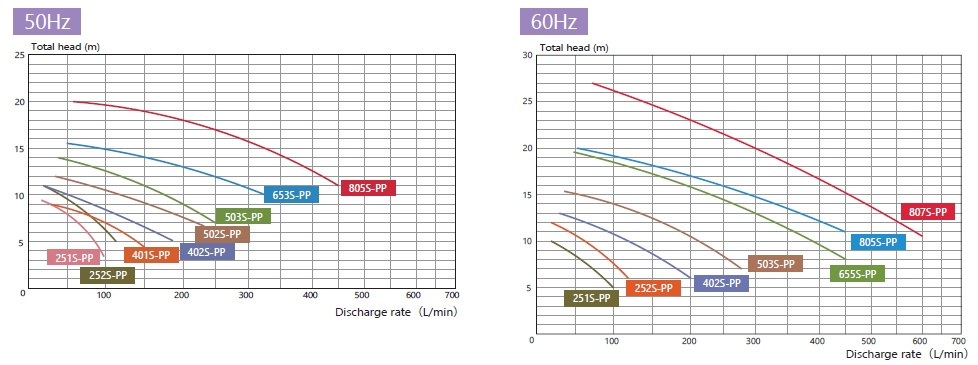

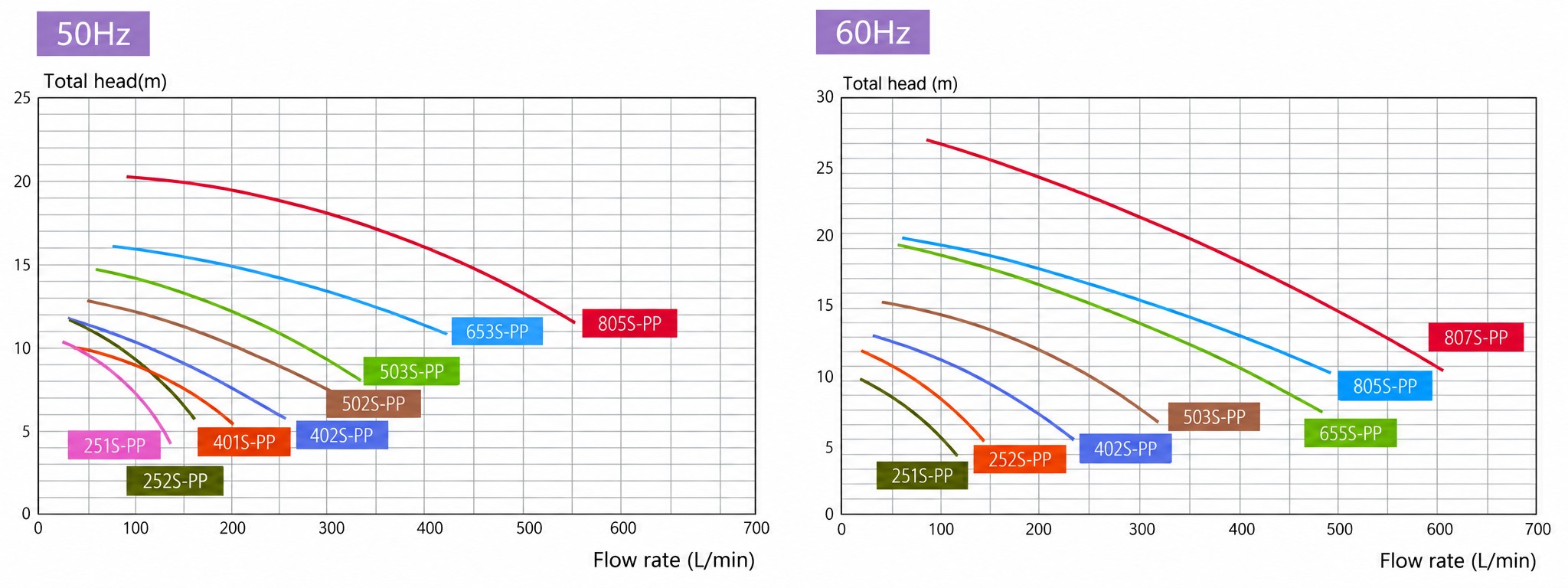

Performance curve

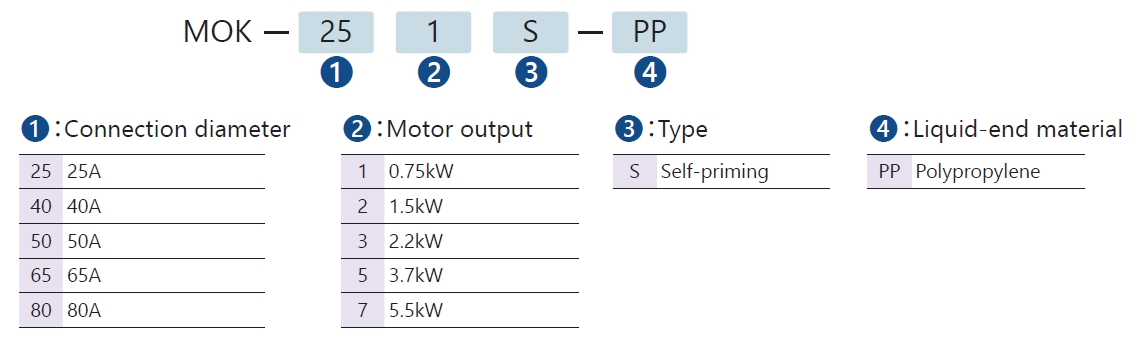

Model Code Explanation

MOK	–	25	1	S	–	T2
		[1]	[2]	[3]		[4]

[1]Connection diameter		25：25A 40：40A 50：50A 65：65A 80：80A
[2] Motor output		1：0.75kW 2：1.5kW 3：2.2kW 5：3.7kW 7：5.5kW
[3] Type		S：Self-priming
[4] Liquid-end parts material		PP：Polypropylene

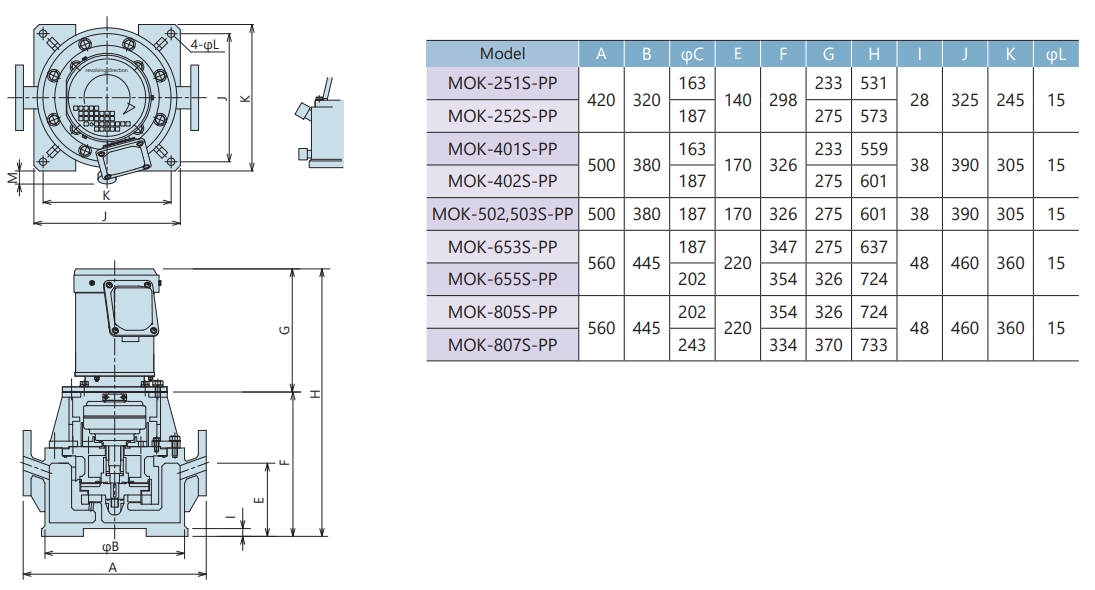

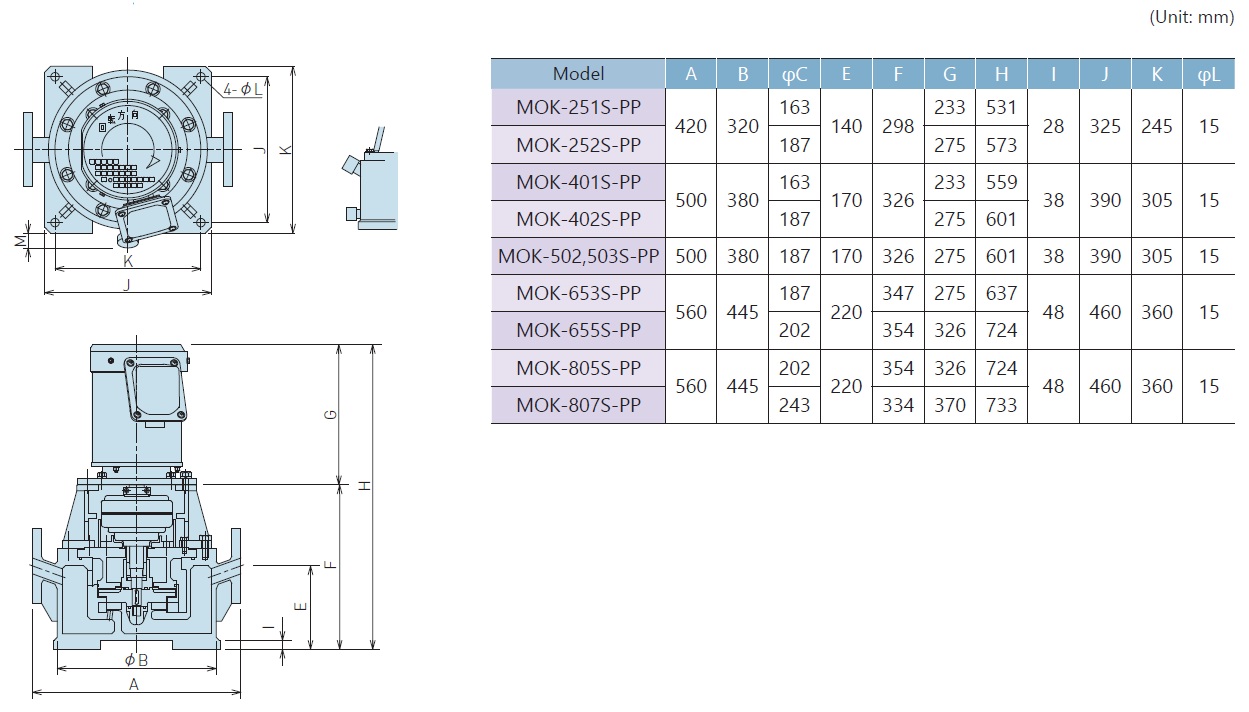

Dimensions

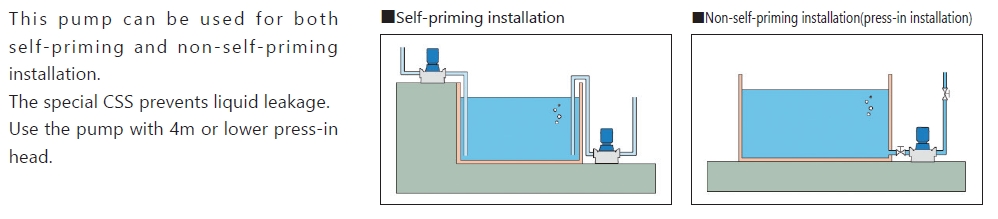

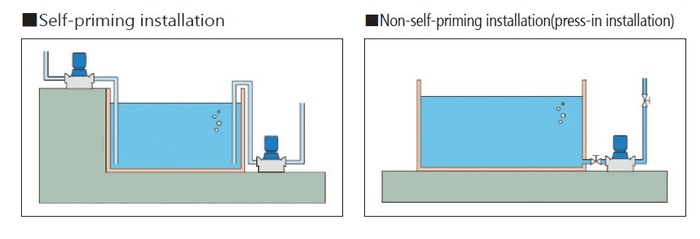

Notes for installation

This pump can be used for both self-priming and non-self-priming installation.
The special CSS seal prevents liquid leakage.
Please use the pump with 4m or lower press-in head.
