Common

<Applicable for high discharge pressure > (MP-L30P/N)
Max. discharge pressure is 1.6MPa. It enables a continuous injection to injection point at 1.0MPa of back pressure.

<Compatible with various control signals >
It is compatible with “contact signal (pulse) input” and “analog signal (0/4~20mA) input” to enable automatic operation mode, and various operation modes with remote ON/OFF, batch operation and special operation function.

* Optional control cable is necessary.

Standard type / Non-gas lock type

<MP-L30/60/200P (Standard type)>
● Adoption of Highly Corrosion-Resistant Resin (PVDF) Heads
Highly functional resin PVDF (polyvinylidene fluoride), which is resistant not only to general chemical solutions but also to acids and alkalis, is used for the pump head and fittings.
● Manual air extract function is standard equipment
Air in liquid-end parts is easily extracted by rotating the air extract valve even while pump operation.

<MP-L30/60N (Non-gas lock type)>
The most suitable for injection of bubble generating chemicals such as Sodium hypochlorite, etc.
● Reliable air extract function
Quantitative injection without gas lock by air extract function in liquid-end parts working automatically even for chemical liquids prone to bubble formation.
● Acrylic pump head: liquid moving in the pump head is visible
Generation of the gas lock (air lock) and discharge status can be checked from outside.

Three control operation functions

●Manual operation mode

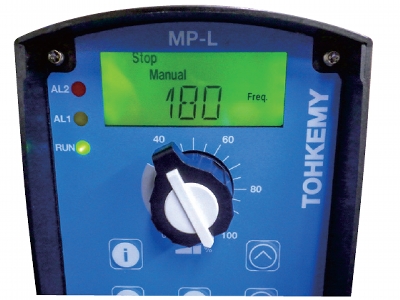

Select ON/OFF and stroke frequency (0 to 180spm) on the operation panel of pump body. By means of control cable, it is externally operatable by ON/OFF signal from outside without pump power off. (Remote ON/OFF function)

●Digital input (pulse) operation mode
Automatically controls the number of pump strokes in response to external pulse signals. Automatic control can be performed in combination with a pulse output type flow meter. Normally, the pump stroke count is also 1 pulse (synchronized) per 1 input pulse, but it is also possible to set a multiplication (1:n) mode or a division (n:1) mode.

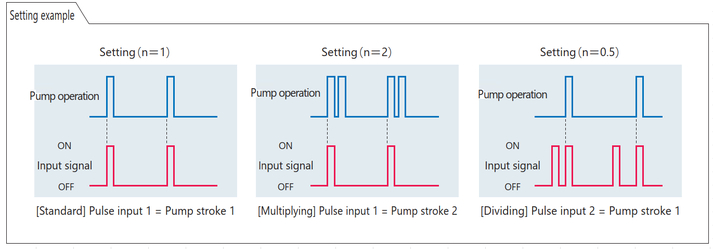

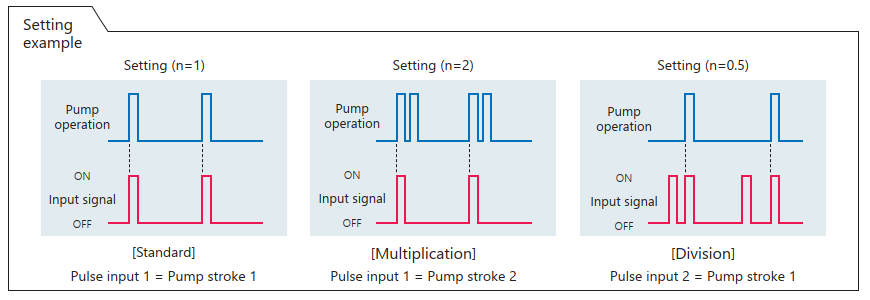

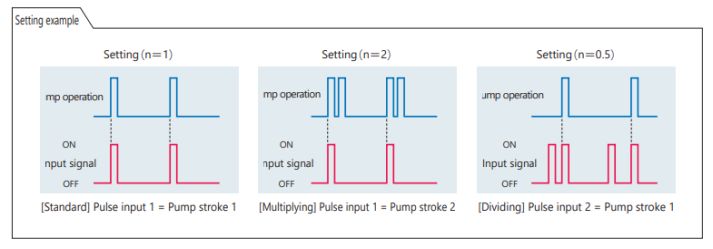

Multiplying setting:
When increasing the number of pump stroke pulses relative to the number of pulse inputs, there is a memory function that stores the number of input pulses and operates the pump (ON/OFF setting available).
Dividing setting:
When pump stroke frequency is decreased against pulse input numbers.
Memory function to store input pulse signals to pump operating (ON/OFF setting available)
※Setting range of input pulse numbers (n: 0.01 to 99.99)

●Analogue input operation mode

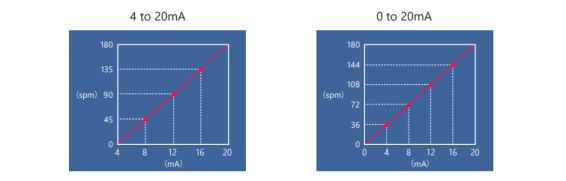

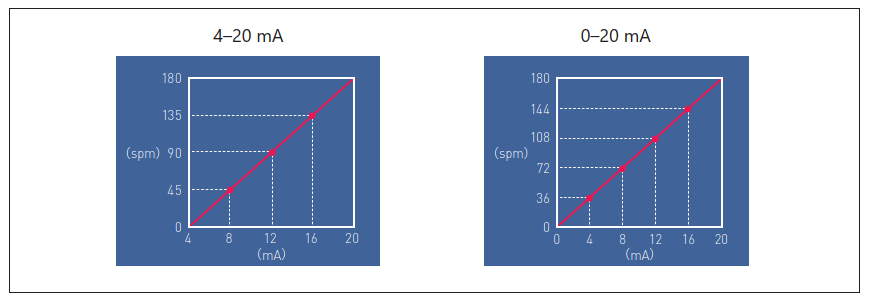

The number of strokes is proportionally controlled in response to an external analog signal (0/4–20 mA).

● For injection of chemical solutions such as water treatment agents, acids, and alkalis
● For chemical injection in physical and chemical sciences, and medical field
● For chlorine sterilization in simple water supply systems and swimming pools
● For injection of boiler chemicals
● For injection of nutrients and disinfectants in hydroponic cultivation and livestock farms

Model / Specifications

Model	Normal discharge pressure		Max. discharge pressure		Stroke frequency [spm]	Protective structure	power- consumption	Max. current value	Operating ambient temperature	Weight
	Discharge rate (mℓ/min)	Discharge pressure (MPa)	Discharge rate (mℓ/min)	Discharge pressure (MPa)
MP-L30P	41	0.8	35	1.6	0-180	IP65	17W	3.6A	-10～45℃	Approx. 2.9kg
MP-L30N	29	0.8	23	1.6
MP-L60P	70	0.25	65	0.5
MP-L60N	50	0.25	43	0.5
MP-L200P	240	0.1	200	0.2

Common specifications

Manual operation, various control operation functions
Stroke frequency adjustment: 0 to 180 spm (stroke frequency / min)
Stroke length adjustment: 0 to 100%
(The recommended stroke length adjustment – MP-L30/60/200P: 30% or more / MP-L30/60N: 50% or more)
Power source: AC 100 to 230V (+/-10%) 50/60 Hz

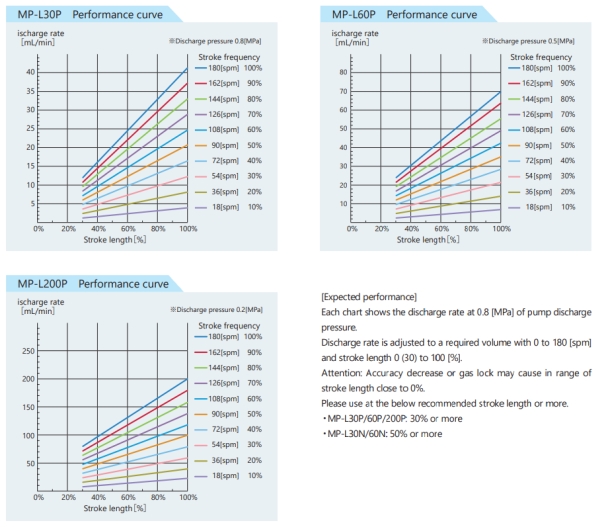

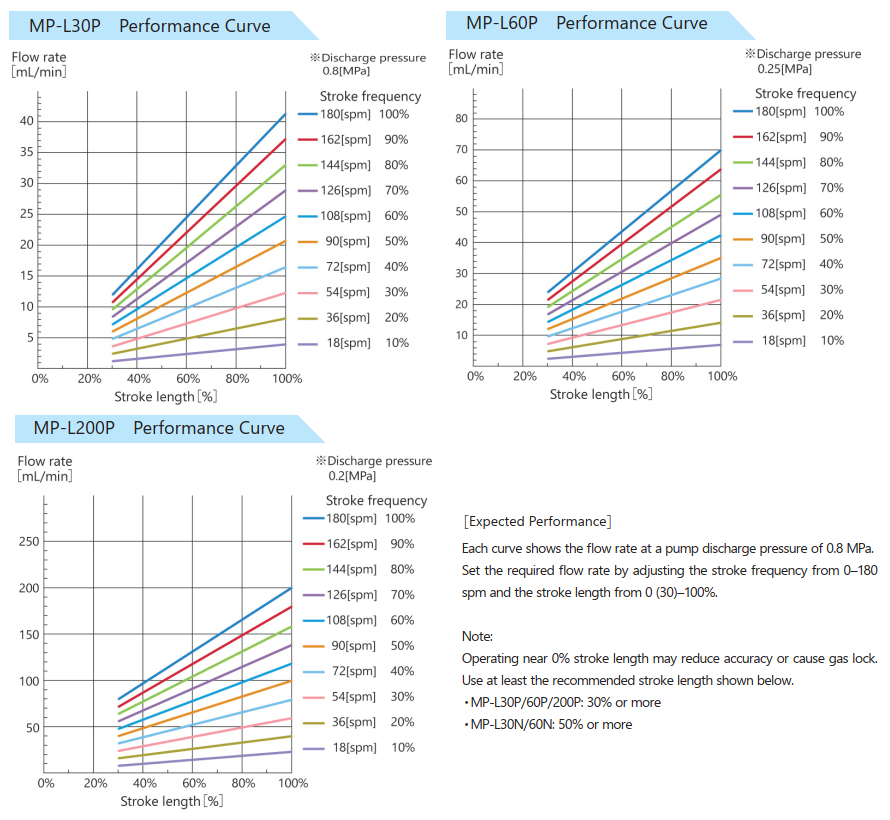

Performance curve

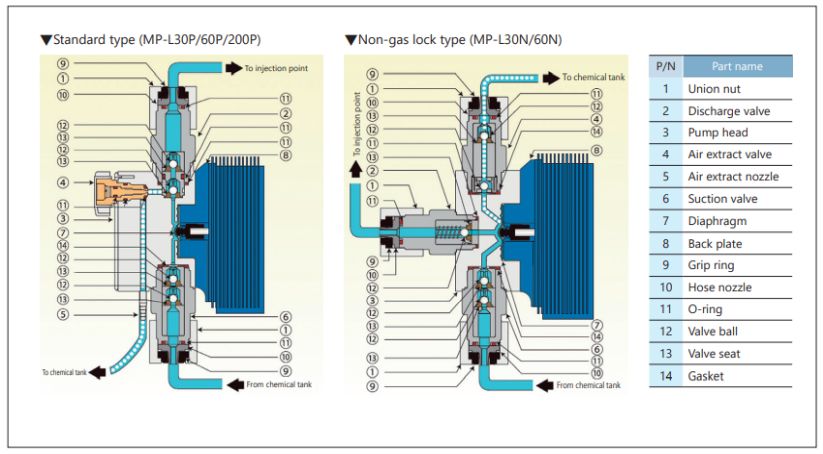

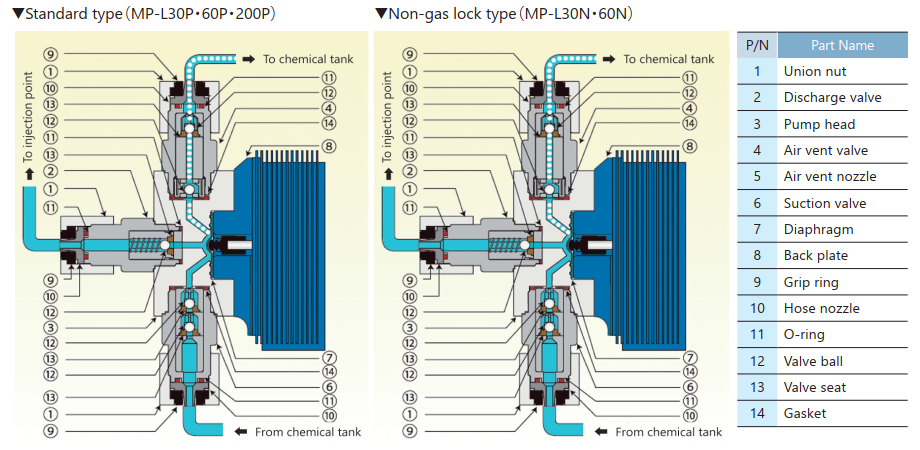

Liquid-end parts construction

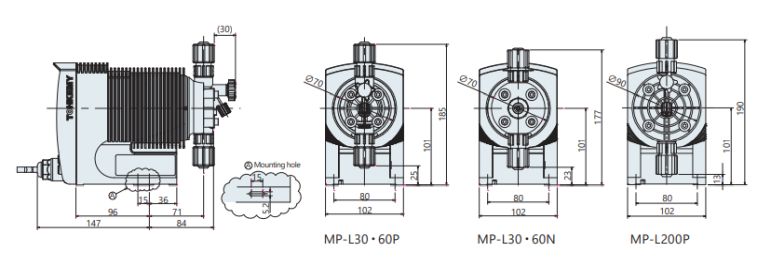

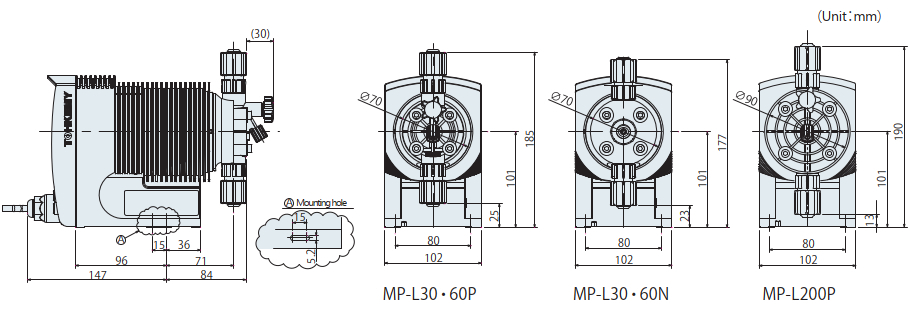

Pump Dimensions

Liquid-end parts specifications

	MP-L30P・60P・200P Standard type			MP-L30N・60N Non-gas lock type
Applicable chemicals	Ferric chloride, PAC, Sodium hypochlorite, Aluminum sulfate, Ferrous sulfate, Ferric sulfate	Hydrochloric acid / Dilute sulfuric acid / Nitric acid / Other strong acids	Sodium hydroxide	Bubble generating solutions such as sodium hypochlorite, etc.
Pump head	PVDF			Acryl
Valve	PVDF			PVC
Valve seat	PVDF			Special fluoro rubber
Check ball	Ceramic			Ceramic
Valve spring	－			Hastelloy C
Gasket	PTFE			Special fluoro rubber
O-ring	PTFE			Special fluoro rubber
Diaphragm	Liquid end surface PTFE (Back surface EPDM)			Liquid end surface PTFE (Back surface EPDM)
Hose spec	MP-L30P/60P ：φ4×φ9mm, bladed soft PVC hose MP-L200P ：φ6×φ11mm, bladed soft PVC hose	MP-L30P/60P ：φ4×φ6mm, polyethylene hose MP-L200P ：φ6×φ9mm, polyethylene hose		φ4×φ9mm, bladed soft PVC hose

* Please feel free to contact us if you have any inquiries of hose selection.
* The hose spec. φ6 x 11mm Tetron braded soft PVC hose or φ6 x 9mm PE hose for MP-L200P

Viscosity of fluid

Model / Connection	Viscosity
MP-L30P・60P・200P	0～200mPa・s
MP-L30N・60N	0～50mPa・s

※ Please note that the pump discharge volume may vary due to liquid viscosity and the influence of slurry. The pump performance values are based on data obtained with clean water. When using viscous liquids, please operate with a press-in piping.

Model code

Model

30・60・200P	Standard type　PVDF/PTFE
30・60N	Non-gas lock type Acryl/PVC/PTFE

Hose connection

P4（P6）	φ4 x 6mm (φ6 x 9) Polyethylene hose
V4（V6）	φ4 x 9mm (φ6 x 11) Tetron braded soft PVC hose

※φ6×9・φ6×11：MP-L200P

Standard accessories
* Power cable 2m
* Hose 3m
* Check valve
* Foot valve
* M4 mounting bolt and nut x 2
* Instruction manual

Optional accessories
* Control cable 2-core / 5-core (2m, 5m, 10m)
* Spring check valve (PVDF)
* Anti-siphonage valve (PVC)
