* Supports a wide range of capacities from small to large (power: 0.1 to 30 kW)
* Covers a large number of reduction ratios and easy to select the optimum rotation speed
* Ideal for floc formation, sedimentation prevention, agitation of viscous liquid

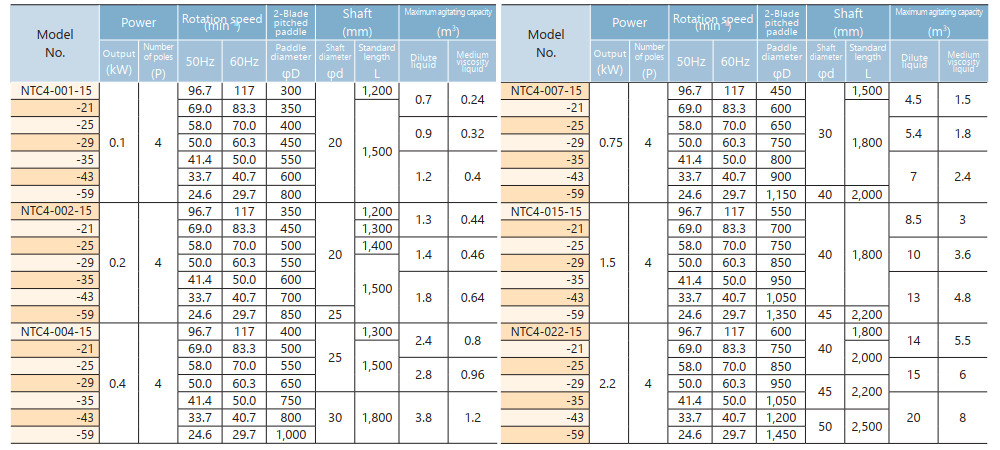

Cyclo reducer, 0.1-2.2kW

* Reduction ratios (one step) that can be selected other than this table include 1/6, 1/8, 1/11, 1/13, 1/17, 1/51, 1/71, and 1/87.
* The standard motor is a fully enclosed fan made by Sumitomo outdoors.
* The standard blade is a 2-pitch paddle and the number of stages is 2, but the blade shape may change depending on the purpose and specifications.
* If the stirring shaft is Φ50 mm or more, flange coupling is used as standard.
* If the blade diameter is Φ1100mm or more, the separate method is standard.
* Please contact us for non-standard specifications.
* Dilute liquids have a viscosity of about 0.1 Pa · s (100 cp), and medium-viscosity liquids have a viscosity of about 0.1-0.5 Pa · s (100-500 cp).

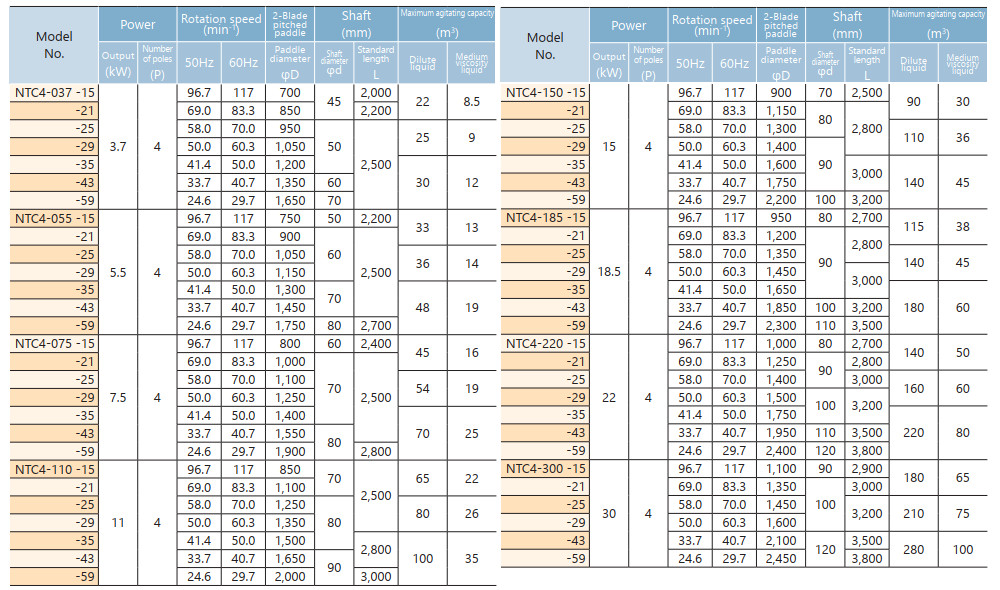

Cyclo reducer, 3.7-30kW

* Reduction ratios (one step) that can be selected other than this table include 1/6, 1/8, 1/11, 1/13, 1/17, 1/51, 1/71, and 1/87.
* The standard motor is a fully enclosed fan made by Sumitomo outdoors.
* The standard blade is a 2-pitch paddle and the number of stages is 2, but the blade shape may change depending on the purpose and specifications.
* If the stirring shaft is Φ50 mm or more, flange coupling is used as standard.
* If the blade diameter is Φ1100mm or more, the separate method is standard.
* Please contact us for non-standard specifications.
* Dilute liquids have a viscosity of about 0.1 Pa · s (100 cp), and medium-viscosity liquids have a viscosity of about 0.1-0.5 Pa · s (100-500 cp).

Mounting flange dimensions(mm)

Similary JIS 10K	Outer diameter OD	Pitch PCD	Number of mounting bolts x hole diameter n×φh	Flange thickness T
125A	250	210	4-φ19	17
150A	280	240	4-φ23	22
200A	330	290	6-φ23	22
250A	400	355	6-φ25	24
300A	445	400	8-φ25	26
400A	560	510	8-φ27	32
450A	620	565	10-φ27	32

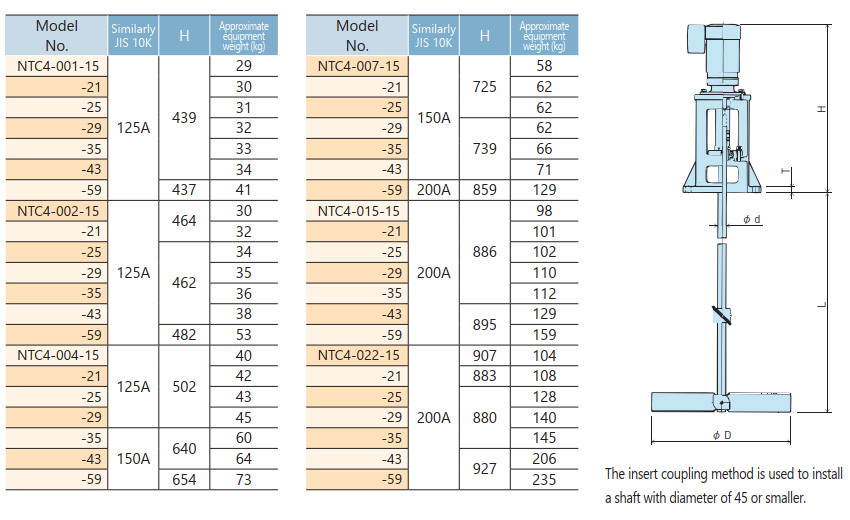

Cyclo reducer, 0.1-2.2kW

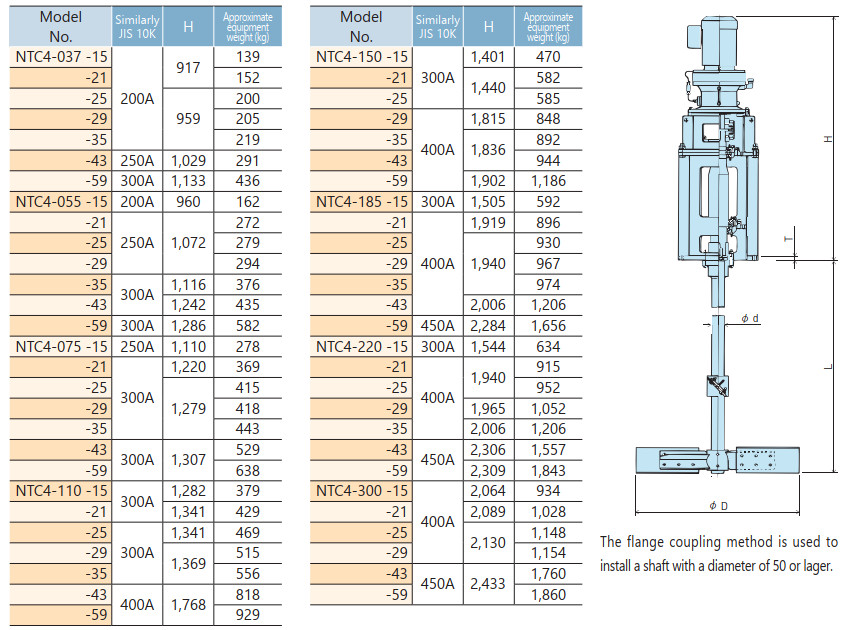

Cyclo reducer, 3.7-30kW

Motor	3-phase 200V 50Hz, 200/220V 60Hz 0.1kW: Totally-enclosed non-ventilated, 0.2kW ~: Totally-enclosed fan-cooled
Standard accessories	Simple tools (excluding large models), instruction manual
Painting	Munsell 2.5G6 / 3 (motor : manufacturer’s standard color)

* Different voltages such as 380/400/440V are also available.
