●Reliable design with circulation of more than 3 turns/h in the tank
●Pumping is also possible in addition to natural discharge.
●Time-proportional control for optimal neutralization

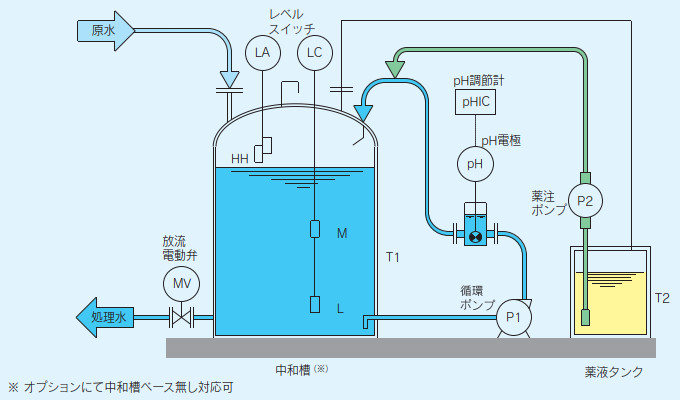

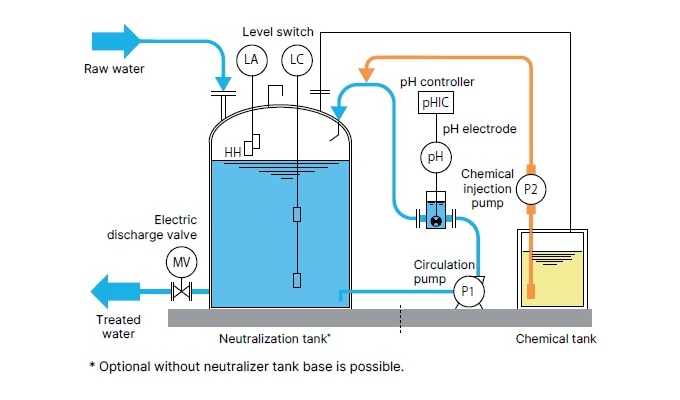

After receiving a fixed volume of raw water into the tank, this system performs pH neutralization treatment while agitating the water in the tank with a circulation pump, and discharges the water when the pH neutralization treatment is complete. Suitable for wastewater that is regularly discharged in a given volume. The guideline for treatment is pH 1-13.

*Neutralization reactions may require more chemicals than the calculated value due to factors that inhibit the reaction of chemicals.
We also offer neutralization titration test using sample water. Please feel free to contact us.

Regeneration wastewater from water purification equipment/ Experimental wastewater/ Small amount of factory wastewater

Unit Specifications

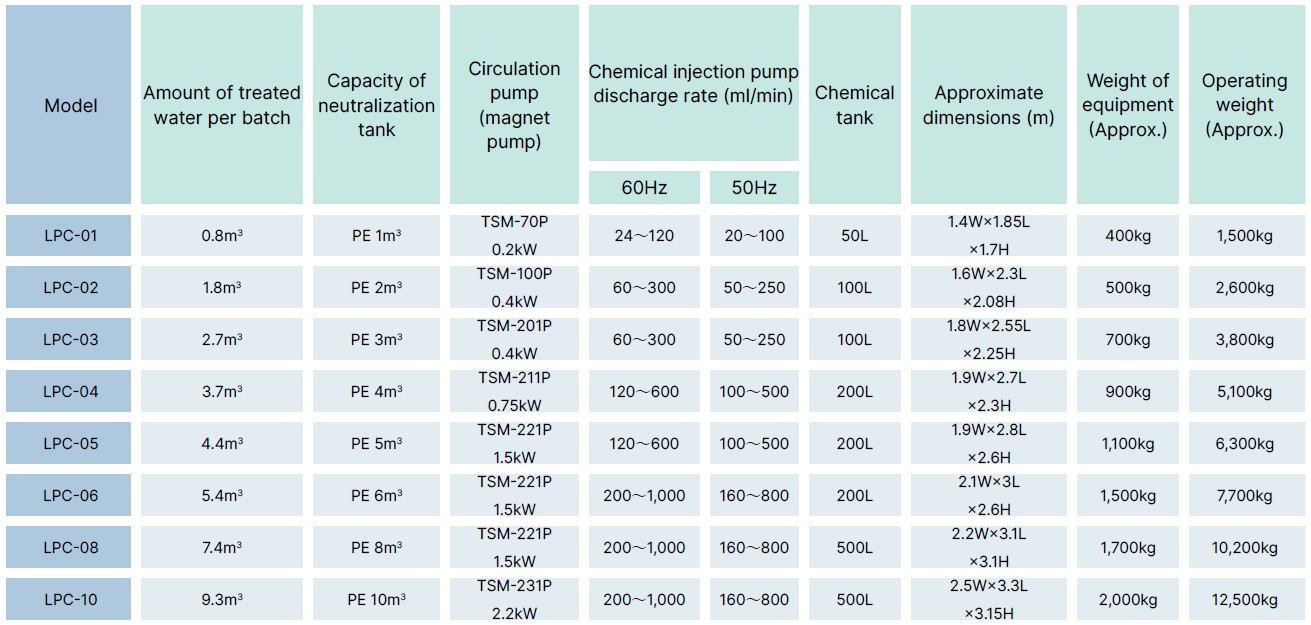

Product Specifications

	Standard specification	Option
Installation location	Indoor	Outdoor
Raw water temperature	Max 40℃	－
Supported Chemicals	Sodium hydroxide, Sulfuric Acid, Hydrochloric Acid	－
Tank material	PE	FRP
External Input-Output	Batch alarm output (No-voltage contact output)	Individual alarm output (No-voltage
Power Supply Voltage	3P 200V	Operatable with a different voltage
Control Method	pH single control(Acidic _or Alkaline)	pH dual control
Equipment	Raw water pump inflow type(Circuit only) pH regulator pH electrode Chemical tank Chemical injection pump Control panel Neutralization tank level switch HH, M, L	Raw water flowmeter Raw water pump pH recorder (with alarm circuit) Discharge pump Chemical tank level switch Liquid barrier for chemical tank Treated water return valve Neutralization tank drain valve

* Please contact us for other customization.
