Advanced water purification with turbidity of 0.1 degrees or less
It is a unit that efficiently filters and cleans the membrane and maximizes the performance of SuperMF.

● Infection control for water and beverage facilities
● Advanced water supply treatment for welfare facilities
● Improvement of water quality in swimming pool
● Aseptic seawater production [fishery processing]
● Pretreatment of RO membrane equipment, etc.

	Compact design

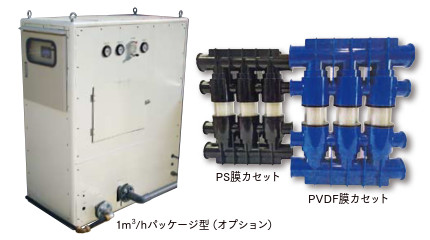

	● Connect ultra-precision membrane cassettes! ● Solid & durable ● Smart & simple design
	Cleaning function
	● Double cleaning of bubbling & backwash ● Cleaning conditions can be changed by standard process & programming

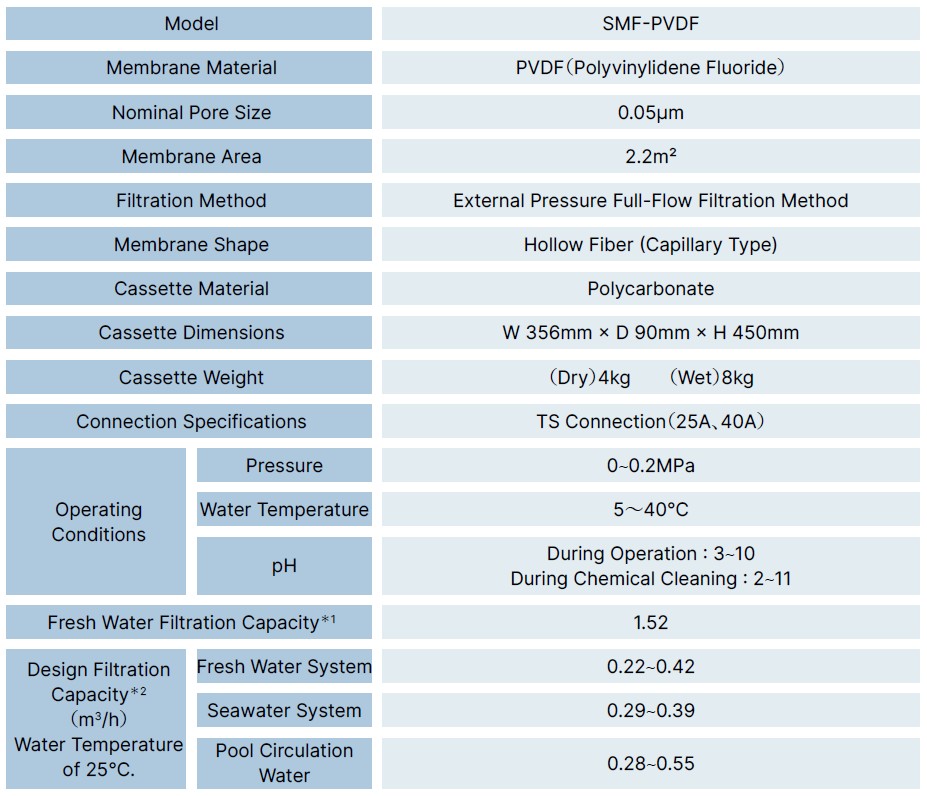

PVDF (polyvinylidene fluoride) membrane unit

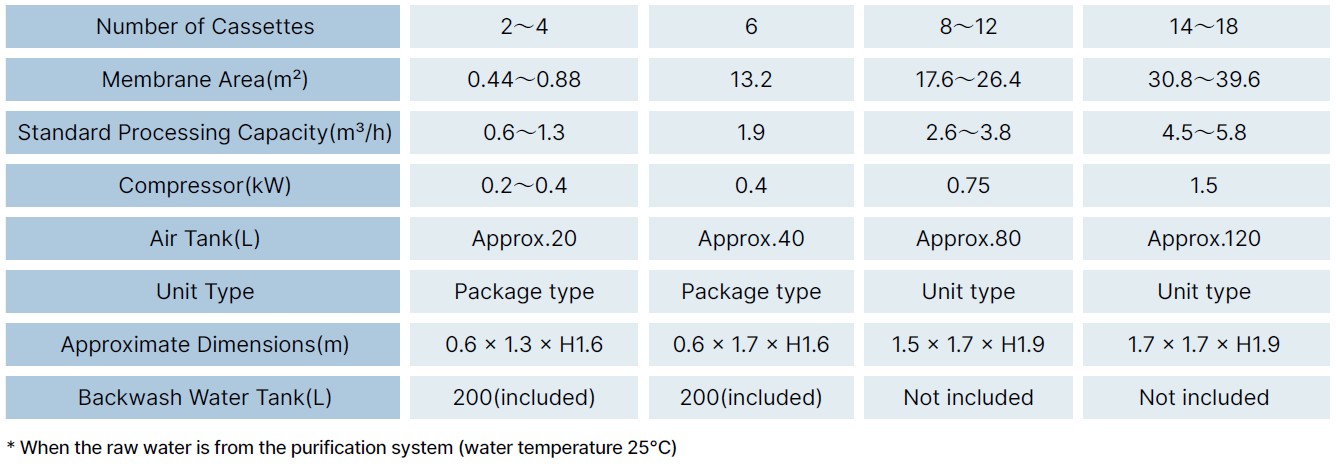

processing power	1m3/h	2m3/h	5m3/h	10m3/h	15m3/h
Number of cassettes	2 cassettes	4 cassettes	8 cassettes	14 cassettes	20 cassettes
Filtration pump capacity	17L/min	33L/min	83L/min	167L/min	250L/min
Backwash pump capacity	51L/min	103L/min	205L/min	360L/min	513L/min
compressor	0.2kW	0.4kW	0.75kW	1.5kW	2.2kW
Air tank	20L more	40L more	80L more	142L more	204L more
Backwash tank	200L	200L	300L	500L	750L

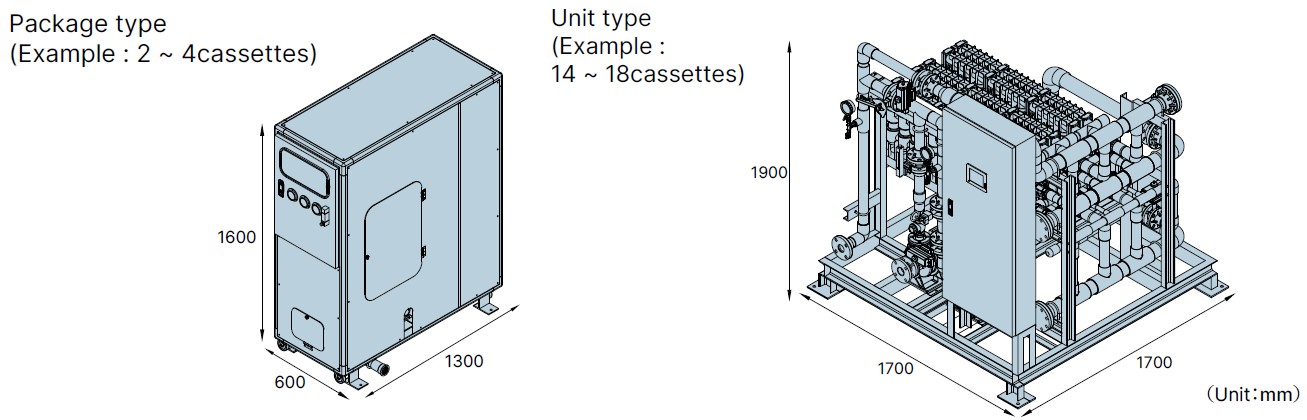

Approximate dimensions (m)	0.8W×1.2L×1.5H	0.8W×1.2L×1.5H	1.6W×2L×1.6H	1.9W×2L×1.6H	2.2W×2L×1.6H

PS (polysulfone) membrane unit

processing power	1m3/h	2m3/h	5m3/h	10m3/h	15m3/h
Number of cassettes	2 cassettes	4 cassettes	6 cassettes	12 cassettes	18 cassettes
Filtration pump capacity	17L/min	33L/min	83L/min	167L/min	250L/min
Backwash pump capacity	56L/min	112L/min	168L/min	336L/min	504L/min
compressor	0.2kW	0.4kW	0.75kW	1.5kW	2.2kW
Air tank	20L more	41L more	81L more	122L more	183L more
Backwash tank	200L	200L	300L	500L	750L
Approximate dimensions (m)	0.8W×1.2L×1.5H	0.8W×1.2L×1.5H	1.2W×2L×1.6H	1.9W×2L×1.6H	2.2W×2L×1.6H

* Approximate dimensions do not include the wash water tank. Specifications are subject to change without notice for improvement.

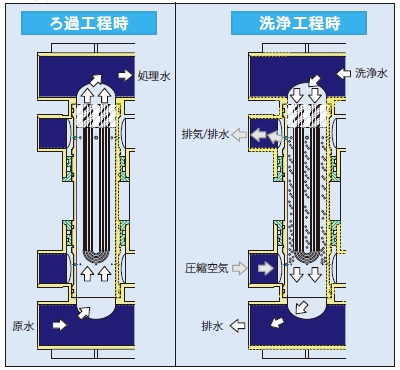

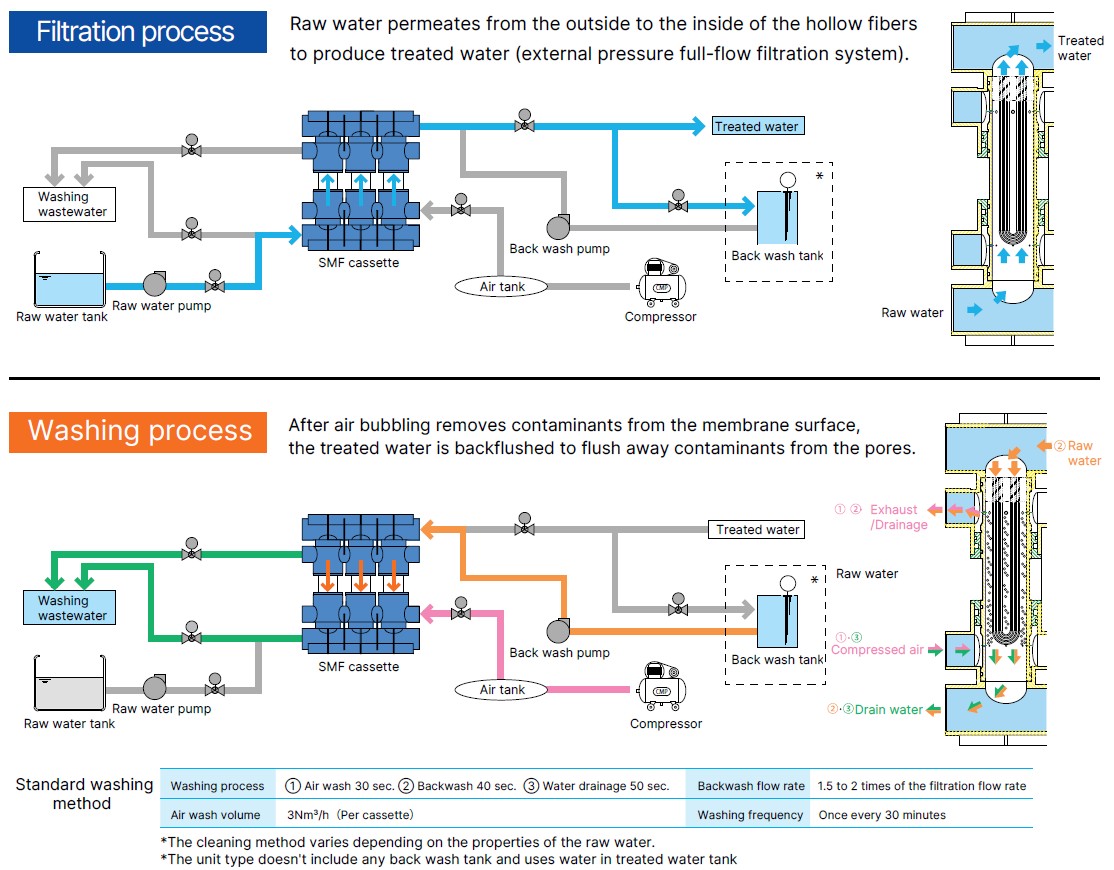

	Filtration process
	Raw water enters from the bottom of the cassette, permeates the inside of the hollow fiber by an external pressure filtration method, _and purified water is discharged from the top.
	Cleaning process
	The dirt on the film surface is peeled off by air bubbling, _and then the treated water is back-permeated to clean the dirt in the pores.
	Cleaning example
	Air bubbling：30 seconds Reverse transparency：40 seconds Drainage：50 seconds * The cleaning method varies depending on the properties of the raw water.
