The demand for advanced treatment of water is increasing. Membrane filtration in recent years has made it possible to purify water that cannot be achieved by sand filtration. However, while membrane filtration is suitable for advanced processing, it has weaknesses against high loads.
Therefore, in order to make the membrane, which is the main player in advanced processing, function effectively, a fiber filter medium that is resistant to high-load filtration is standard equipment as a pre-filter.
Here, we provide a compact system that is easy for customers to use.

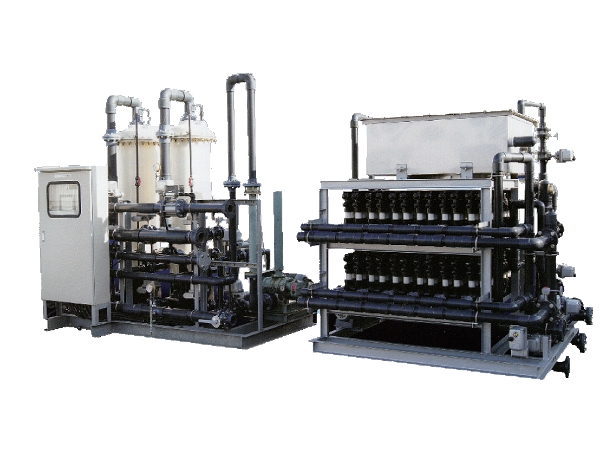

The SuperMF filter is a water treatment _system that can be used for all purposes due to the collaboration effect with Acty Fiber.

<Application example>
● Water _and beverage facilities — Measures against Cryptosporidium _and Giardia, advanced water purification with turbidity of 0.1 degrees _or less
● Emergency water purification equipment — Purifies rivers, lakes, _and pools to a drinking level
● Hot bath facility / cooling tower — Legionella measures
● Wastewater treatment _and reclaimed water [reuse]
● Recovery of suspended solids in industrial wastewater
● Pretreatment of RO equipment [seawater desalination, etc.]

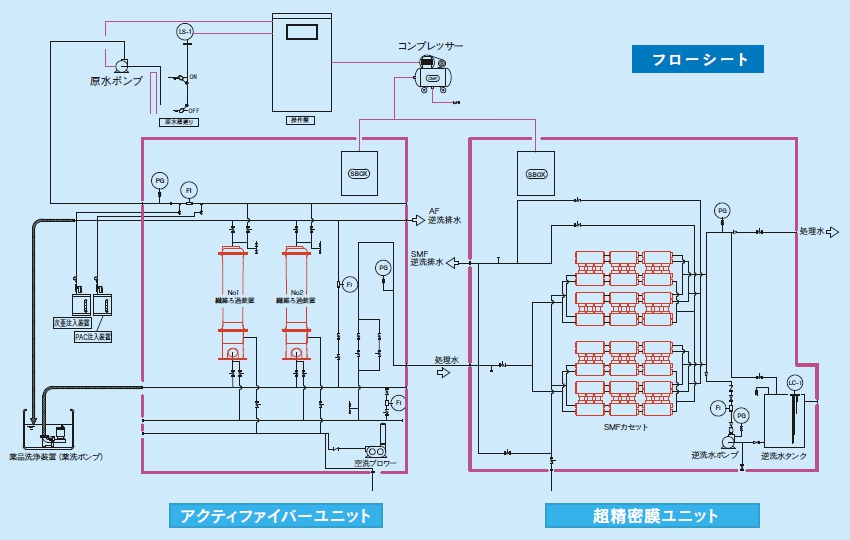

				AF unit			SMF unit
Model (PW-)	Membrane material	Amount of treated water	Standard amount of waste water	Tower diameter x number of towers	Size (mm)	Backwash amount	Number of cassettes	Size (mm)	Total waste water amount
100PS	PS	100m3 / days 4.3m3 / hour	15m3 / days	φ 300 ㎜ × 2 towers	W:2,000 L:1,100 H:2,400	500L / (towers・times)(4 Every hour)	8 (0.1MPa)	W:1,200 L:1,000 H:1,400	200L / times (30Every minute)
100PVDF	PVDF		12m3 / days				8 (0.15MPa)	W:1,200 L:1,000 H:1,400	135L / time (30 Every minute)
300PS	PS	300m3 / days 13m3 / hours	39m3 / days	φ 500 ㎜ × 2 tower	W:2,700 L:1,700 H:2,700	1,400L / (tower・time)(4Every hour)	22 (0.1MPa)	W:1,600 L:1,500 H:1,550	550L / time (30 Every minute)
300PVDF	PVDF		33m3 / days				24 (0.15MPa)	W:1,600 L:1,500 H:1,550	400L / time (30 Every minute)
		Material		Filtration tower：G-FRP fiber：polypropylene Piping：VP (part SGP)(option SUS304)			Membrane Housing: PC Polycarbonate Piping: VP (option SUS304)
		Automatic valve		Pneumatic double actuated butterfly valve (ADC/SCS14/EPDM)

* Membrane material (PS: polysulfone, PVDF: polyvinylidene fluoride)
