Line mixer (SPT)

* Compact and_ reasonable (no power required)
* Low pressure drop and_ large mixing effect (can be installed in existing piping)

Features

* Compact and_ reasonable (no power required)
* Low pressure drop and_ large mixing effect (can be installed in existing piping)
* Possible to be used for various fluids (various liquids, gas)
* Easy to clean (element can be pulled out)
* Wide variety (4, 6, 8 elements, sanitary specifications, etc.)

specification

Model code explanation

SPT 80 4 1 S R J X
1 2 3 4 5 6 7
1.Nominal diameter Number with connection diameter of 10 ~150A (It may not be available depending on diameter)
2.Number of elements per unit 4:1 unit 4 elements
6:1 unit 6 elements
8:1 unit 8 elements
3.Material 1:SUS304
2:SUS316
3:PVC
4:SS
5:STPG+PTFE Lining
4.Connection Nil:JIS10k Flange connection
S:Sanitary type clamp joint
5.Disassembly of the element Nil:Element can be disassembled
R:Element can not be disassembled
6.With jacket Nil:No jacket
J:With jacket
7.Special specifications X:For other special specifications

<Specially manufacturing>
We also accept orders for large diameter products of 200A or larger, titanium/Hastelloy materials, various lining products, and various joint shape products.
Please contact us for further information.

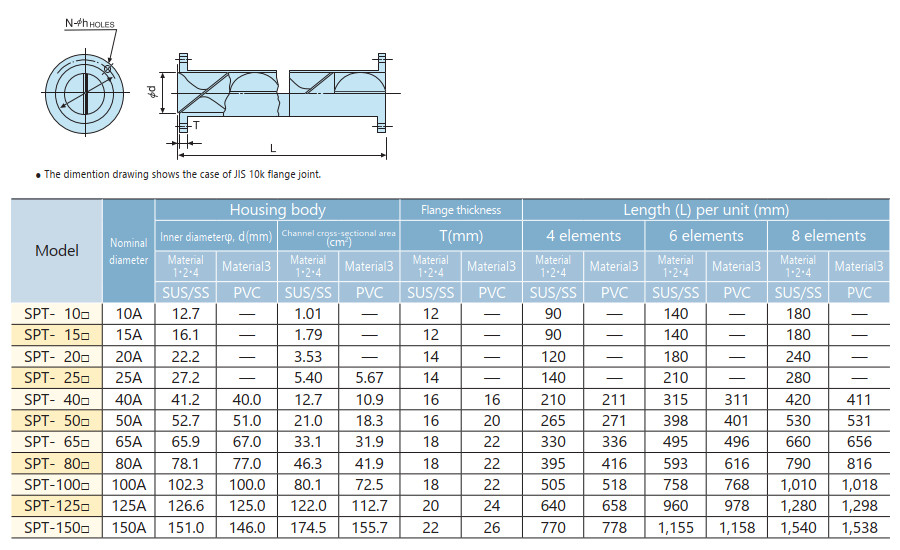

Dimensional drawing
