● Suitable for high turbidity
Raw water with its maximum 100 NTU turbidity would be treated with the value less than 5NTU (with coagulant).
● Reduction of installation space
Since the filtration speed can be increased by about 5 times compared to the granular filter material (approx. LV20~80m/h), the size of the filtration tower can be reduced to save the installation space.

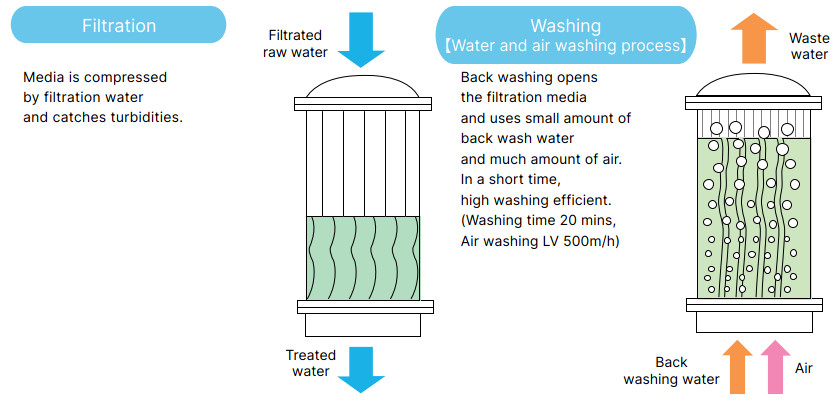

● Reduction of washing water volume
Simultaneous cleaning of strong air and water is adopted for cleaning, and a large cleaning effect can be obtained with a small amount of cleaning water.
● Large amount of turbidity captured
The void ratio is 90% or more (sand and anthracite is approx. 50%), and since a large amount of fibers of several tens of μm is used, the surface area is large, and the amount of turbidity trapped is larger than that of granular filter media.

【1000mm series (Compact and light weight type) material: FPR】
Light filter vessel made from FRP. No need to put media into tank at user’s place.

【1500mm series (Turbidity captured up and high performance type) material: SUS】
Filter media replacement is easy with the cartridge method.
In comparison with fiber length 1,000mm series, larger amount of turbidity captured, great decrease of washing times.
And more, high speed filtration, more efficient treatment.

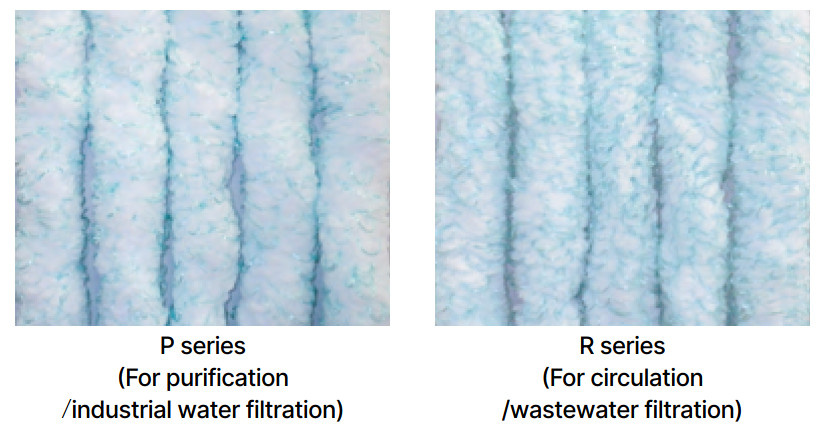

Fiber filter media [Actifiber®] offers features such as space savings and reduced wastewater volume.

【For purification & industrial water filtration (P series)】
●Measures for high concentrated river water, changed water condition, and prevention against contaminating into sewage with rain water
●Pretreatment before membrane filtration such as SMF
●Decontamination of industrial water
●Fresh water generating from rainwater to reclaimed water
●Removal of high concentrated iron in groundwater
●Recirculation filtration for pool

【For circulation & wastewater (R series)】
●For tertiary treatment of wastewater, such as septic tanks
●Filtration for appereciation ponds and culture ponds
●Side filter for cooling water
●Recirculation filtration for public bathes, appereciation ponds, and so on

Fiber Type		For purification･industrial water filtration (P series)	For circulation･wastewater filtration (R series)
Fiber Filter Media	Single fiber diameter	Approx. 50 μm	Approx. 50 μm
	Filter material diameter	φ120mm	φ120mm
	Material	Polypropylene(PP)
	Nominal length	1,000mm　1,500mm

※In case of using with high temperature, acid-resistance, and alkali-resistance, please contact our sales staff.

1000mm series (Compact and light weight type) material: FPR

Mode	Filtration tower inner diameter	Reference amount of treated water （LV20～50m/h）	Washing drainage volume（per process）	Washing specifications	Materials _and others
AFU-□300	φ300mm	1.4～3.5m3/h	Approx.0.4m3	Back washing speed LV25m/h Backwash Air LV500m/h	Housing：G-FRP Differential pressure used（ΔP）： 0.05MPa less Equipment pressure used： 0.2MPa less Operating temperature： 0～40℃ （No freezing） Mounting：Comb holding type
AFU-□400	φ400mm	2.5～6.2m3/h	Approx.0.7m3
AFU-□500	φ500mm	3.9～9.8m3/h	Approx.1.0m3
AFU-□600	φ600mm	5.6～14m3/h	Approx.1.4m3

Select either P (for purification & industrial water filtration), or R (for circulation & wastewater) for □.

1500mm series (Turbidity captured up and high performance type) material: SUS

Model	Filtration tower inner diameter	Reference amount of treated water （LV20～80m/h）	Washing drainage volume（per process）	Washing specifications	Materials _and others
AFU-□315	φ300mm	1.4～5.6m3/h	Approx.0.6m3	Back washing speed LV40m/h Backwash Air LV500m/h	Housing：SUS304 Differential pressure used（ΔP）： 0.1MPa less Equipment pressure used： 0.3MPa less Operating temperature： 0～40℃ （No freezing） Mounting：Cartridge type
AFU-□515	φ500mm	3.9～15m3/h	Approx.1.6m3
AFU-□615	φ600mm	5.6～22m3/h	Approx.2.3m3
AFU-□915	φ900mm	12～50m3/h	Approx.5.1m3
AFU-□1215	φ1,200mm	22～90m3/h	Approx.9.0m3
AFU-□1415	φ1,400mm	30～123m3/h	Approx.12.3m3
AFU-□1615	φ1,600mm	40～160m3/h	Approx.16.1m3

Select either P (for purification & industrial water filtration), or R (for circulation & wastewater) for □.
