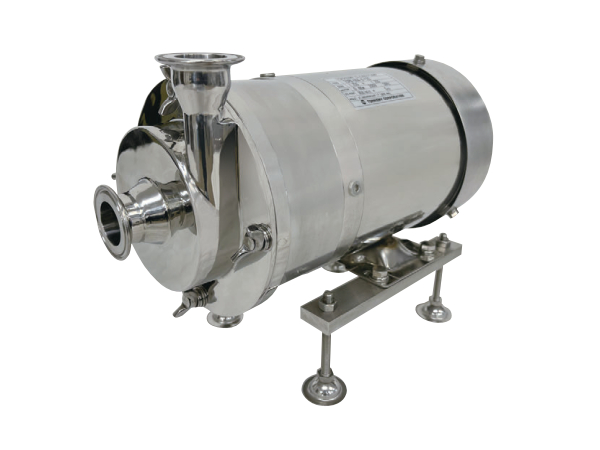

● The motor, liquid-end parts, and base are all made of stainless steel.
● Simple structure and easy to clean.
● Continuous operating temperature is 140℃, CIP cleaning*1 is also supported.
● The liquid-end parts are connected with clamps and wing bolts, and can be disassembled with a single wrench.
● By adopting an outside-type mechanical seal, the spring and rotating ring do not come into contact with the liquid.
*1 CIP cleaning: A system that safely performs automatic cleaning with simple operations without disassembling production equipment

Model	Ferrule connection caliber	Standard specification point	Head (m)	Maximum discharge rate (L/min)	Motor output (kW)	Weight (kg)
TCPN-002	1.25S	60L/min×5m	8	100	0.2	20
TCPN-004	1.25S	80L/min×7m	11	140	0.4	21
TCPN-007	Suction 2.0S x Discharge 1.5S	140L/min×10m	15	250	0.75	35
TCPN-015	Suction 2.0S x Discharge 1.5S	220L/min×15m	22	300	1.5	38

* This pump is not self-priming type. Use the pump with press-in piping for suction line.
* Allowable fluid specific gravity 1.1 max

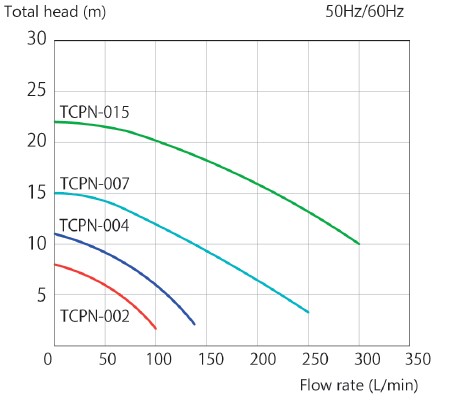

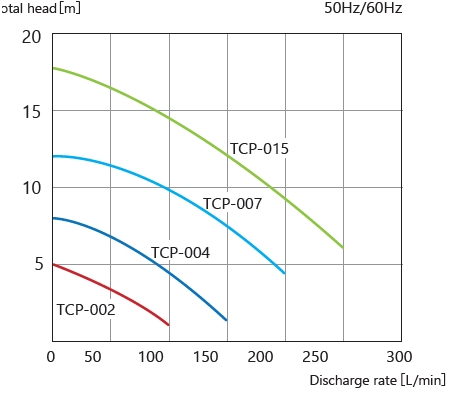

Performance curve

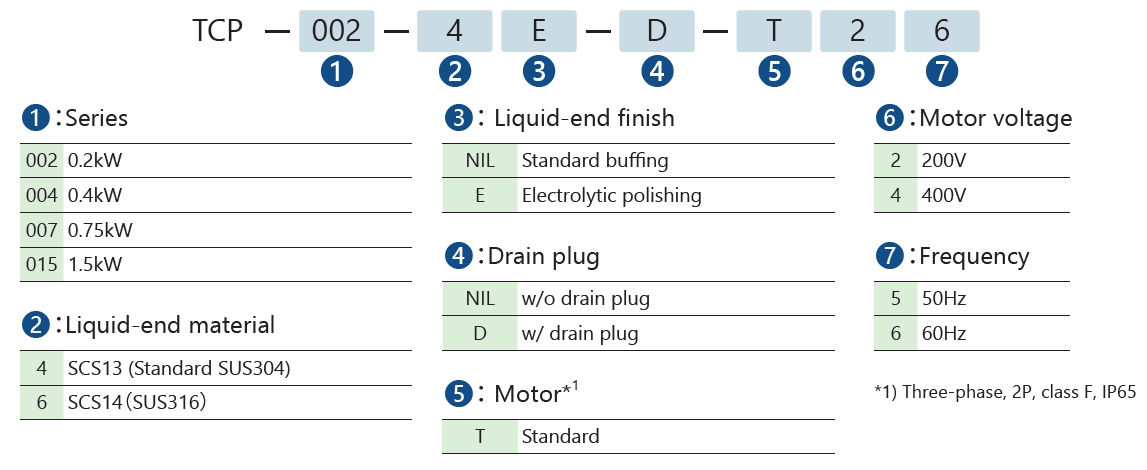

Model Code Explanation

TCPN	–	002	–	4	E	–	D	–	T	2	6	F
		[1]		[2]	[3]		[4]		[5]	[6]	[7]	[8]

[1] Series		002：0.2kW 004：0.4kW 007：0.75kW 015：1.5kW
[2] Liquid-end material		4：SCS13 (Standard SUS304) 6：SCS14（SUS316）
[3] Liquid-end finish		NIL：Standard buff polishing E：Electrolytic polishing
[4] Drain plug		NIL：w/o drain plug D：w/ drain plug
[5] Motor*1		T：Standard
[6] Motor voltage		2：200V 4：400V
[7] Frequency		5：50Hz 6：60Hz
[8] O-ring		Blank：NBR F：FKM E：EPDM Z：Others

*1) Three-phase outdoor, 2P, class F, IP65

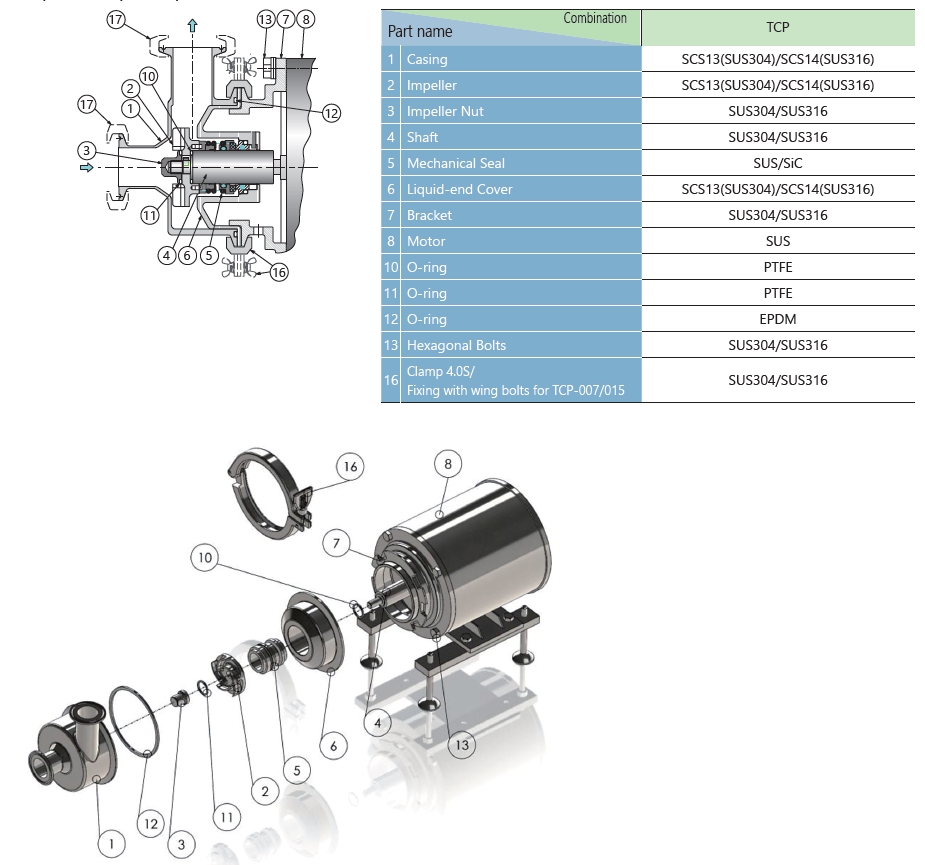

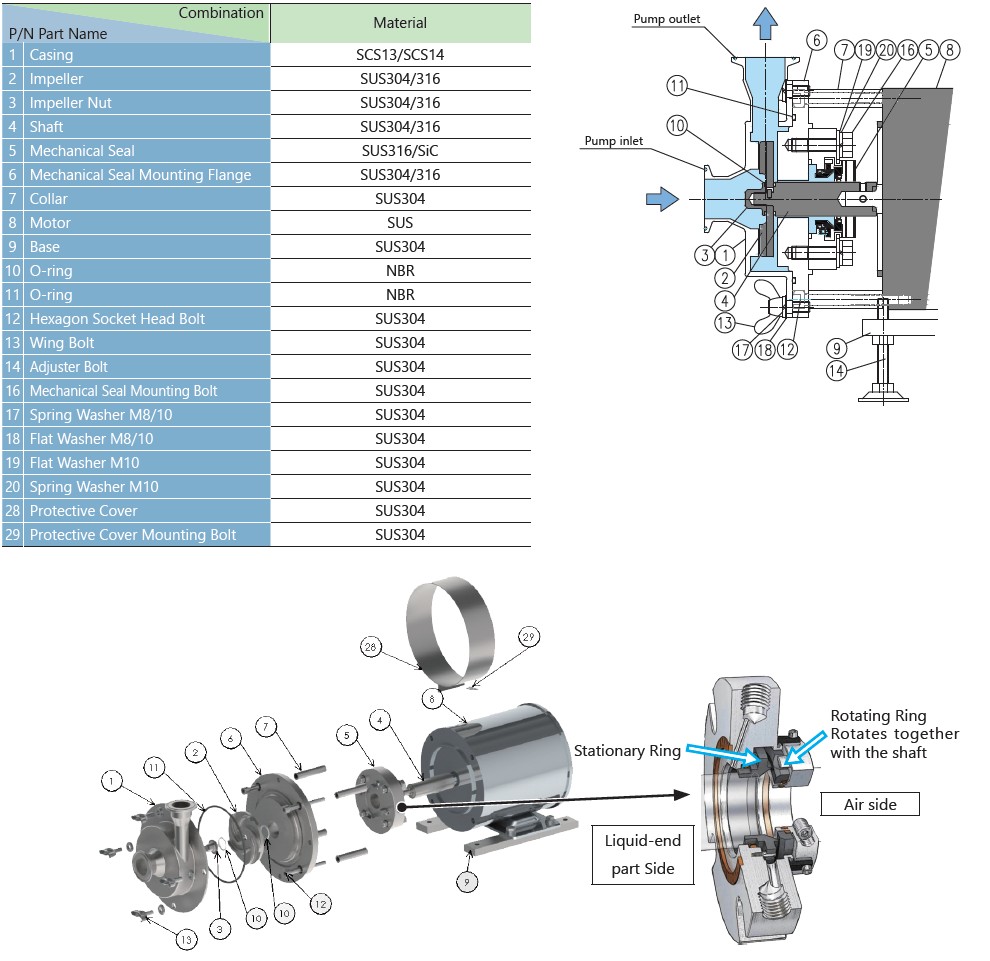

Liquid-end parts specifications

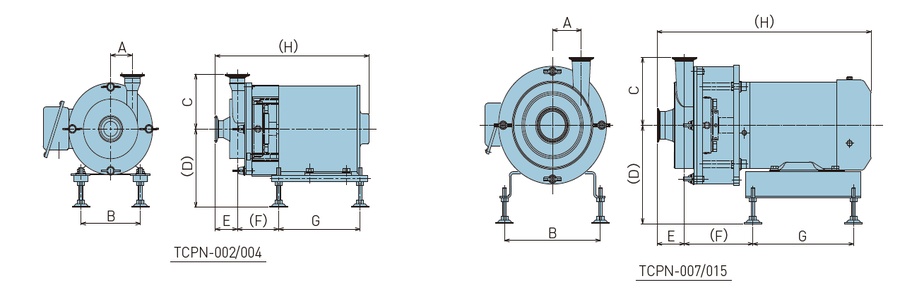

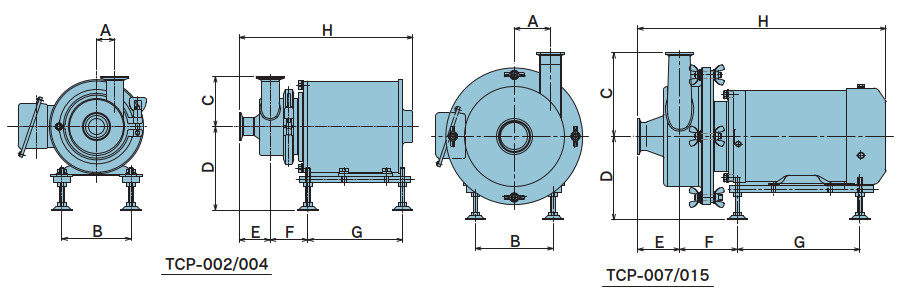

Dimensions

（ unit ： mm ）

Model	A	B	C	D	E	F	G	H
TCPN-002/004	45	124	105	(150)	45	(86)	170	(321) / (366)
TCPN-007/015	60	200	130	(190)	57	(143) / (153)	210	(447) / (457)
