Upper flow type (THU / TLU)

* Large agitating effect with small power.
* Since it is installed underwater, problems of noise and vibration are solved.

Features

* Large agitating effect with small power.
* Since it is installed underwater, problems of noise and vibration are solved.
* Compact and space-saving.
* Possible to uninstall the agitator without draining liquid in the tank.
* In addition to chain suspension, guide pole method and guide pipe method are also available for installation.

specification

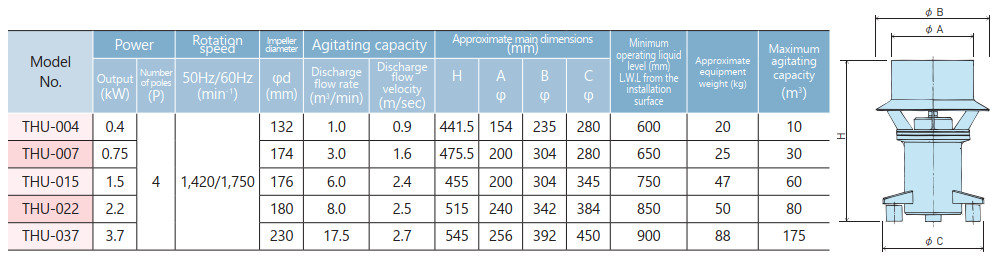

THU Motor direct connection upper-flow type

* The standard material is SUS. Lining is not available.
* The insulation class of the motor is standard E type, and H type can also be selected. The permissible water temperature is 40℃ for class E insulation and 75 ℃ for class H insulation.
* Explosion-proof structure cannot be manufactured.
* The maximum allowable water depth for operation is 10 m.
* The permissible liquid concentration is 30% or less, and the permissible liquid viscosity is 2Pa・s (2,000cP).

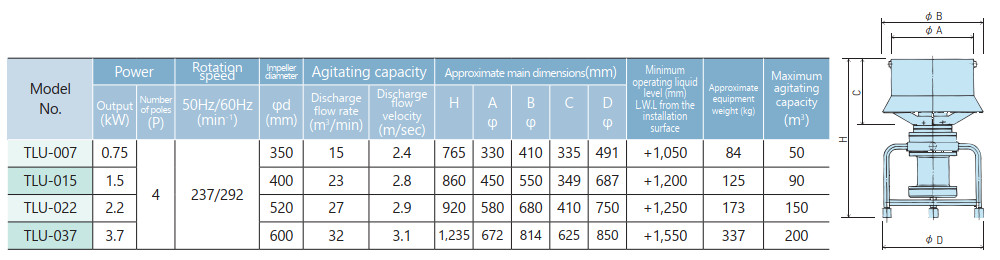

TLU Gear-reduction upper-flow type

* The standard material is SUS. Lining is not available.
* The insulation class of the motor is standard E type, and H type can also be selected. The permissible water temperature is 40℃ for class E insulation and 75 ℃ for class H insulation.
* Explosion-proof structure cannot be manufactured.
* The maximum allowable water depth for operation is 10 m.
* The permissible liquid concentration is 30% or less, and the permissible liquid viscosity is 2Pa・s (2,000cP).
