TS
![](https://www.tohkemy.co.jp/english/wordpress/wp-content/uploads/2020/03/ts_top.jpg)
✔Simple structure and long life
✔Resin bracket and pump base realizing light weight and high resistance to erosion.
✔ Two kinds of liquid-end material, GFR-PP (Glass Fiber Reinforced Polypropylene) and CFR-PVDF (Carbon Fiber Reinforced PVDF), the most suitable for transferring wide-range chemicals.
✔ Connections selectable from hose, thread, JIS 10K flange 20A and 25A.
✔New arrival of high-head type (for fluid specific gravity 1.0 only).
Features
● Simple structure and long life.
●Resin bracket and pump base realizing light weight and high resistance to erosion.
●Two kinds of liquid-end material, GFR-PP (Glass Fiber Reinforced Polypropylene) and CFR-PVDF (Carbon Fiber Reinforced PVDF), the most suitable for transferring wide-range chemicals.
●Connections selectable from hose, thread, JIS 10K flange 20A and 25A.
●New arrival of high-head type (for fluid specific gravity 1.0 only).
specification
model | Connection diameter (suction x discharge) | Head (m) |
Discharge rate (L/min) |
Motor output (W) |
Weight (kg) |
||
---|---|---|---|---|---|---|---|
Hose (outer diameter) (mm) | Thread (inch) |
Flange (A) | |||||
TS-71P/V | 26×26 | G1″×G1″ | 25(20)×25(20) | 6/8 | 60 | 180 | 7 |
TS-81P/V | 26×26 | G1″×G1″ | 25(20)×25(20) | 5.5/7.5 | 80 | 250 | 8 |
TS-71PH/VH | 20×20 | G3/4″×G3/4″ | – | 12 | 20/30 | 180 | 7 |
* Indication of minimum discharge rate is approx. 10% of maximum discharge rate at 0m head.
* Flange connection is 20A or 25A.

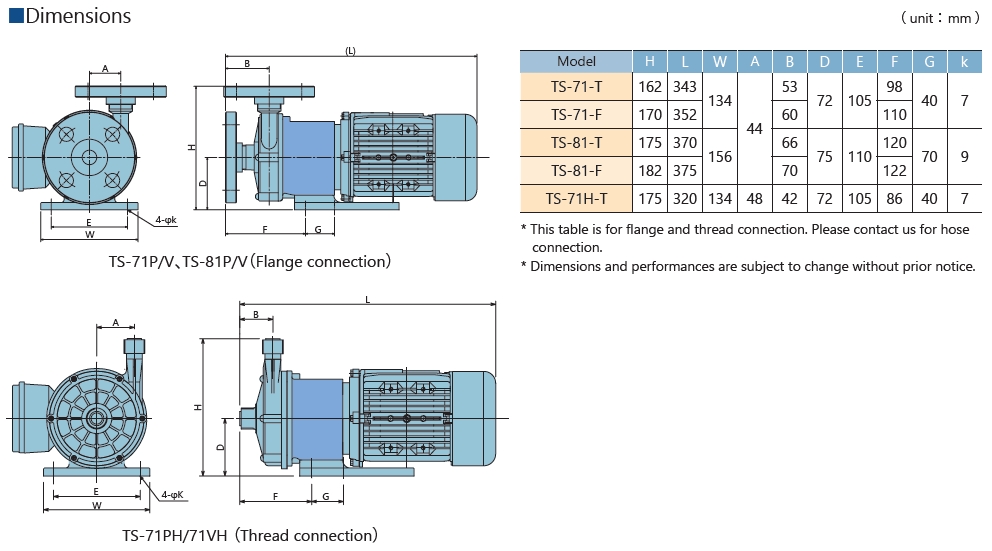

Dimensions
Model configuration
TS | – | 71 | P | – | RV | – | F20 | 6 | 1 | – | T2 |
---|---|---|---|---|---|---|---|---|---|---|---|
[1] | [2] | [3][4] | [5] | [6] | [7] | [8] |
[1] Series | 71:180W 81:250W |
---|---|
[2]Main material*1 | P:Glass Fiber Reinforced Polypropylene V:Carbon Fiber Reinforced PVDF |
[3]Liquid-end parts material*2 | R:PTFE / Ceramics |
[4]O-ring material | V:FKM E:EPDM A:Aflas®*6 Z:Others |
[5]Connection | F20:20A flange F25:25A flange H:Hose T:Thread |
[6]Frequency | 5:50Hz 6:60Hz |
[7]Fluid specific gravity*3 | 0:1.0 max. (for 71PH/VH only) 1:1.1 max. 2:1.2 max. 3:1.3 max. 5:1.5 max. 9:1.9 max. Z:Others*4 |
[8]Motor voltage*5 | T2:200V 50Hz, 200/220 60Hz T4: 380/400/415V 50Hz, 380/400/440V 60Hz |
*1) “H” added to high-head type TS-71 after P/V.
*2) Refer to material table.
*3) TS-71PH/VH are exclusive for fluid specific gravity 1.0, TS-71P/V are standardly for fluid specific gravity 1.1 max., please contact us for other fluid specific gravities.
*4) Please specify or contact us for other fluid specific gravities.
*5) Standard motors are indicated as “T2” or “T4”.
*6) Aflas® is a registered trademark of AGC Inc.
* Please order optional “Union set” for union connection.
Material
No | Part name / Combination | TS-P/PH | TS-V/VH |
---|---|---|---|
1 | Front casing | Glass Fiber Reinforced Polypropylene | Carbon Fiber Reinforced PVDF |
2 | Impeller | Glass Fiber Reinforced Polypropylene | Carbon Fiber Reinforced PVDF |
3 | bearing | PTFE | |
4 | Rear casing | Glass Fiber Reinforced Polypropylene | Carbon Fiber Reinforced PVDF |
5 | shaft | Alumina ceramics | |
6 | Front thrust | Alumina ceramics | |
7 | Rear thrust | Alumina ceramics | |
8 | O ring | FKM/EPDM/Aflas® | |
9 | bracket | Glass fiber reinforced polypropylene | |
10 | base | Glass fiber reinforced polypropylene |
* Please feel free to contact us for the other material combination.
* Aflas® is a registered trademark of AGC Inc.

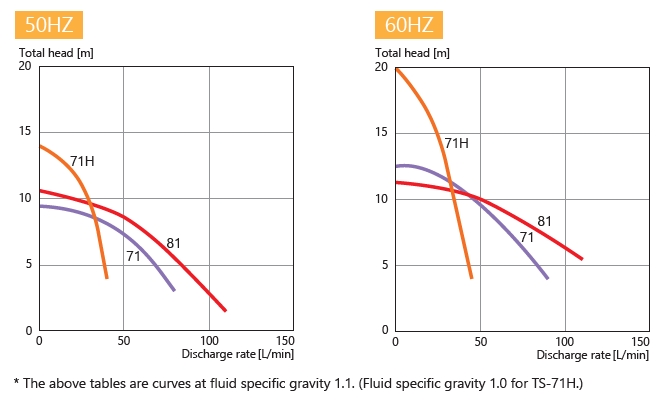

Performance curve
* The above tables are curves at fluid specific gravity 1.1. (Fluid specific gravity 1.0 for TS-71H.)
