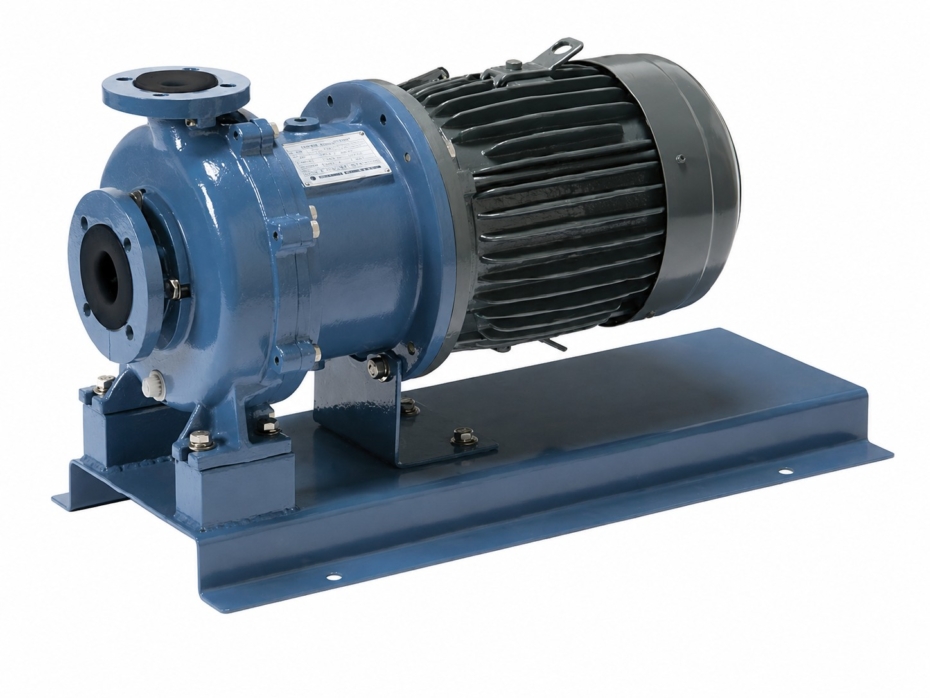

TSL
✔ Two liquid-end material options: ETFE and SiC
✔ High corrosion resistance and most suitable for transferring wide-range chemicals.
Features
<TSL-55 / 75MM type>
● Medium-capacity, medium- to high-head magnetic pump with a 5.5 or 7.5 kW motor, covering flow rates of 100–600 L/min and heads of 20–50 m.
<TSL-55 / 75MS type>
●Medium-to-large capacity, medium-head magnetic pump equipped with a 5.5 or 7.5 kW motor, covering a flow rate of 100 to 800 L/min and a head of 20 to 30 m.
<TSL-110 / 150/185LS type>
●Three motor outputs from 11–18.5 kW are available. These reliable large-capacity, medium- to high-head magnetic pumps cover flow rates of 500–1,600 L/min and heads of 20–50 m or more.
Specifications
| Model | Connection diameter (Suction x discharge) (A) | Head (m) | Flow rate (L/min) | Motor output (kW) | Weight (kg) |
|---|---|---|---|---|---|
| TSL-55MM | 50×40 | 41 | 300 | 5.5 | 120 |
| TSL-75MM | 50×40 | 49 | 300 | 7.5 | 127 |
| TSL-55MS | 65×50 | 31 | 500 | 5.5 | 125 |
| TSL-75MS | 65×50 | 31/39 | 500 | 7.5 | 130 |
| TSL-110LS | 80×65 | 34 | 1000 | 11 | 229 |
| TSL-150LS | 80×65 | 34/45 | 1000 | 15 | 247 |
| TSL-185LS | 80×65 | 34/53 | 1000 | 18.5 | 260 |
* Indication of minimum flow rate is approx. 10% of maximum flow rate at 0m head.

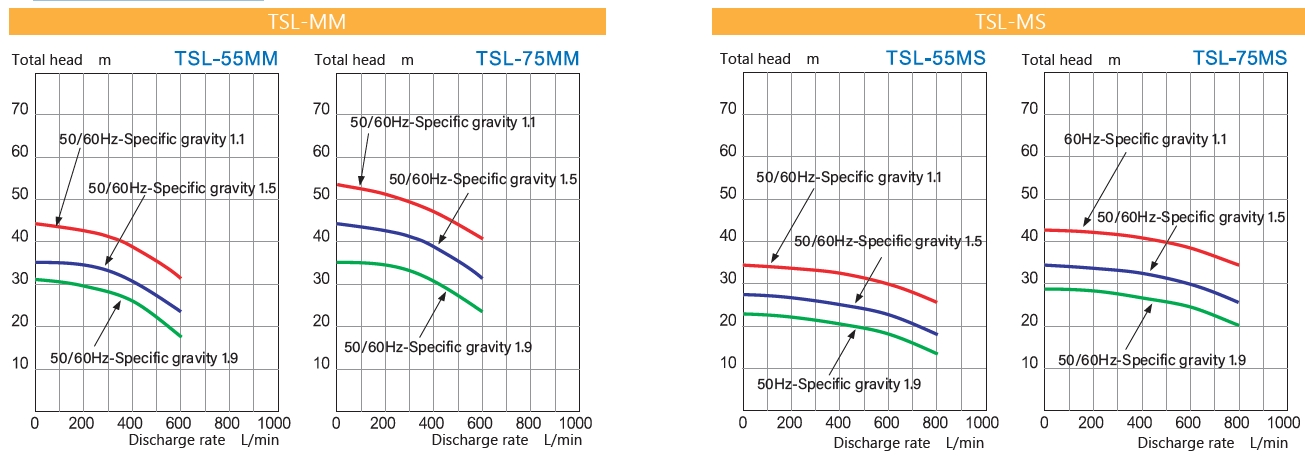

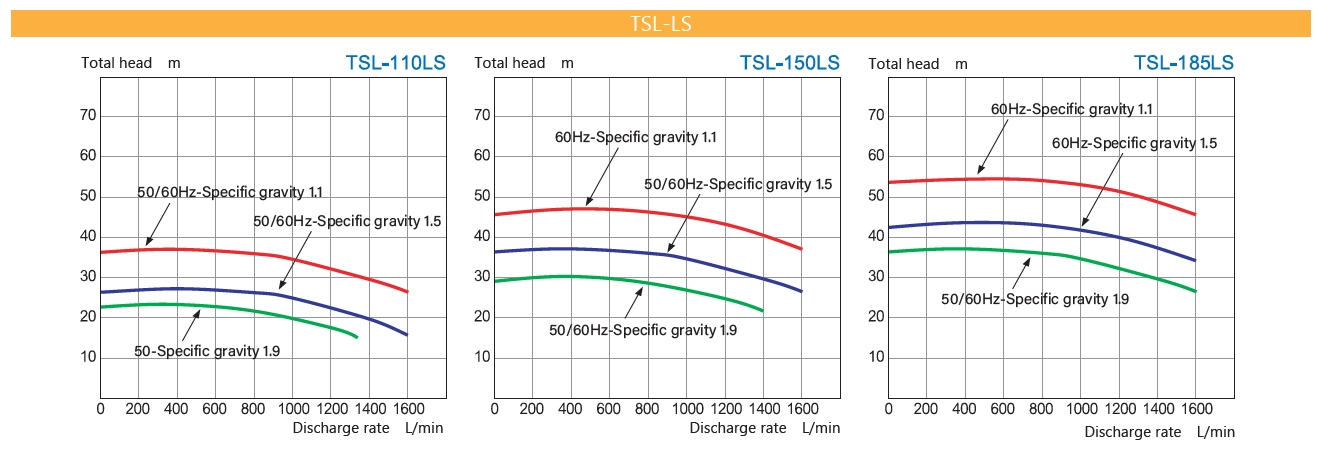

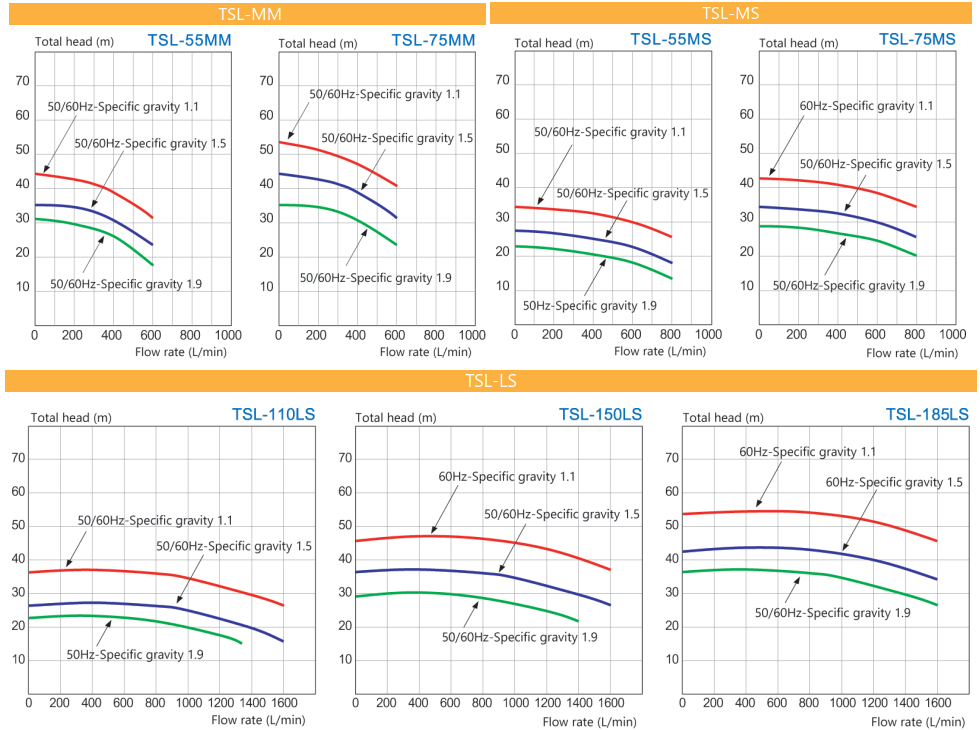

Performance Curve

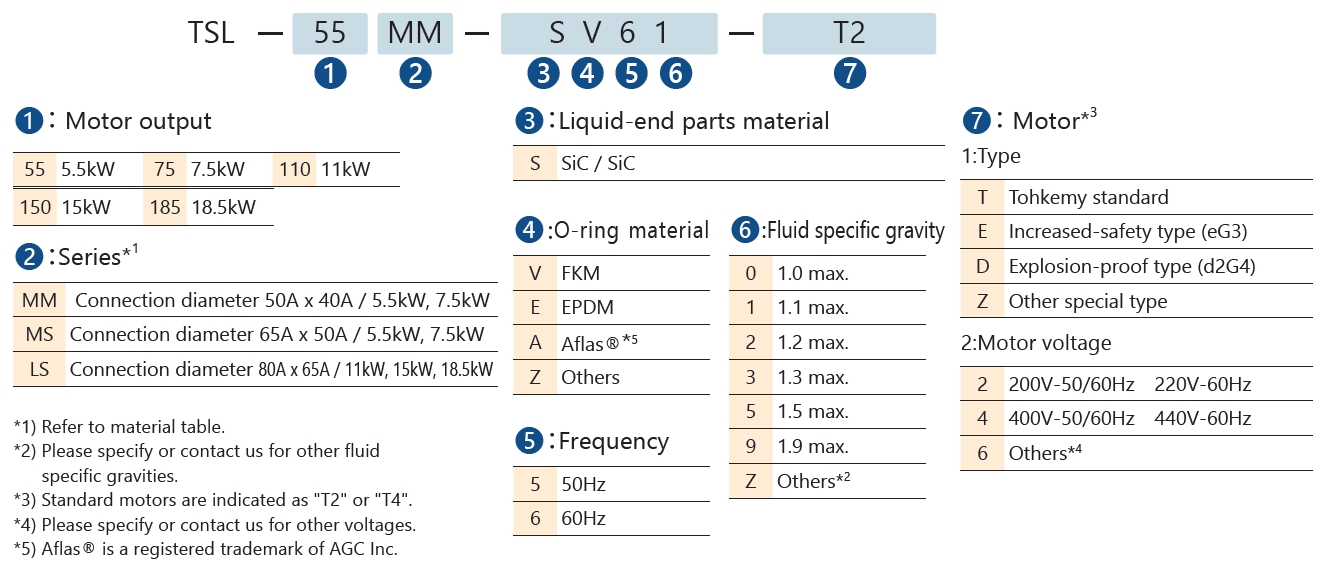

Model Code Explanation
| TSL | – | 55 | MM | – | S | V | 6 | 1 | – | T2 |
|---|---|---|---|---|---|---|---|---|---|---|
| [1] | [2] | [3] | [4] | [5] | [6] | [7] | ||||
| [1] Motor output | 55：5.5kW 75：7.5kW 110：11kW 150：15kW 185：18.5kW |
|
|---|---|---|
| [2] Series*1 | MM Connection diameter 50A x 40A / 5.5kW, 7.5kW MS Connection diameter 65A x 50A / 5.5kW, 7.5kW LS Connection diameter 80A x 65A / 11kW, 15kW, 18.5kW |
|
| [3] Liquid-end parts material | S：SiC / SiC | |
| [4] O-ring material | V：FKM E：EPDM A： Aflas®*5 Z： Others |
|
| [5] Frequency | 5：50Hz 6：60Hz |
|
| [6] Fluid specific gravity | 0：1.0 max. 1：1.1 max. 2：1.2 max. 3：1.3 max. 5：1.5 max. 9：1.9 max. Z：Others*2 |
|
| [7] Motor*3 | Type | T：Tohkemy standard E: Increased-safety explosion-proof (eG3) D: Pressure-resistant explosion-proof (d2G4) Z：Other special type |
| Motor voltage | 2：200V-50/60Hz 220V-60Hz 4：400V-50/60Hz 440V-60Hz 6：Others*4 |
|
*1) Refer to material table.
*2) Please specify or contact us for other fluid specific gravities.
*3) Standard motors are indicated as “T2” or “T4”.
*4) Please specify or contact us for other voltages.
*5) Aflas® is a registered trademark of AGC Inc.

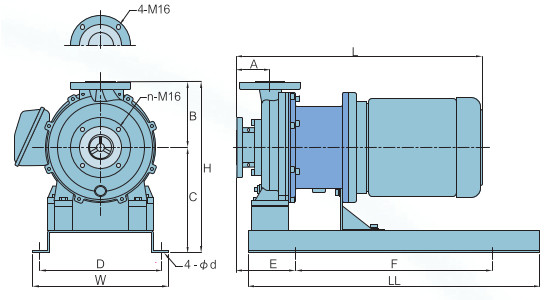

Dimensions
| model | A | B | C | D | E | F | H | L | LL | W | d | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSL-55/75MM | 80 | 180 | 280 | 320 | 150 | 540 | 460 | 700 | 800 | 360 | 18 | 4 |
| TSL-55/75MS | 80 | 160 | 252 | 320 | 150 | 540 | 412 | 707 | 800 | 360 | 18 | 4 |
| TSL-110/150LS | 100 | 180 | 300 | 350 | 190 | 600 | 480 | 919 | 900 | 390 | 20 | 8 |
| -185LS | 963 |
* The L dimension refers to the dimensions when our standard electric motor is installed.

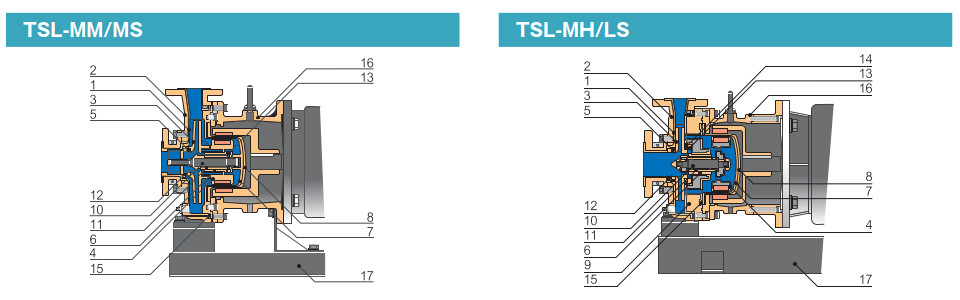

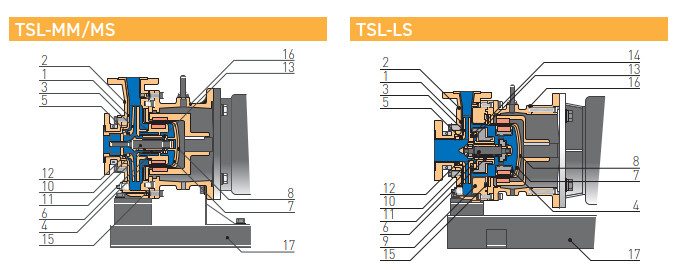

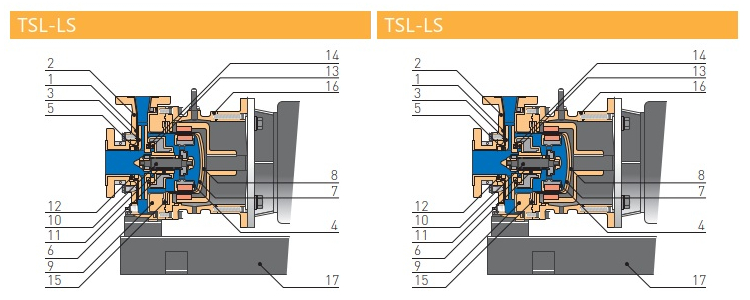

Liquid-end parts specifications
| No | Part name / Combination | TSL-MM・MS | TSL-LS |
|---|---|---|---|
| 1 | Front casing | Carbon fiber reinforced ETFE | |
| 2 | Front casing cover | FCD | |
| 3 | Impeller | Carbon fiber reinforced ETFE | |
| 4 | Magnet can | Natural ETFE | |
| 5 | Mouth ring | SiC | |
| 6 | Bearing | SiC | |
| 7 | Rear casing | Carbon fiber reinforced ETFE | |
| 8 | Rear casing cover | Specially-reinforced Resin | |
| 9 | Bearing plate | – | FC + Carbon Fiber Reinforced ETFE |
| 10 | Shaft | SiC | ETFE+SUS303 |
| 11 | Shaft sleeve | – | SiC |
| 12 | Front thrust | SiC | |
| 13 | Rear thrust | SiC | |
| 14 | Rear ring | – | SiC |
| 15 | O ring | FKM/EPDM/Aflas® | |
| 16 | Bracket | Cast iron | |
| 17 | Base | SUS304 | |
* Aflas® is a registered trademark of AGC Inc.
