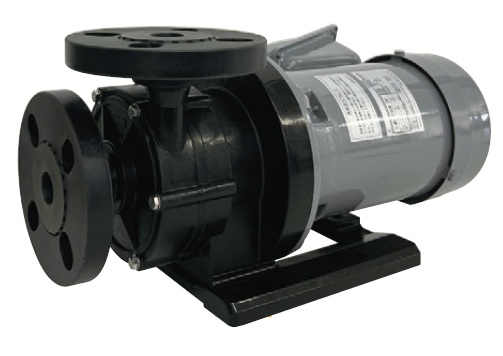

●Two kinds of liquid-end parts material, PP and ETFE in high corrosion resistance. Three more materials combinations selectable for sliding part according to the liquid used.
●Japan top runner motor outdoor type for standard-equipped electric motor, saving energy and space. (Standard efficiency for 0.2/0.4kW)
●Resin bracket, realizing light weight and high resistance to erosion. (FCD bracket for TSM-C type)
●TSM-C is durable with FCD cover.

Model	Connection diameter (suction x discharge)(A)	Head (m)	Discharge rate (L/min)	Motor output (kW)	Weight  (P ・E/C) (kg)
TSM-70P・E	20/25×20/25 Common flange	6/8	50	0.2	12
TSM-70PH・EH	20/25×20/25 Common flange	11	20/25	0.2	12
TSM-100P/E	25×25	12	50	0.4	13.5
TSM-110P/E	25×25	20	50	0.75	21
TSM-201P/E/C	40×40	8	130	0.4	13.5 / 22.7
TSM-211P/E/C	40×40	12	180	0.75	21 / 30.4
TSM-221P/E/C	50×40	16	260	1.5	29.5 / 44.7
TSM-231P/E/C	50×40	22	300	2.2	35 / 50.1
TSM-241P/E/C	50×40	32	300	3.7	43 / 62.3
TSM-251P/E/C	65×50	22	500	3.7	43 / 63.4
TSM-261P/E	65×50	14	480	2.2	36

* Indication of minimum discharge rate is approx. 10% of maximum discharge rate at 0m head.
* The flange corresponds to JIS10K.
* Discharge connection diameter is 25A for TSM-201C.

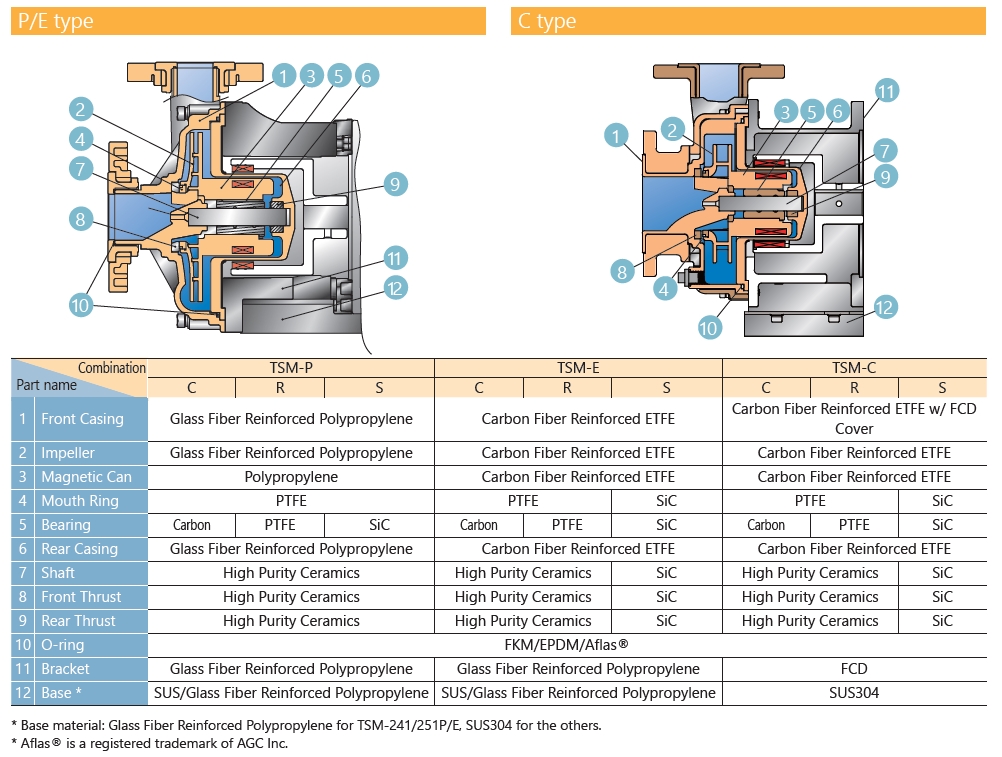

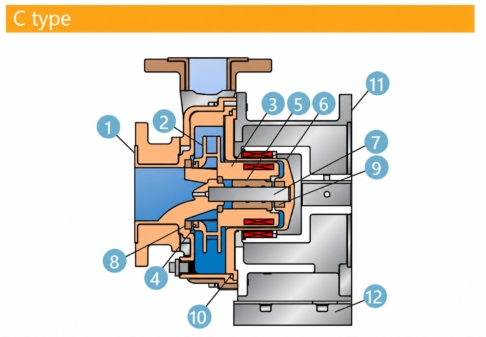

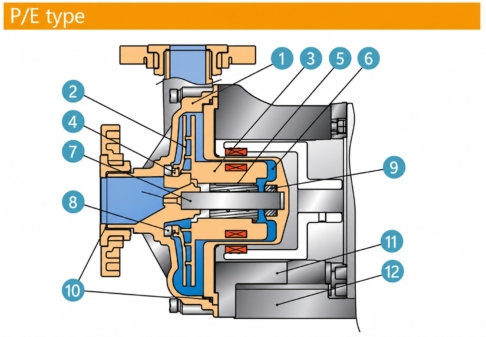

Liquid-end parts specifications

•
•

NO	Combination	TSM-P			TSM-E			TSM-C
	Part name	C	R	S	C	R	S	C	R	S
1	Front Casing	Glass Fiber Reinforced Polypropylene			Carbon Fiber Reinforced ETFE			Carbon Fiber Reinforced ETFE w/ FCD Cover
2	Impeller	Glass Fiber Reinforced Polypropylene			Carbon Fiber Reinforced ETFE			Carbon Fiber Reinforced ETFE
3	Magnetic Can	Polypropylene			Carbon Fiber Reinforced ETFE			Carbon Fiber Reinforced ETFE
4	Magnetic Can	PTFE		SiC	PTFE		SiC	PTFE		SiC
5	Bearing	Carbon	PTFE	SiC	Carbon	PTFE	SiC	Carbon	PTFE	SiC
6	Rear Casing	Glass Fiber Reinforced Polypropylene			Carbon Fiber Reinforced ETFE			Carbon Fiber Reinforced ETFE
7	Shaft	High Purity Ceramics			High Purity Ceramics		SiC	High Purity Ceramics		SiC
8	Front Thrust	High Purity Ceramics		SiC	High Purity Ceramics		SiC	High Purity Ceramics		SiC
9	Rear Thrust	High Purity Ceramics			High Purity Ceramics		Sic	High Purity Ceramics		SiC
10	O-ring	FKM/EPDM/Aflas®
11	Bracket	Glass Fiber Reinforced Polypropylene			Glass Fiber Reinforced Polypropylene			FCD
12	Base *	SUS/ Glass Fiber Reinforced Polypropylene			SUS/ Glass Fiber Reinforced Polypropylene			SUS304

* Base material: Glass Fiber Reinforced Polypropylene for TSM-70/70H/241/251P/E, SUS304 for other types.
* The TSM-70P/70PH models cannot be selected with the bearing designation ‘S’. If you want to choose an ‘S’ SiC bearing, the TSM-70E/EH model should be used.
* Aflas® is a registered trademark of AGC Inc.

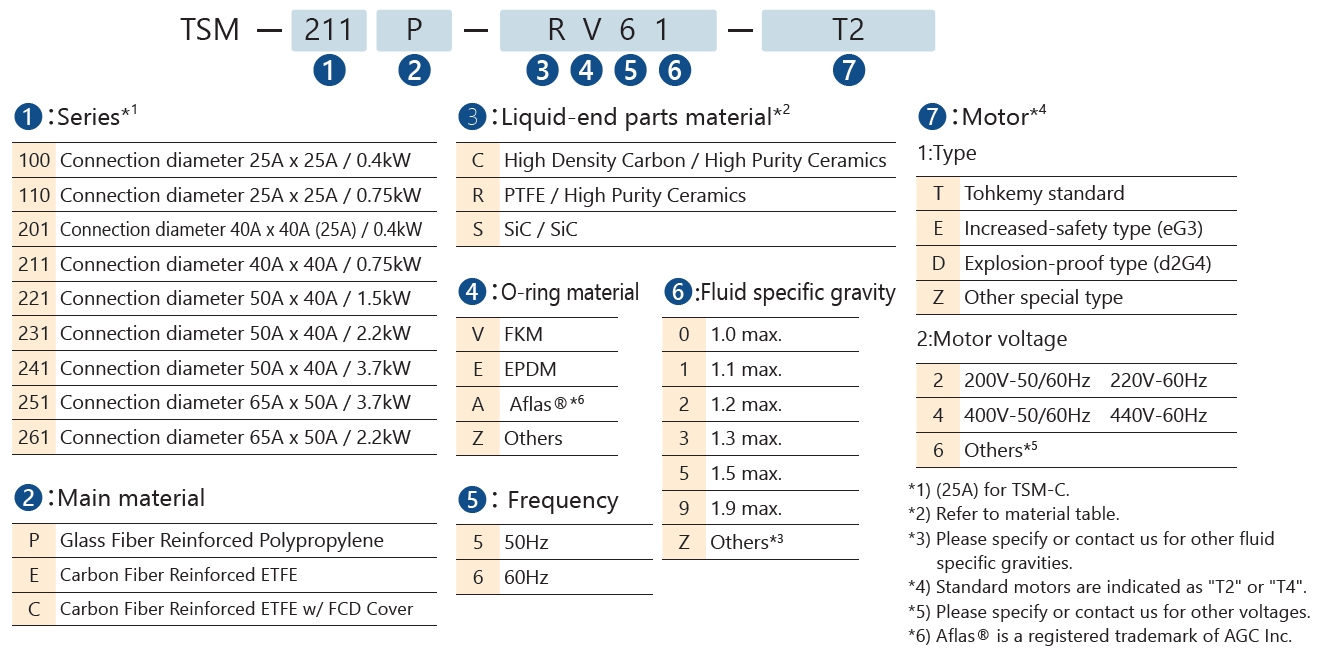

Model Code Explanation

TSM	–	211	P	–	R	V	6	1	–	T2
		[1]	[2]		[3]	[4]	[5]	[6]		[7]

[1] Series*1		70：Connection diameter 20/25A × 20/25A / 0.2kW *1 100：Connection diameter 25A × 25A / 0.4kW 110：Connection diameter 25A × 25A / 0.75kW 201：Connection diameter 40A × 40A (25A) / 0.4kW *2 211：Connection diameter 40A × 40A / 0.75kW 221：Connection diameter 50A × 40A / 1.5kW 231：Connection diameter 50A × 40A / 2.2kW 241：Connection diameter 50A × 40A / 3.7kW 251：Connection diameter 65A × 50A / 3.7kW 261：Connection diameter 65A × 50A / 2.2kW
[2] Main material		P：Glass Fiber Reinforced Polypropylene PH：Ditto, TSM-70 Limited High Head Specification E：Carbon Fiber Reinforced ETFE EH：Ditto, TSM-70 Limited High Head Specification C：Carbon Fiber Reinforced ETFE w/ FCD Cover
[3] Liquid-end parts material*3		C：High Density Carbon / High Purity Ceramics R：PTFE / High Purity Ceramics S：SiC / SiC *4
[4] O-ring material		V：FKM E：EPDM A：Aflas® *5 Z：Others
[5] Frequency		5：50Hz 6：60Hz
[6] Fluid specific gravity		0：1.0 max. 1：1.1 max. 2：1.2 max. 3：1.3 max. 5：1.5 max. 9：1.9 max. Z：Others *6
[7] Motor *7	Type	T：Tohkemy standard E: Increased-safety explosion-proof (eG3)*8 D: Pressure-resustant explosion-proof (d2G4)*8 Z：Other special type
	Motor voltage	2：200V-50/60Hz 220V-60Hz 4：400V-50/60Hz 440V-60Hz 6：Others *9

*1) 20/25A is a shared flange for 20A and 25A
*2) (25A) for TSM-C.
*3) Refer to the material table. For TSM-70/70H is only C or S.
*4) The TSM-70/70H is only compatible with material code ② “E/EH”.
*5) Aflas® is a registered trademark of AGC Inc.
*6) Please specify or consult with us regarding any other fluid specific gravity.
*7) Standard motors are indicated as “T2” or “T4”.
*8) When using a TSM-70/70H type motor with increased-safety explosion-proof or pressure-resistant explosion-proof, it will be 0.4 kW. The TSM-231 increased-safety explosion-proof motor cannot be installed.
*9) Please specify or contact us for other voltages.

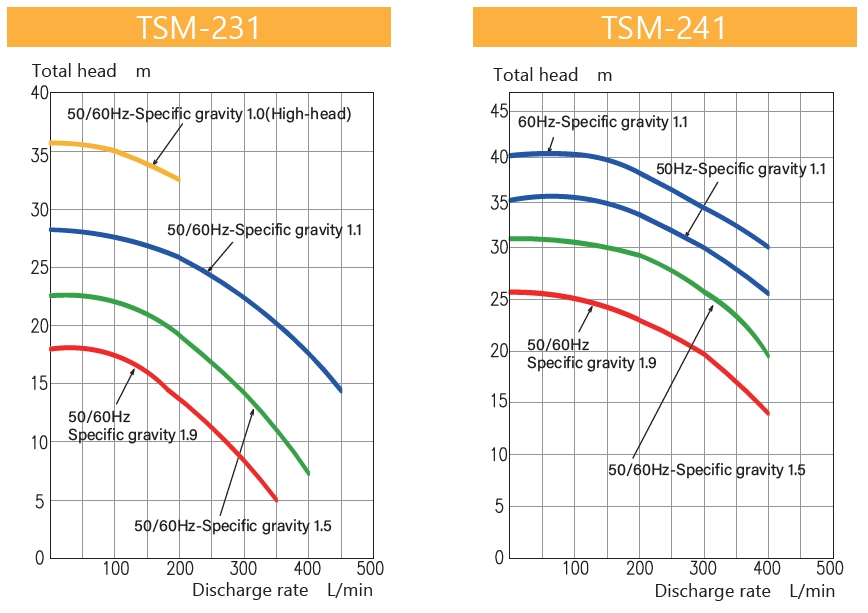

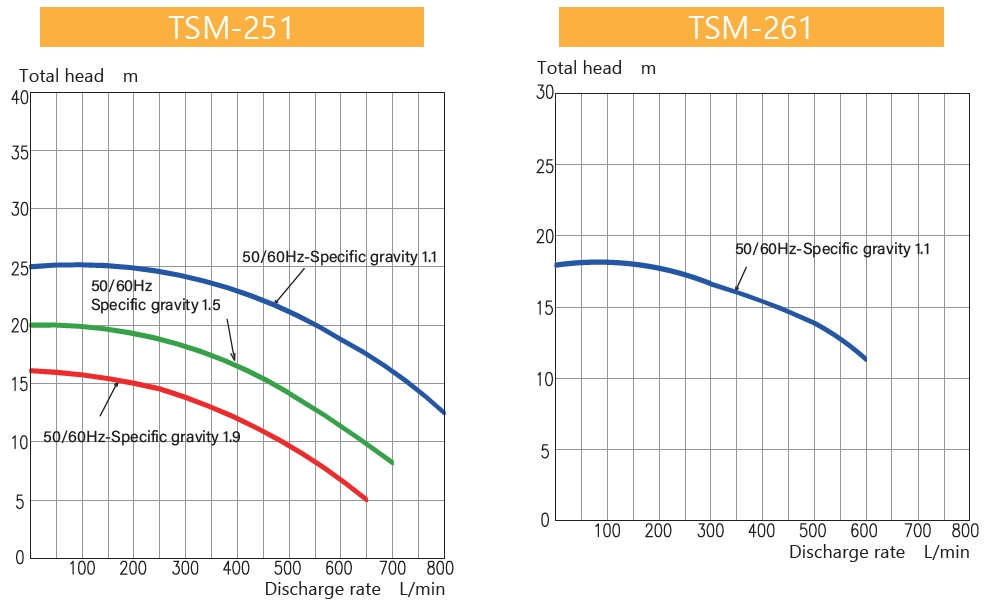

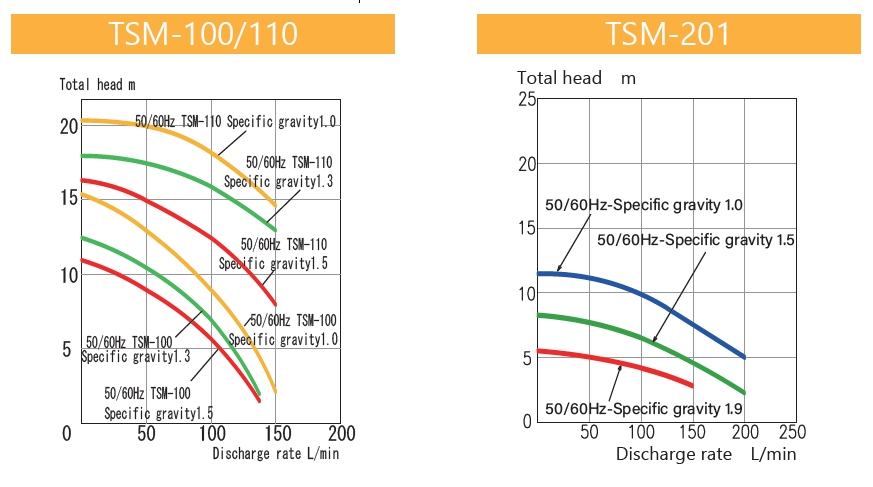

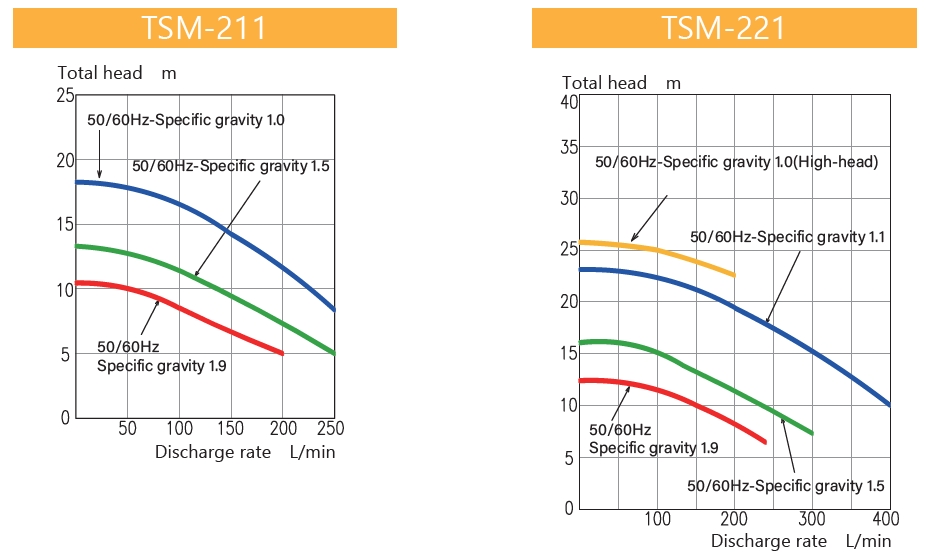

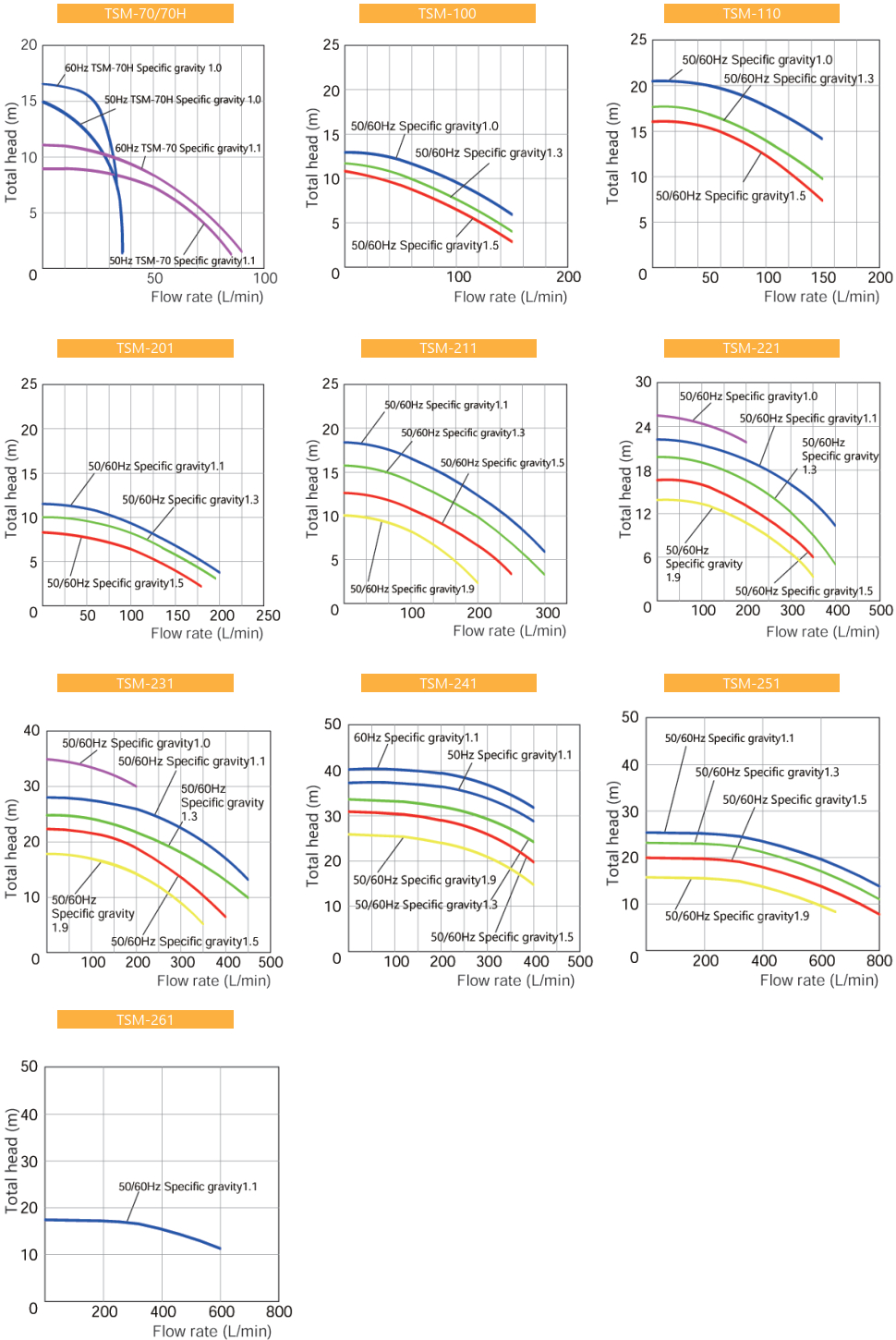

Performance Curve

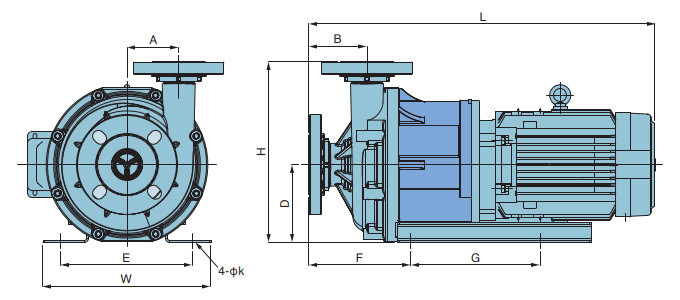

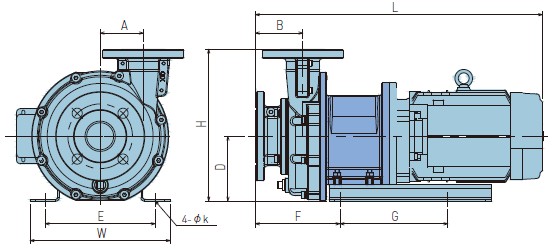

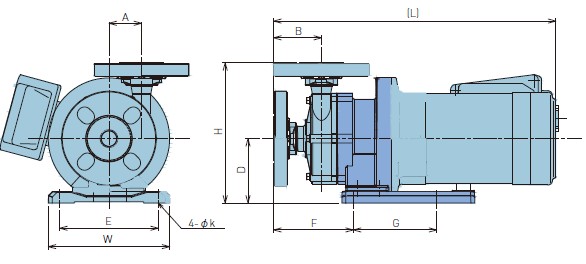

Dimentions

Model	H	L	W	A	B	D	E	F	G	K
TSM-70P/E	185	372	160	43	63	85	130	105	110	10
TSM-70PH/EH	192	357			50			88

※The L dimension refers to the dimensions when our standard electric motor is installed.

Model	H	L	W	A	B	D	E	F	G	K
TSM-100P/E	255	463	160	65	90	115	130	163	130	12
TSM-110P/E		485						171
TSM-201P/E	225	458	140	54	87	95	110	150	98
TSM-211P/E	257	500	160	72	105	115	130	187	130
TSM-221P/E	280	535	260	80	90	120	204	159	200	14
TSM-231P/E		558
TSM-241P/E	322	577	250			162	220	147	300
TSM-251P/E	331	584			92			153
TSM-261P/E		572

* Dimension L is for Tohkemy standard motor installed.

Model	H	L	W	A	B	D	E	F	G	K
TSM-201C	225	458	140	54	87	95	110	150	98	12
TSM-211C	257	500	160	72	105	115	130	187	130
TSM-221C	280	535	260	80	90	120	204	159	200	14
TSM-231C		558
TSM-241C	322	577	250			162	220	147	300
TSM-251C	331	584			92			153

* Dimension L is for Tohkemy standard motor installed.

Corresponding specific gravity

Model	50Hz	60Hz
TSM-70P/E	〜1.3	〜1.3
TSM-70PH/EH	〜1.3	〜1.3
TSM-100P/E	〜1.5	〜1.5
TSM-110P/E	〜1.9	〜1.9
TSM-201P/E/C	〜1.5	〜1.5
TSM-211P/E/C	〜1.9	〜1.9
TSM-221P/E/C	〜1.9	〜1.9
TSM-231P/E/C	〜1.9	〜1.9
TSM-241P/E/C	〜1.9	〜1.9
TSM-251P/E/C	〜1.9	〜1.9
TSM-261P/E	〜1.3	〜1.3
