TSN

✔ Faithful to the foundation, trustworthy and long-life design.
✔ Various line-ups for various needs.

Features

● Faithful to the foundation, trustworthy and long-life design.

● Various line-ups for various needs.



Specification

Model code explanation

TSN – 6 P L – H – 3 0 – 1 – P
[1] [2] [3] [4] [5] [6] [7] [8]
[1] Series 2-8
[2] Material Indication P：Glass fiber reinforced polypropylene
V：Carbon fiber reinforced PVDF(except for 2P)
[3] Specification Indication NIL : standard
H : Higher head and_ smaller discharge rate (only for 4PH to 7PH)
L : Lower head and_ larger discharge rate (only for 6PL)
[4] Connection H：Hose
T：Thread / Union
F：Flange (only for 7P/V and_ 8P/V as option)
[5] Phase 1：Single-phase
3：Three-phase
[6] Frequency 0：Common to 50/60Hz
5 : Exclusive to 50Hz
[7] Voltage 1：100V
2：200V
9：Other voltages
[8] 100V outlet plug Nil : Without
P : With

* For indoor use.

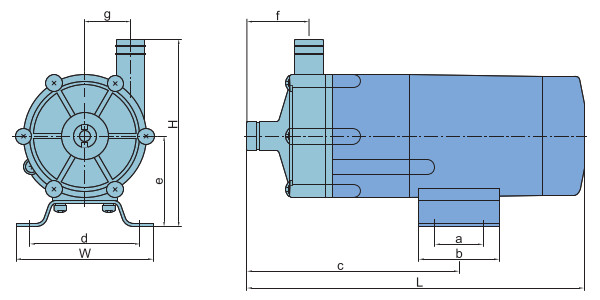

External dimensions

(unit：mm)
Model W H L a b c ｄ e f g
2P-H 74 83 130 – 30 74 60 36 31 17
3P-H･3V-H 95 115 183 – 50 120 68 56 42 23
3P-T･3V-T 95 115 180 – 50 117 68 56 39 23
4P-H･4V-H 85 116 209 30 50 132 68 56 39 29
4P-T･4V-T 85 117 205 30 50 127 68 56 34 29
4PH-H/T 85 126 211 30 50 134 68 56 40 40
5P-H/T･5V-H/T 120 130 250 40 64 167 100 60 48 30
5PH-H/T 120 134 235 40 64 151 100 64 40 40
6P-H/T･6V-H/T 120 130 250 42 64 170 100 60 48 30
6PH-H/T 120 151 237 40 64 157 100 60 39 45
6PL-H/T 120 162 275 45 75 187 100 66 57 43
7P-H･7V-T 142 161 267 70 96 177 108 66 56 44
7P-T･7V-HT 142 156 264 70 96 174 108 66 53 44
7PH-H/T･7VH-H/T 142 166 252 70 96 163 108 66 41 48
8P-H/T･8V-H/T 156 174 322 70 100 196 110 74 66 44

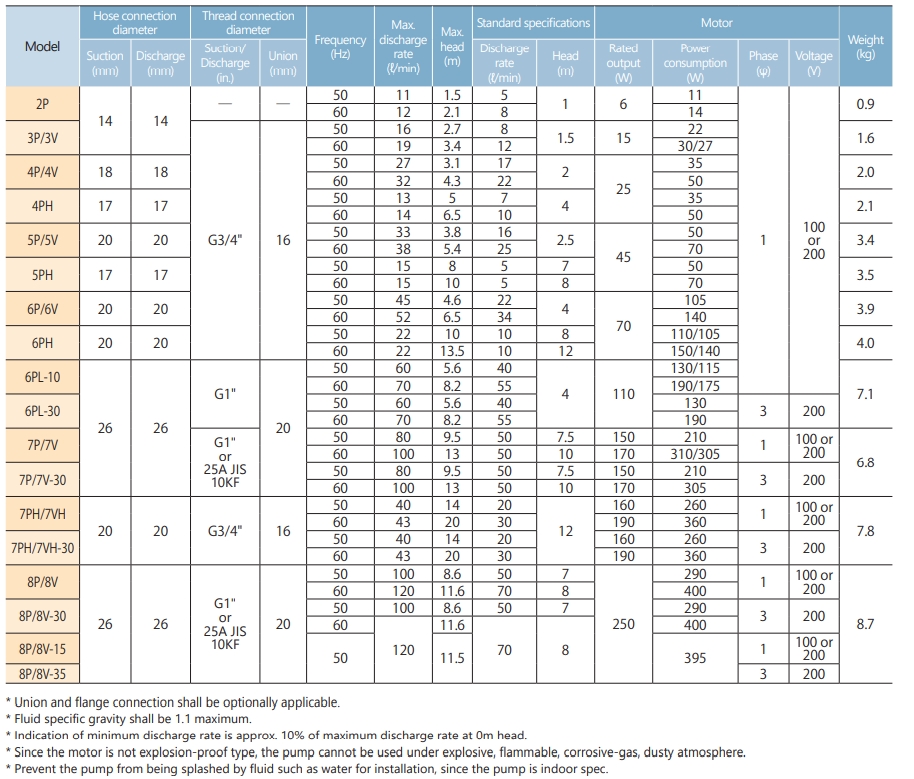

Standard specifications

Model Hose connection
diameter		 Thread connection
diameter		 Frequency
y(Hz)		 Max.
discharge
rate
(l/min)		 Max.head
(m)		 Standard
specifications		 Motor Weight
(kg)
Suction
(mm)		 Discharge
(mm)		 Suction/
Discharge
(in.)		 Union
(mm)		 Discharge rate
(l/min)		 Head(m) Reted output
(W)		 Power consumption
(W)		 Phase
(φ)		 Voltage
(V)
2P 12 12 − − 50 11 1.5 5 1 6 11 1 100 _or
200		 0.9
60 12 2.1 8 14
3P/3V G3/4″ 16 50 16 2.7 8 1.5 15 22 1.6
60 19 3.4 12 30/27
4P/4V 15 15 50 27 3.1 17 2 25 35 2.0
60 32 4.3 22 50
4PH 15 15 50 13 5 7 4 35 2.1
60 14 6.5 10 50
5P/5V 19 19 50 33 3.8 16 2.5 45 50 3.4
60 38 5.4 25 70
5PH 15 15 50 15 8 5 7 50 3.5
60 15 10 5 8 70
6P/6V 19 19 50 45 4.6 22 4 70 110/105 3.9
60 52 6.5 34 150/140
6PH 19 19 50 22 10 10 8 110/105 4.0
60 22 13.5 10 12 150/140
6PL-10 25 25 G1″ 20 50 60 5.6 40 4 110 130/115 7.1
60 70 8.2 55 190/175
6PL-30 50 60 5.6 40 130 3 200
60 70 8.2 55 190
7P/7V G1″ _or
25A JIS
10KF		 50 80 9.5 50 7.5 150 210 1 100 _or
200		 6.8
60 100 13 50 10 170 310/305
7P/7V-30 50 80 9.5 50 7.5 150 210 3 200
60 100 13 50 10 170 305
7PH/7VH 19 19 G3/4″ 16 50 40 14 20 12 160 260 1 100 _or
200		 7.8
50 43 20 30 190 360
7PH/7VH
-30		 60 40 14 20 160 260 3 200
50 43 20 30 190 360
8P/8V 25 25 G1″ _or
25A JIS
10KF		 20 50 100 8.6 50 7 250 290 1 100 _or
200		 8.7
60 120 11.6 70 8 400
8P/8V-30 50 100 8.6 50 7 290 3 200
60 120 11.6 70 8 400
8P/8V-15 50 120 11.5 70 8 395 1 100 _or
200
8P/8V-35 3 200

* Union _and flange connection shall be optionally applicable.
* Fluid specific gravity shall be 1.1 maximum.
* Indication of minimum discharge rate is approx. 10% of maximum discharge rate at 0m head.
* Since the motor is not explosion-proof type, the pump cannot be used under explosive, flammable, corrosive-gas, dusty atmosphere.
* Prevent the pump from being splashed by fluid such as water for installation, since the pump is indoor spec.

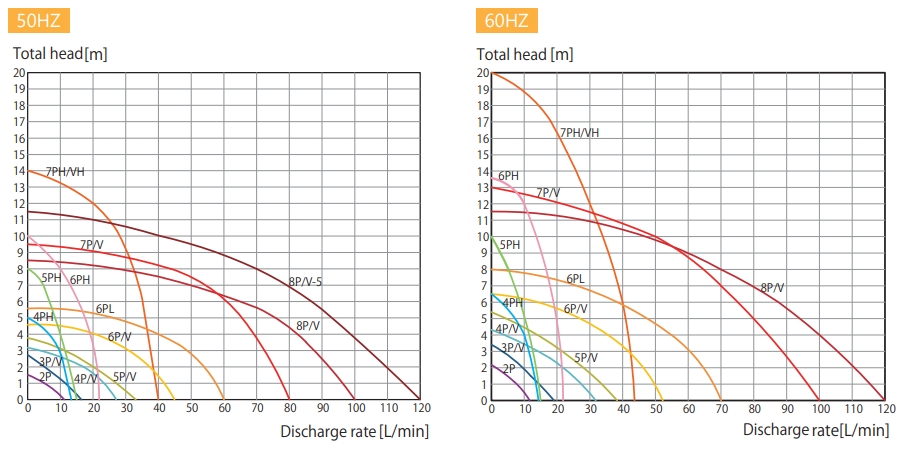

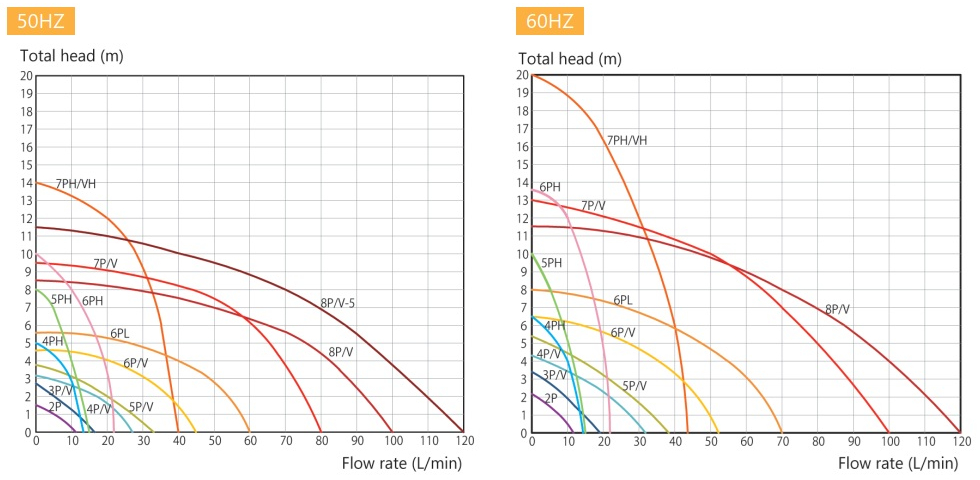

Performance curve

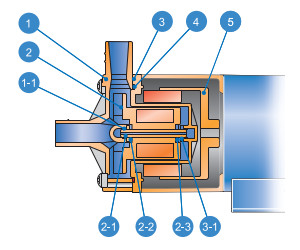

Liquid-end part material

Number Part name Material
TSN-P type TSN-V type
1 Front casing Glass fiber reinforced polypropylene Carbon fiber reinforced PVDF
1-1 Front bearing PTFE
2 Impeller (Magnet can) Glass fiber reinforced polypropylene Carbon fiber reinforced PVDF
2-1 Spindle Alumina ceramics
2-2 Front thrust Alumina ceramics
2-3 Rear thrust Alumina ceramics
3 Rear casing Glass fiber reinforced polypropylene Carbon fiber reinforced PVDF
3-1 Rear bearing PTFE
4 O-ring FKM / EPDM
5 Drive magnet –
