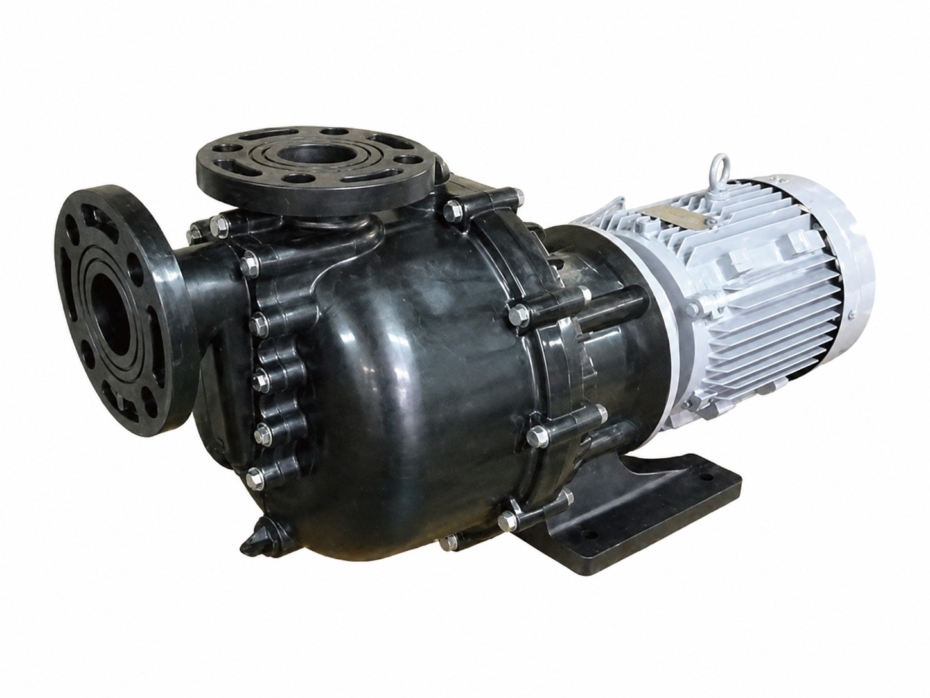

●General-purpose self-priming magnetic pumps, durable for abnormal operation.
●GFR-PP (Glass Fiber Reinforced Polypropylene) and PTFE for liquid-end parts.
●Resin bracket realizing light weight and high resistance to erosion compared with former model.

This pump is ideal for self-priming operations such as pumping from drainage pits or the top of tanks, and siphoning from tanker trucks.

Model	Connection diameter (Suction x Discharge) (A)	Head (m)	Discharge rate (L/min)	Motor output (kW)	Weight (kg)
TSP-21P	40×40	10	150	0.75	25
TSP-22P	40×40	14	200	1.5	35
TSP-23P	50×50	18	200	2.2	40



* Indication of minimum discharge rate is approx. 10% of maximum discharge rate at 0m head.

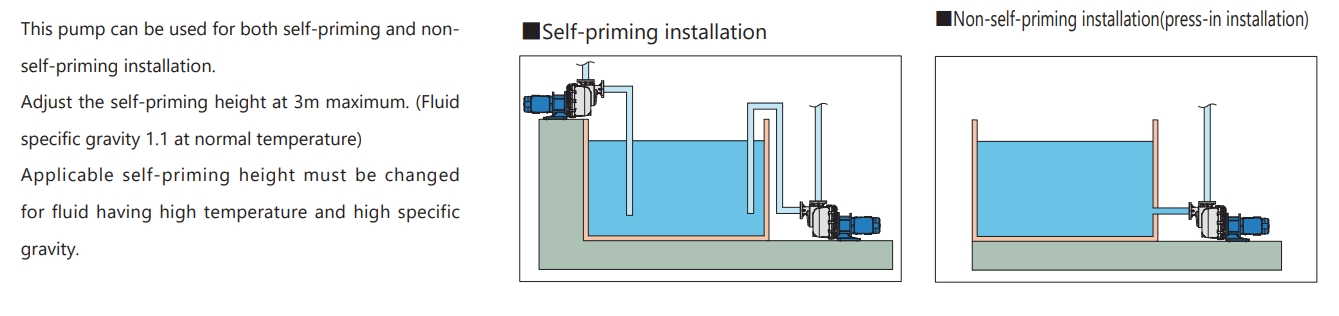

* Adjust the self-priming height at 3m maximum. (Fluid specific gravity 1.1 at normal temperature)
* In the case of high-temperature liquids or high-specific-gravity liquids, the self-priming height will vary.

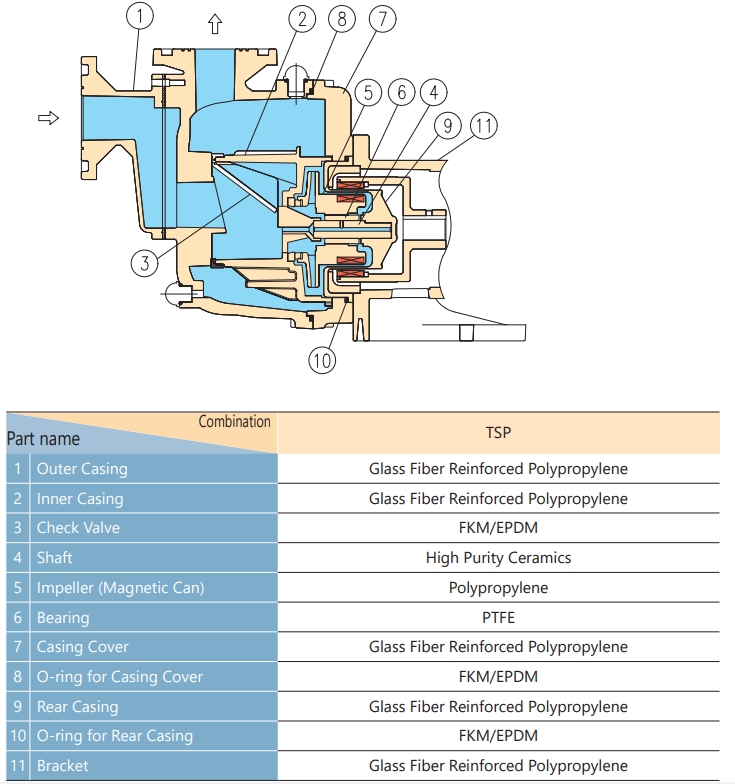

Liquid-end parts specifications

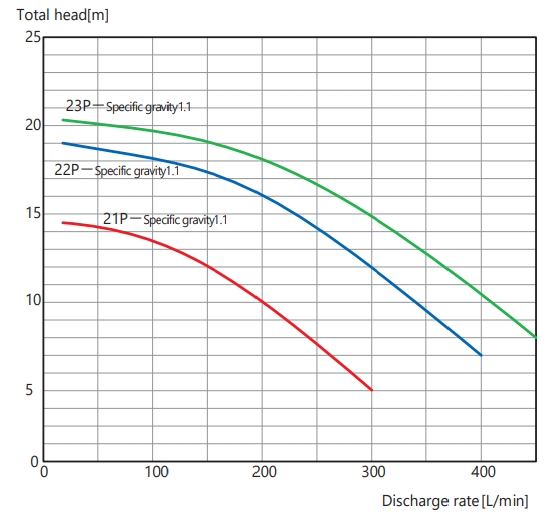

Performance Curve

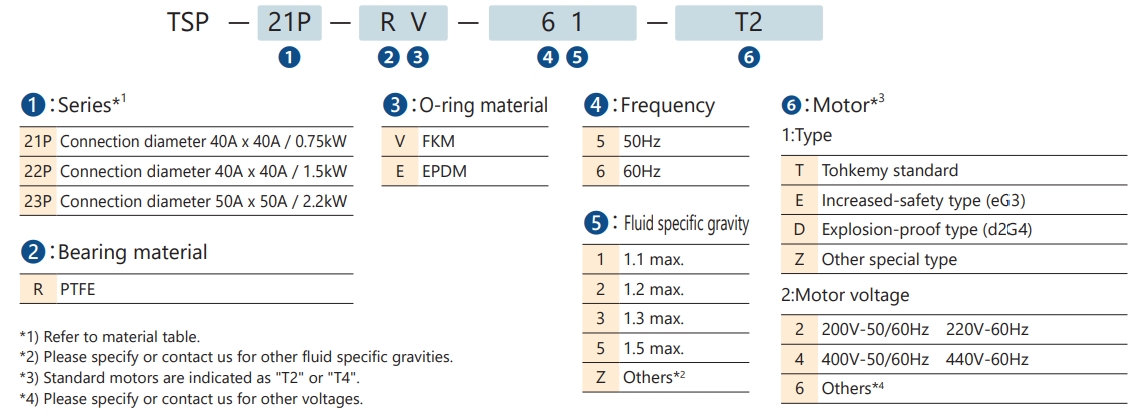

Model Code Explanation

TSP	–	21P	–	R	V	6	1	–	T2
		[1]		[2]	[3]	[4]	[5]		[6]

[1]Series*1		21P：Connection diameter 40A x 40A / 0.75kW 22P：Connection diameter 40A x 40A / 1.5kW 23P：Connection diameter 50A x 50A / 2.2kW
[2] Bearing material		R：PTFE
[3] O-ring material		V：FKM E：EPDM
[4] Frequency		5：50Hz 6：60Hz
[5] Fluid specific gravity		1：1.1 max. 2：1.2 max. 3：1.3 max. 5：1.5 max. Z：Others*2
[6] Motor*3	1:Type	T：Tohkemy standard E: Increased-safety explosion-proof (eG3) D: Pressure-resistant explosion-proof (d2G4) Z：Other special type
	2:Motor voltage	2：200V-50/60Hz　220V-60Hz 4：400V-50/60Hz　440V-60Hz 6：Others*4

*1) Refer to material table.
*2) Please specify _or contact us for other fluid specific gravities.
*3) Standard motors are indicated as “T2” _or “T4”.
*4) Please specify _or contact us for other voltages.

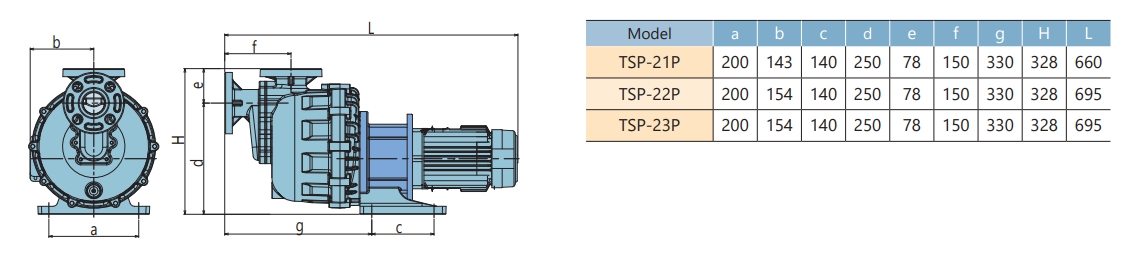

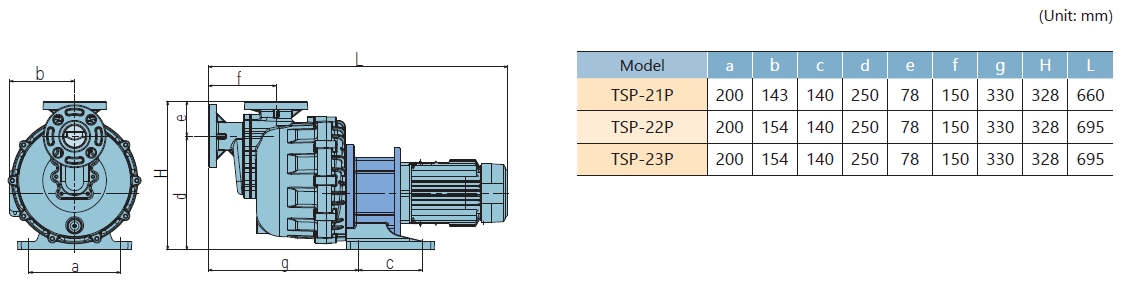

Dimensions
