Granular Filtration System
Our lineup includes sand filtration towers for turbidity and suspended solids removal, iron and manganese removal filtration towers, color removal filtration towers, activated carbon adsorption towers, and ion exchange resin towers.
We provide one-stop service tailored to your water quality, from filter media selection to filtration system design, manufacturing, installation, construction, and commissioning.

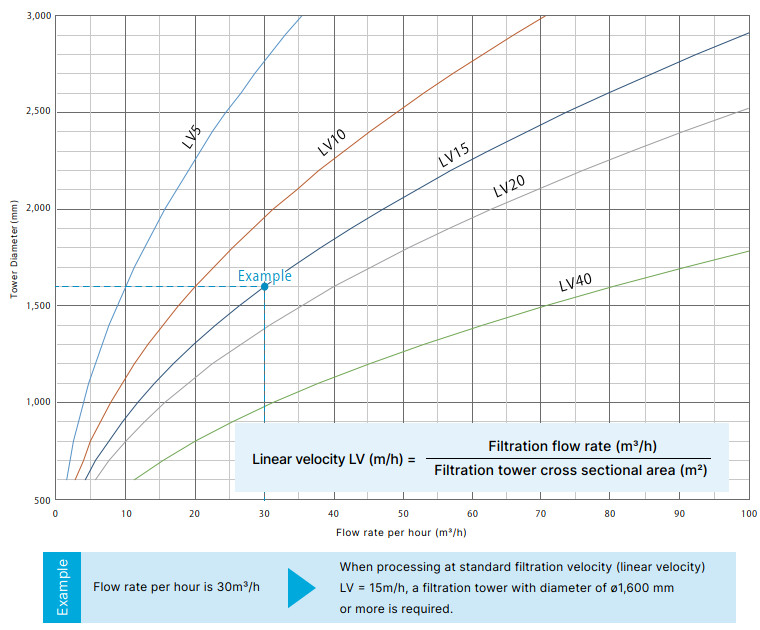

Relationship Between Filtration Tower Size and Flow Rate
●Lineup includes tower diameters from φ600mm to φ3,000mm(other sizes are available on special request).
●It is recommended to calculate the filtration time per day as 22 hours or less in consideration of washing time.

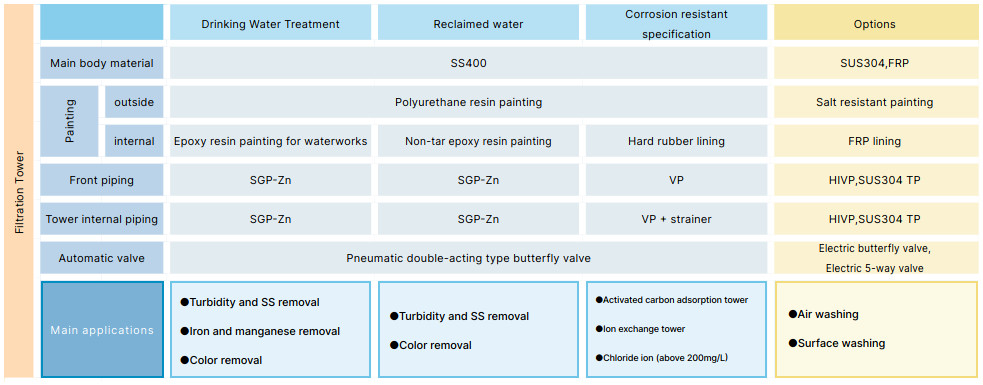

Specifications
■We will propose the optimal filter tower specifications based on the filter media, water quality, surrounding environment, installation location, and other factors.
■For chloride ion concentrations of 200 mg/L or higher, we recommend corrosion-resistant specifications.
■When use pneumatic double-acting type butterfly valve, an instrument air (compressor) is required.
●SS400: steel plates, steel strips, structural steel, flat steel and steel bars
●SUS304: Austenitic stainless steel
●SGP-Zn: Carbon steel pipe for piping (zinc plated)
●VP…Rigid polyvinyl chloride (PVC) pipes
●HIVP…Impact-resistant rigid PVC pipes
●SUS304 TP…Stainless steel pipes

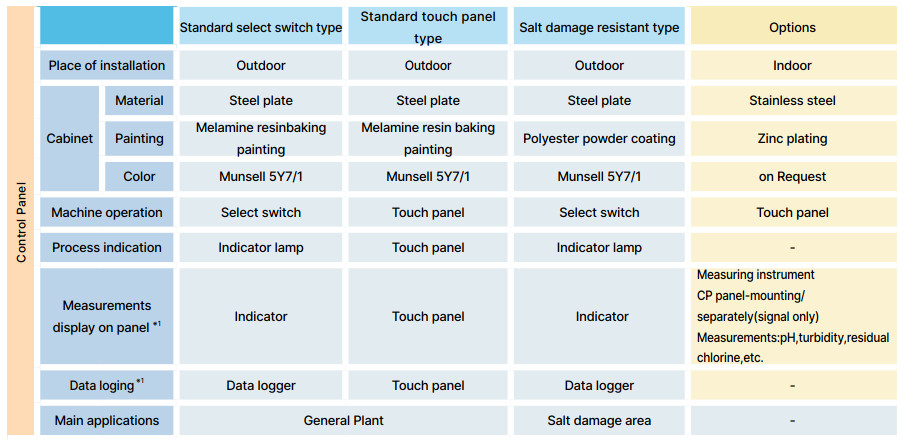

■Remote monitoring of operational status, such as each measured value and process, is also available (optional).
■We can accommodate your specifications. Please contact our sales department.
*1: Please specify the number of measured value (4-20mADC) inputs.

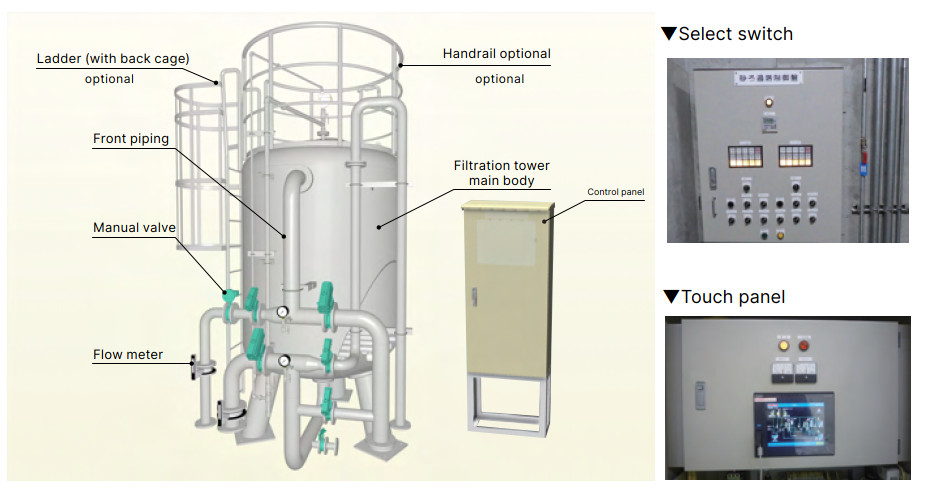

Image of Exterior View
Granular Filtration System Series
Color (Humic substances) Removal
Activated Carbon Adsorption Towers
Ion Exchange Resin Towers
Fluoride Ion Removal (Acticite F)
